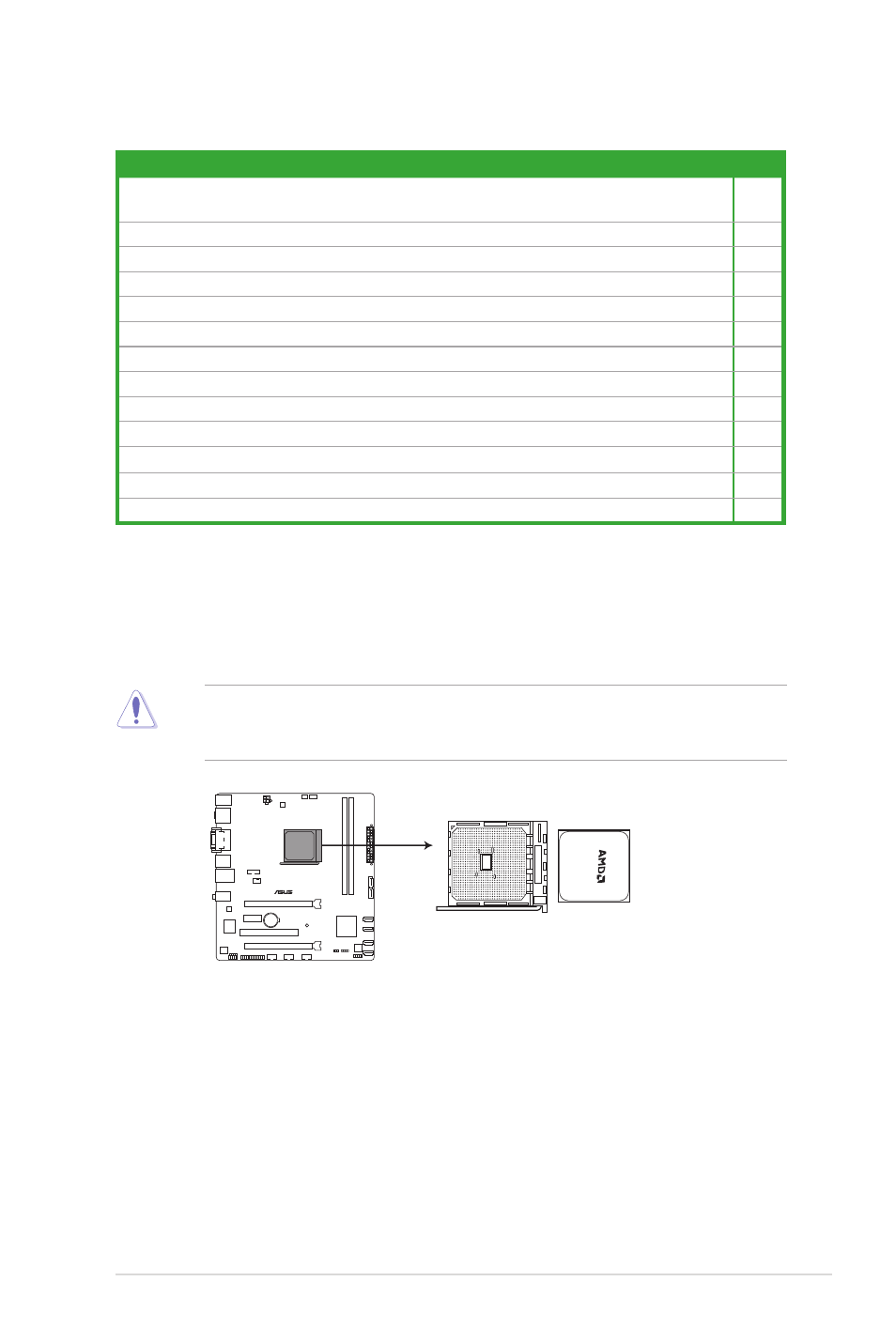

1.4 Accelerated Processing Unit (APU)
This motherboard comes with an FM2 socket designed for AMD ® A-series accelerated
processors with AMD ® Radeon™ HD 7000 series graphics.
Ensure that you use a APU designed for the FM2 socket. The APU fits in only one correct
orientation. DO NOT force the APU into the socket to prevent bending the pins and
damaging the APU!
1.3.4 Layout contents
Connectors/Jumpers/Slots/LED Page
1. Power, CPU, and chassis fan connectors (3-pin PWR_FAN, 4-pin CPU_FAN, and 4-pin
CHA_FAN)
1-23
2. ATX power connectors (24-pin EATXPWR, 4-pin ATX12V) 1-24
3. AMD FM2 socket 1-7
4. DDR3 DIMM slots 1-11
5. SATA 3.0Gb/s connectors (7-pin SATA3G_1~6) 1-25
6. System panel connector (10-1 pin F_PANEL) 1-26
7. Speaker connector (4-pin SPEAKER) 1-26
8. Clear RTC RAM (3-pin CLRTC) 1-20
9. Standby power LED (SB_PWR) 1-4
10. USB 2.0 connectors (10-1 pin USB56, USB78, USB910) 1-28
11. LPT connector (26-1 pin LPT) 1-28
12. Front panel audio connector (10-1 pin AAFP) 1-27
13. Digital audio connector (4-1 pin SPDIF_OUT) 1-27
F2A55-M LE
F2A55-M LE CPU socket FM2
ASUS F2A55-M LE 1-7
