ASUS P5G41-M 1-31
10. Parallel port connector (26-1 pin LPT)
This connector is for a parallel port. Connect the parallel port module cable to this
connector, then install the module to a slot opening at the back of the system chassis.
P5G41-M

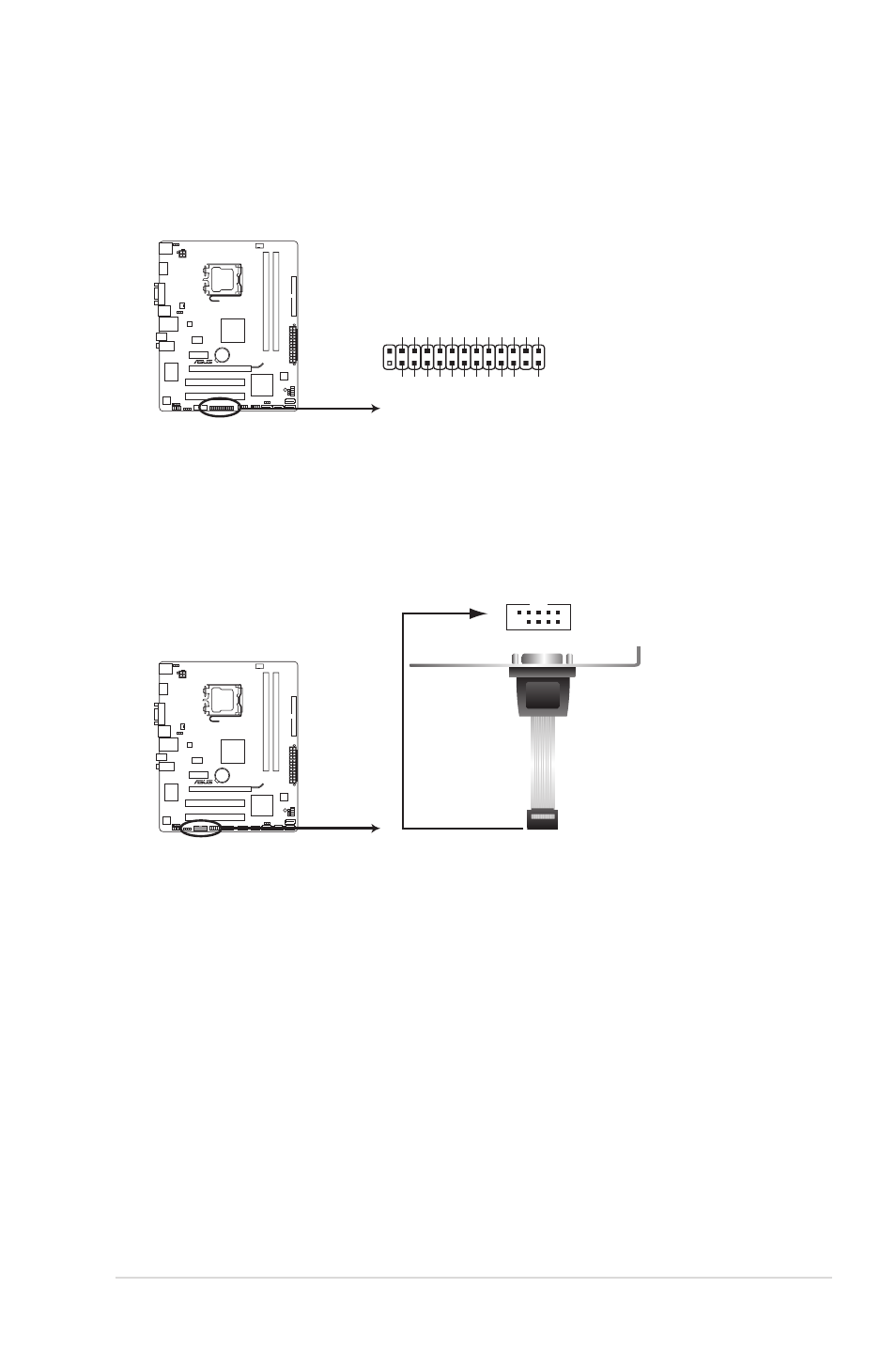

P5G41-M Parallel Port Connector
PIN 1
LPT
SLCT PE BUSY ACK# PD
7
PD
6
PD
5
PD
4
PD
3
PD
2
PD
1
PD
0
STB#
GN
D
GN
D
GN
D
GN
D
GN
D
GN
D
GN
D
GN
D
SLIN
#
INIT
#
ERR#
AF
D
11. Serial port connector (10-1 pin COM)
This connector is for a serial (COM) port. Connect the serial port module cable to this
connector, then install the module to a slot opening at the back of the system chassis.
P5G41-M
P5G41-M Serial port (COM1) connector
PIN 1
COM1
