3 installing a hard disk drive – Asus V4-M3N8200 User Manual
Page 35

2-17
ASUS V4-M3N8200

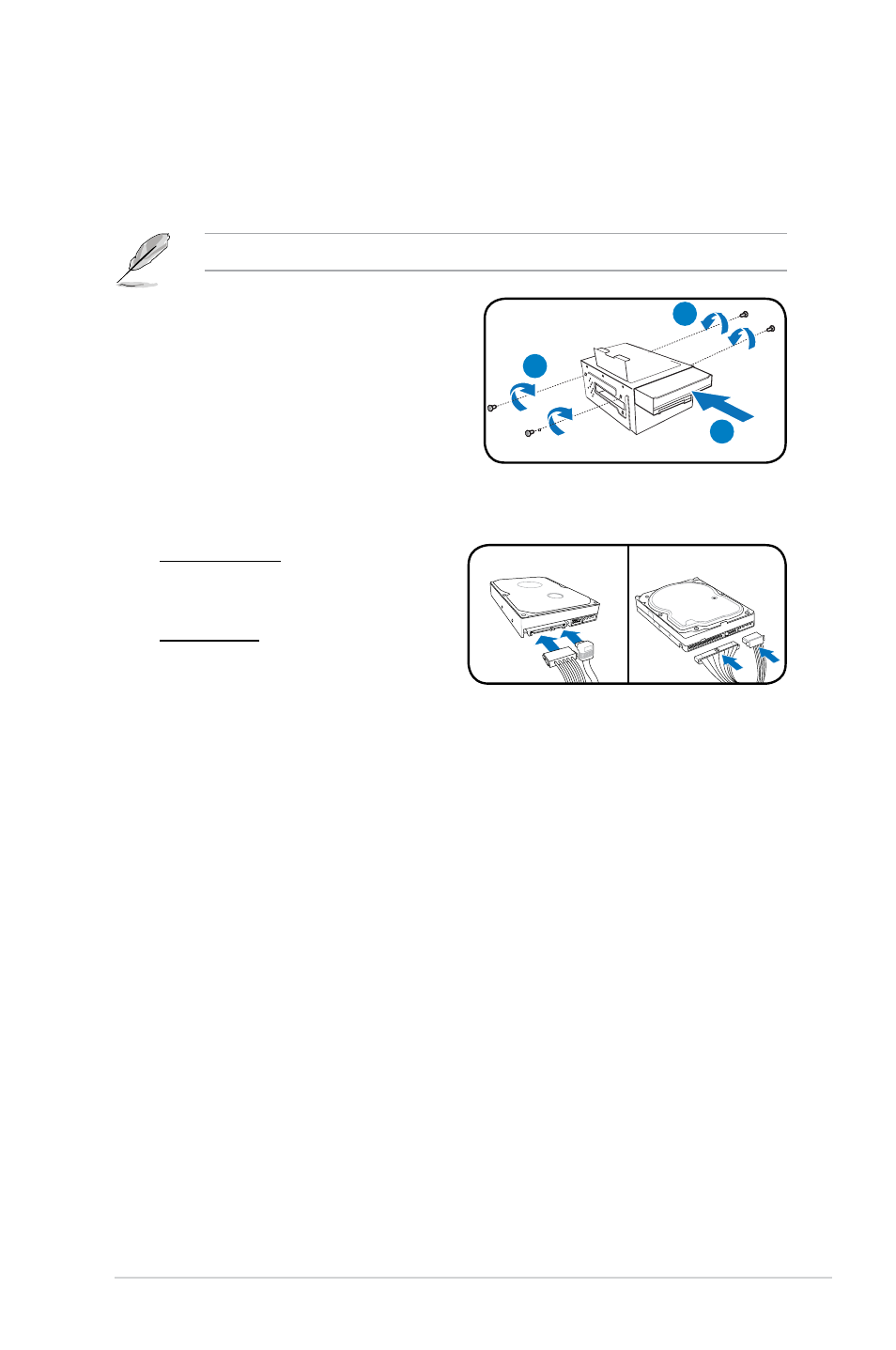

2.7.3
Installing a hard disk drive
1. Remove the 3.5-inch hard drive holder out of the chassis.
2
3
3
2. Insert the hard disk drive to the 3.5-
inch hard drive holder, then carefully
push the drive until its screw holes
align with the holes on the holder.
3. Secure the hard disk drive with two
screws on both sides of the bay.
4. Replace the hard drive holder to the
chassis and secure the screws.
The 3.5-inch hard drive holder is optional.
For SATA HDD: Connect the SATA
signal and power plugs to the
connectors at the back of the drive.
For IDE HDD: Connect the IDE and
power plugs to the connectors at the
back of the drive.
SATA
IDE
