2-8 Chapter 2: Basic installation
2.5 Installing a DIMM
The system motherboard comes with four Double Data Rate 2 (DDR2) Dual Inline
Memory Module (DIMM) sockets.

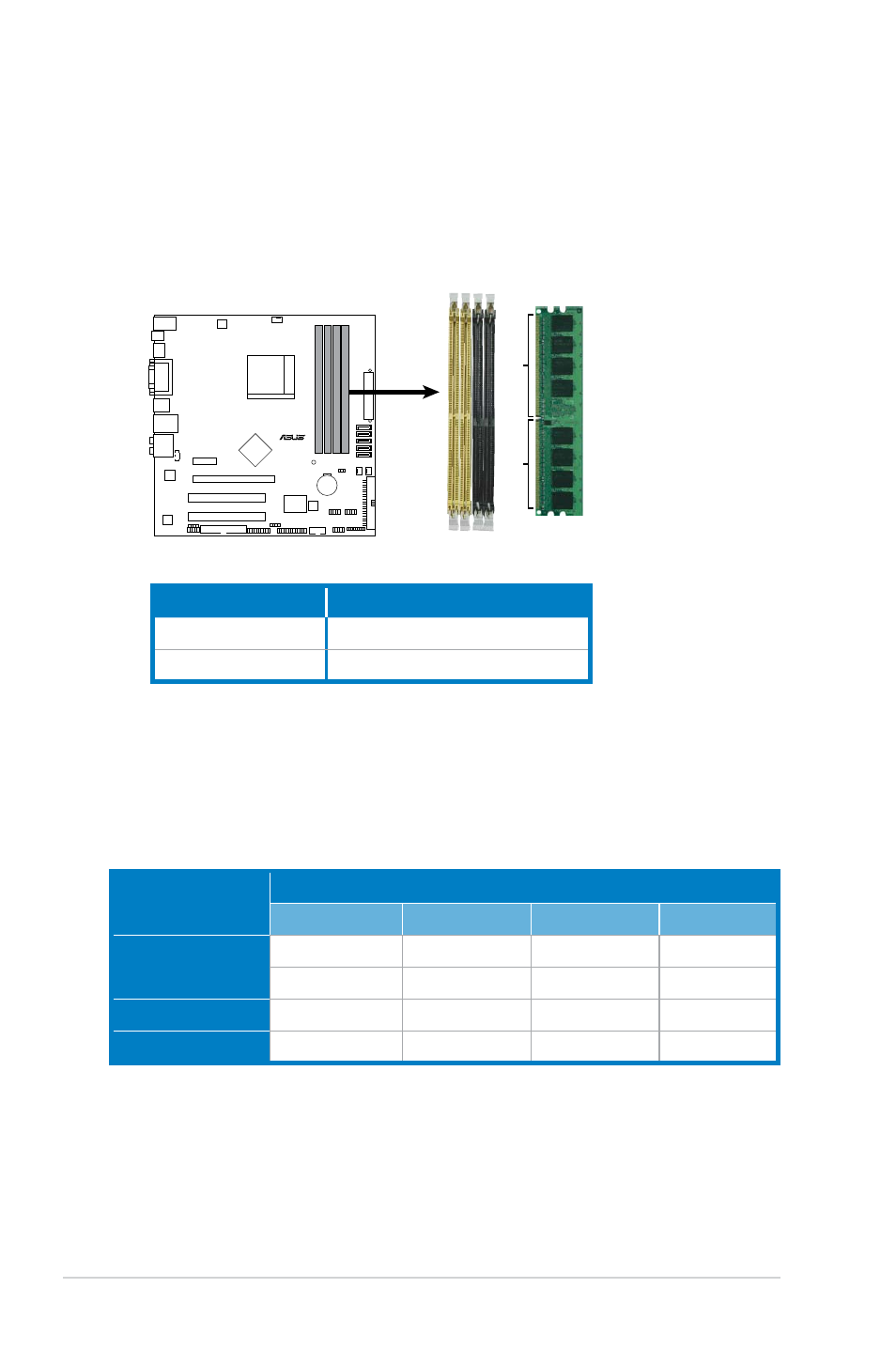

The following figure illustrates the location of the sockets:
Channel Sockets
Channel A DIMM_A1 and DIMM A2
Channel B DIMM_B1 and DIMM B2
R
240-pin DDR2 DIMM Sockets
DIMM_B1 DIMM_A2 DIMM_B2 DIMM_A1
128 Pins
11
2 Pins
2.5.1 Memory configurations
You may install 256 MB, 512 MB, 1 GB, and 2 GB unbuffered ECC and non-ECC
DDR2 DIMMs into the DIMM sockets.
Recommended Memory Configurations
Mode
Sockets
DIMM_A1 DIMM_B1 DIMM_A2 DIMM_B2
Single-Channel
– Populated – –
Populated – – –
Dual-channel (1) Populated Populated – –
Dual-channel (2) Populated Populated Populated Populated
