18 ASUS P5A-VM User’s Manual
Manufacturer CPU Type Single Plane Dual Plane VID3 VID2 VID1 VID0
AMD (.25micron) K6-III/400,450 ---- 2.4V(Dual) [1-2] [2-3] [1-2] [1-2]
K6-2/450,475
AMD (.25micron) K6-2/266,300,333 ---- 2.2V(Dual) [1-2] [1-2] [2-3] [1-2]
350,366,380,400
K6/233,266,300
AMD K5 3.5V(VRE) ---- [2-3] [2-3] [2-3] [2-3]
IBM/Cyrix 6x86 3.5V(VRE) ---- [2-3] [2-3] [2-3] [2-3]
IDT WinChip2 3.5V(VRE) ---- [2-3] [2-3] [2-3] [2-3]
Intel P54C/P54CS 3.5V(VRE) ---- [2-3] [2-3] [2-3] [2-3]
AMD K5 3.4V(STD) ---- [2-3] [2-3] [2-3] [1-2]
Intel P54C/P54CS 3.4V(STD) --- [2-3] [2-3] [2-3] [1-2]
AMD (.35micron) K6-233 ---- 3.2V(Dual) [2-3] [2-3] [1-2] [1-2]
AMD (.35micron) K6-166,200 ---- 2.9V(Dual) [2-3] [1-2] [1-2] [2-3]
IBM/Cyrix 6x86MX ---- 2.9V(Dual) [2-3] [1-2] [1-2] [2-3]
Intel P55C-MMX ---- 2.8V(Dual) [2-3] [1-2] [1-2] [1-2]
III. INSTALLATION
Jumpers
III. INST
ALLA
TION
Compatible Cyrix CPU Identification
The only Cyrix 6x86-PR166+ CPU that is supported on this
motherboard must be Revision 2.7 or later. Look on the un-
derside of the CPU for the serial number. The number should
read G8DC6620A or later.

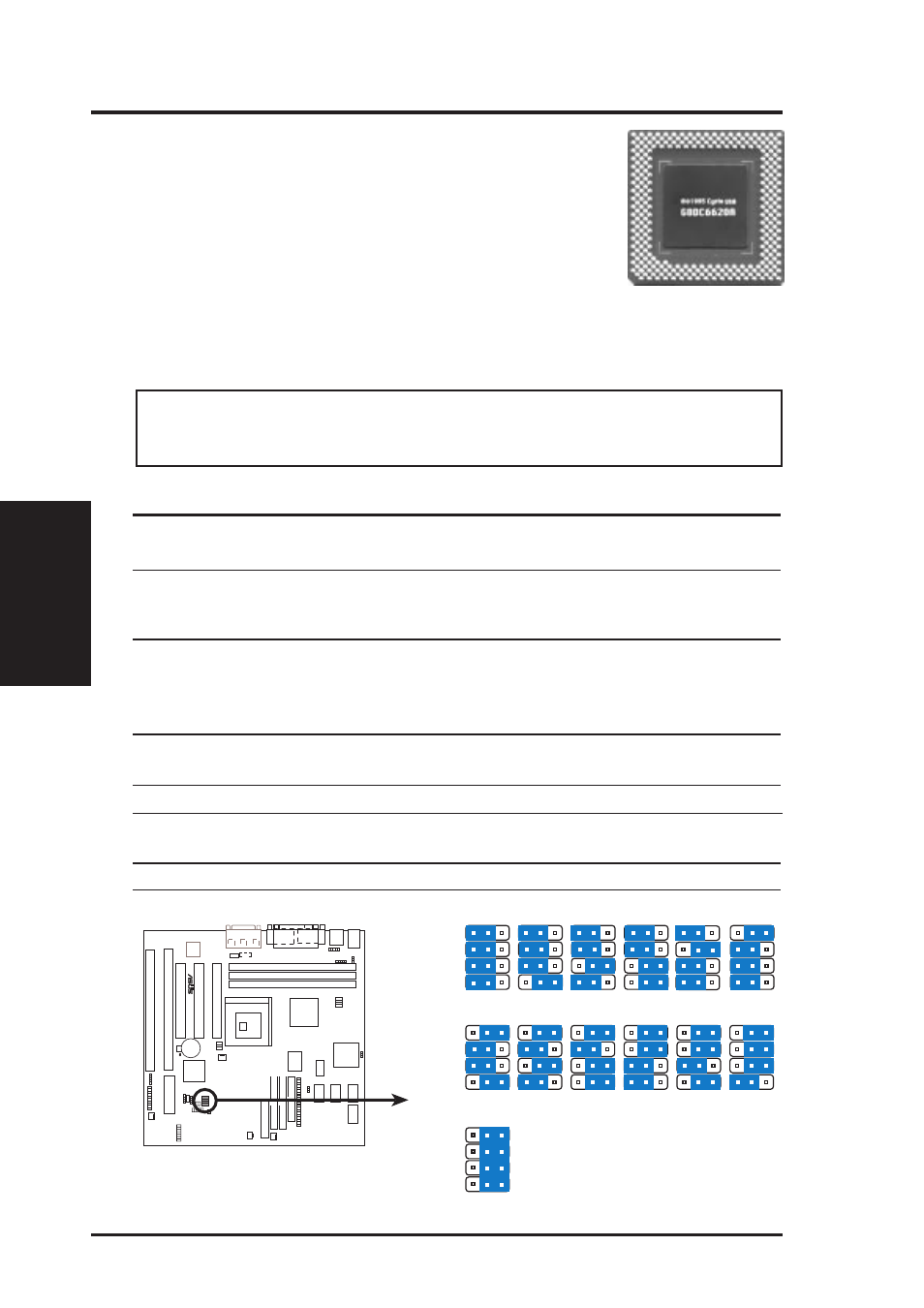

P5A-VM CPU Core Voltage Selection
VID1
VID2
VID3
VID0
1 2 3
2.0Volts
1 2 3
2.1Volts
1 2 3
2.2Volts
1 2 3
2.3Volts
1 2 3
2.9Volts
1 2 3
2.8Volts
VID1
VID2
VID3
VID0
1 2 3
3.0Volts
1 2 3
3.1Volts
1 2 3
3.2Volts
1 2 3
3.3Volts
1 2 3
3.4Volts
®
01
1 2 3
3.5Volts
VID1
VID2
VID3
VID0
1 2 3
2.4Volts
8. Voltage Regulator Output Selection (VID0, VID1, VID2, VID3)
These jumpers set the VCORE voltage supplied to the CPU. Switching regulators
allow some jumper settings to be the same for two voltages of different power planes.
WARNING! Because CPU designs change rapidly, the table below is only intended as a simple
guideline and thus may not be true for your CPU. Always refer to the CPU documentation for
your CPU’s voltage and then set the appropriate VID jumpers according to the illustration below.
