ASUS TXP4-X User’s Manual 17
III. INSTALLATION
(Jumpers)
III. INST
ALLA
TION
4. CPU External (BUS) Frequency Selection (FS0, FS1, FS2)
These jumpers tell the clock generator what frequency to send to the CPU. These allow
the selection of the CPU’s External frequency (or BUS Clock). The BUS Clock times
the BUS Ratio equals the CPU’s Internal frequency (the advertised CPU speed).
5. CPU to BUS Frequency Ratio (BF0, BF1, BF2)
These jumpers set the frequency ratio between the Internal frequency of the CPU
and the External frequency (called the BUS Clock) within the CPU. These must be
set together with the above jumpers CPU External (BUS) Frequency Selection.
R

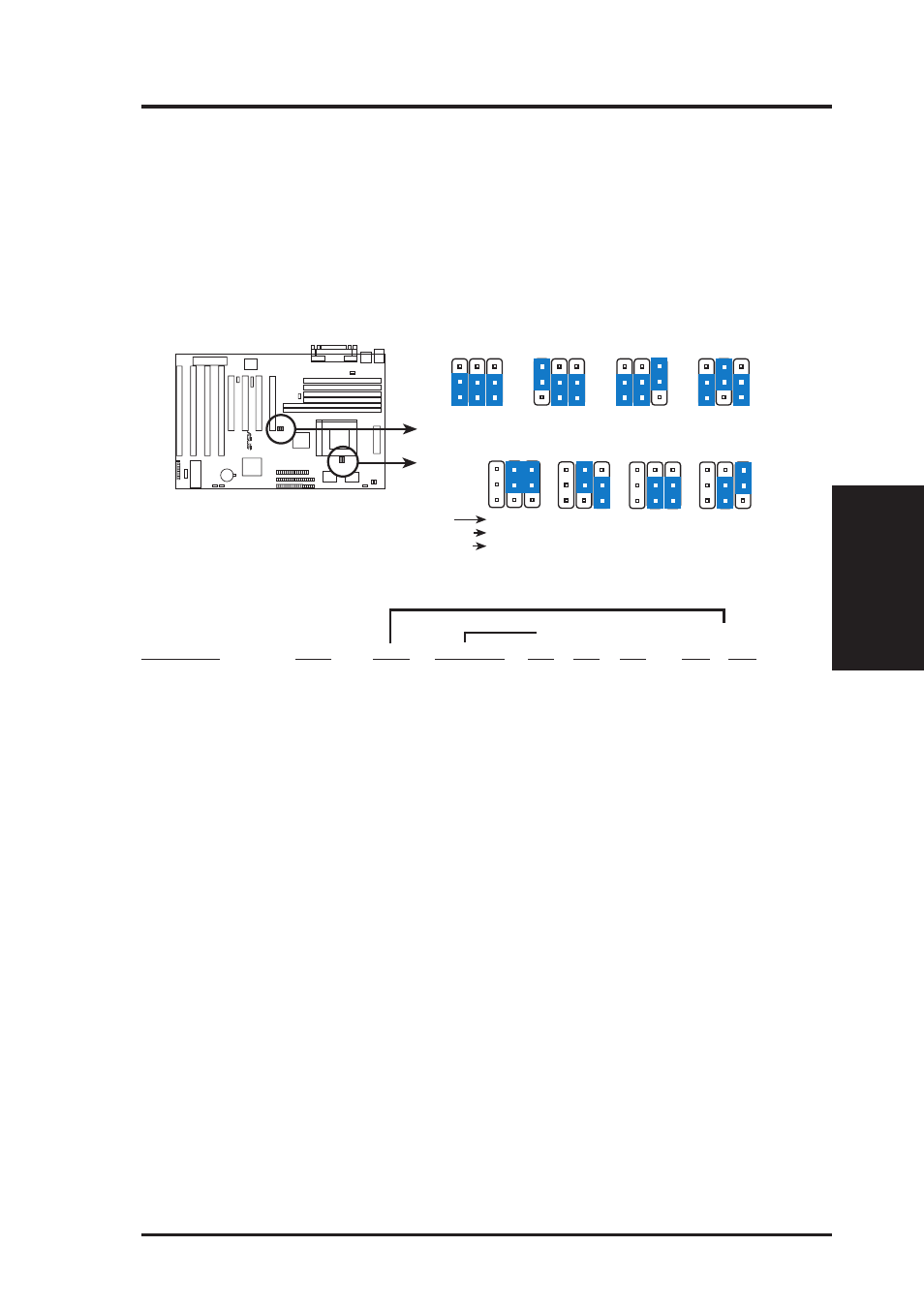

CPU External Clock (BUS) Frequency Selection
50MHz
FS1
1
2
3
FS0 FS2
55MHz
FS1 FS0 FS2
1
2
3
60MHz
FS1 FS0 FS2
1
2
3
66MHz
FS1 FS0 FS2
1
2
3
Complete Names:
Intel Pentium P54C, P55C-MMX
AMD K5, K6
IBM/Cyrix 6x86(M1), 6x86MX(M2)
CPU : BUS Frequency Ratio
P54C/K5
P55C/K6/MX
IBM/Cyrix 6x86 3.0x(3/1)
3.0x(3/1)
4.0x(4/1) 2.5x(5/2)
2.5x(5/2)
2.0x(2/1) 2.0x(2/1)
2.0x(2/1)
2.0x(2/1) 1.5x(3/2)
3.5x(7/2)
3.0x(3/1)
1
2
3
BF1 BF0 BF2
1
2
3
BF1 BF0 BF2
1
2
3
BF1 BF0 BF2
1
2
3
BF1 BF0 BF2
Set the jumpers by the Internal speed of the Intel, AMD, IBM, or Cyrix CPU as follows:
(BUS Freq.) (Freq. Ratio)
CPU Model Freq. Ratio BUS Freq. FS2 FS1 FS0 BF1 BF0
Intel Pentium 233MHz 3.5x 66MHz [2-3] [1-2] [2-3] [1-2] [1-2]
Intel Pentium 200MHz 3.0x 66MHz [2-3] [1-2] [2-3] [2-3] [1-2]
Intel Pentium 166MHz 2.5x 66MHz [2-3] [1-2] [2-3] [2-3] [2-3]
Intel Pentium 150MHz 2.5x 60MHz [2-3] [2-3] [1-2] [2-3] [2-3]
Intel Pentium 133MHz 2.0x 66MHz [2-3] [1-2] [2-3] [1-2] [2-3]
Intel Pentium 120MHz 2.0x 60MHz [2-3] [2-3] [1-2] [1-2] [2-3]
Intel Pentium 100MHz 1.5x 66MHz [2-3] [1-2] [2-3] [1-2] [1-2]
Intel Pentium 90MHz 1.5x 60MHz [2-3] [2-3] [1-2] [1-2] [1-2]
Intel Pentium 75MHz 1.5x 50MHz [2-3] [2-3] [2-3] [1-2] [1-2]
AMD-K6-PR233 233MHz 3.5x 66MHz [2-3] [1-2] [2-3] [1-2] [1-2]
AMD-K6-PR200 200MHz 3.0x 66MHz [2-3] [1-2] [2-3] [2-3] [1-2]
AMD-K6-PR166 166MHz 2.5x 66MHz [2-3] [1-2] [2-3] [2-3] [2-3]
AMD-K5-PR133 100MHz 1.5x 66MHz [2-3] [1-2] [2-3] [1-2] [1-2]
AMD-K5-PR120 90MHz 1.5x 60MHz [2-3] [2-3] [1-2] [1-2] [1-2]
AMD-K5-PR100 100MHz 1.5x 66MHz [2-3] [1-2] [2-3] [1-2] [1-2]
AMD-K5-PR90 90MHz 1.5x 60MHz [2-3] [2-3] [1-2] [1-2] [1-2]
AMD-K5-PR75 75MHz 1.5x 50MHz [2-3] [2-3] [2-3] [1-2] [1-2]
IBM/Cyrix 6x86MX-PR233 200MHz 3.0x 66MHz [2-3] [1-2] [2-3] [2-3] [1-2]
IBM/Cyrix 6x86MX-PR200 166MHz 2.5x 66MHz [2-3] [1-2] [2-3] [2-3] [2-3]
IBM/Cyrix 6x86MX-PR166 150MHz 2.5x 60MHz [2-3] [2-3] [1-2] [2-3] [2-3]
*IBM/Cyrix -PR166+ 133MHz 2.0x 66MHz [2-3] [1-2] [2-3] [1-2] [2-3]
*NOTE: Only IBM or Cyrix Rev 2.7 or later is supported on this motherboard (see preceding page).
Bootup screen will show 6x86-P166+ with the Cyrix PR166+ installed on this motherboard.
