80 Chapter 4: Motherboard info
6. Internal audio connectors (4-pin AUX1, CD1)
These connectors allow you to receive stereo audio input from sound
sources such as a CD-ROM, TV tuner, or MPEG card.

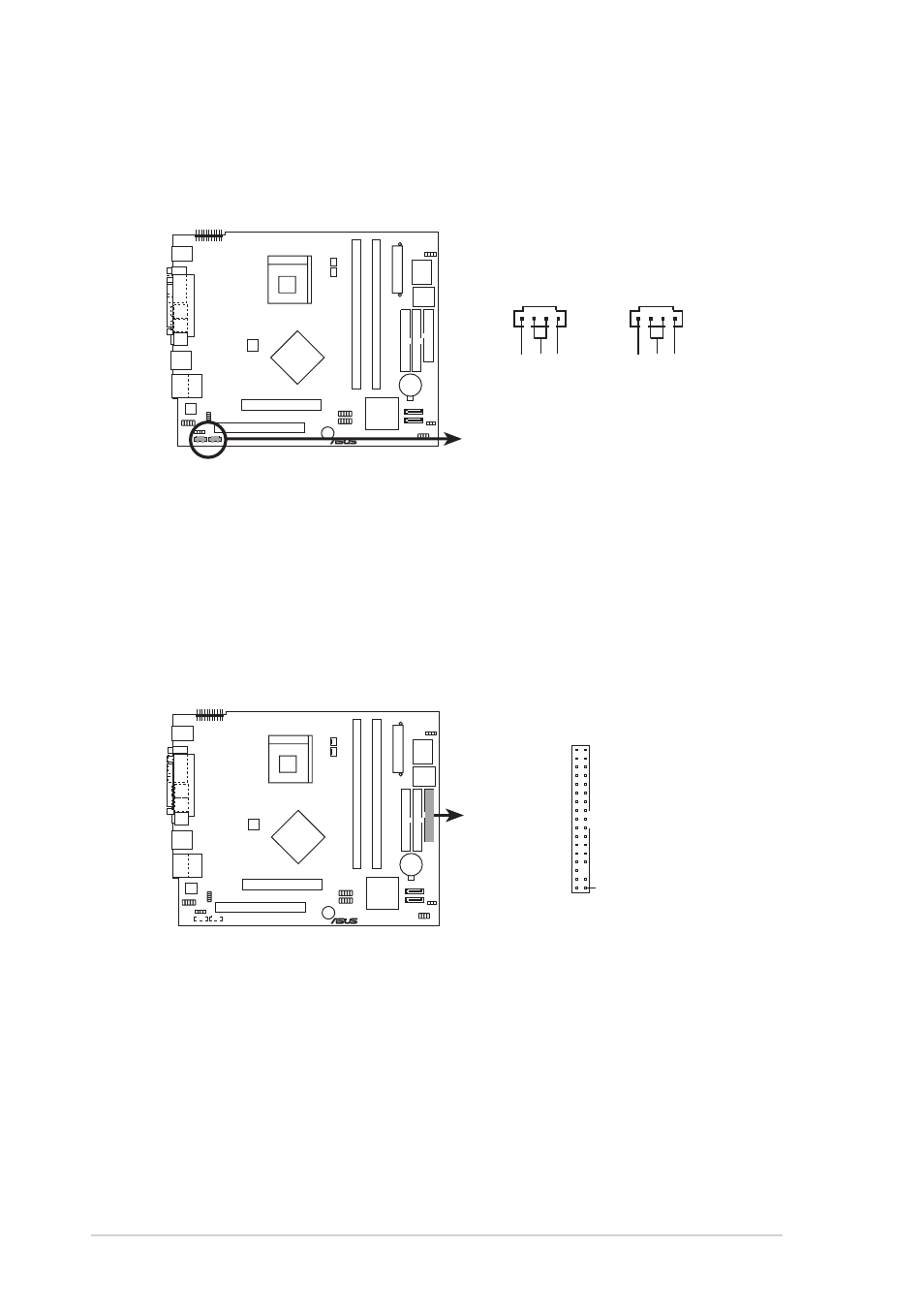

P4P8T ®
P4P8T Internal Audio Connectors
AUX1 (White) CD1 (Black)
Right A
udio Channel
Left A
udio Channel
Ground
Right A
udio Channel
Left A
udio Channel
Ground
7. Floppy disk drive connector (34-1 pin FLOPPY1)
This connector supports the provided floppy drive ribbon cable. After
connecting one end to the motherboard, connect the other end to the
floppy disk drive. (Pin 5 is removed to prevent incorrect insertion
when using ribbon cables with pin 5 plug).
P4P8T ®
P4P8T Floppy Disk Drive Connector
FLOPPY
NOTE: Orient the red markings on
the floppy ribbon cable to PIN 1.
PIN 1
