4-2 Chapter 4: Motherboard info
4.1 Introduction
The Vintage V-Series P5G33 barebone system comes with an ASUS
motherboard. This chapter provides technical information about the
motherboard for future upgrades or system reconfiguration.

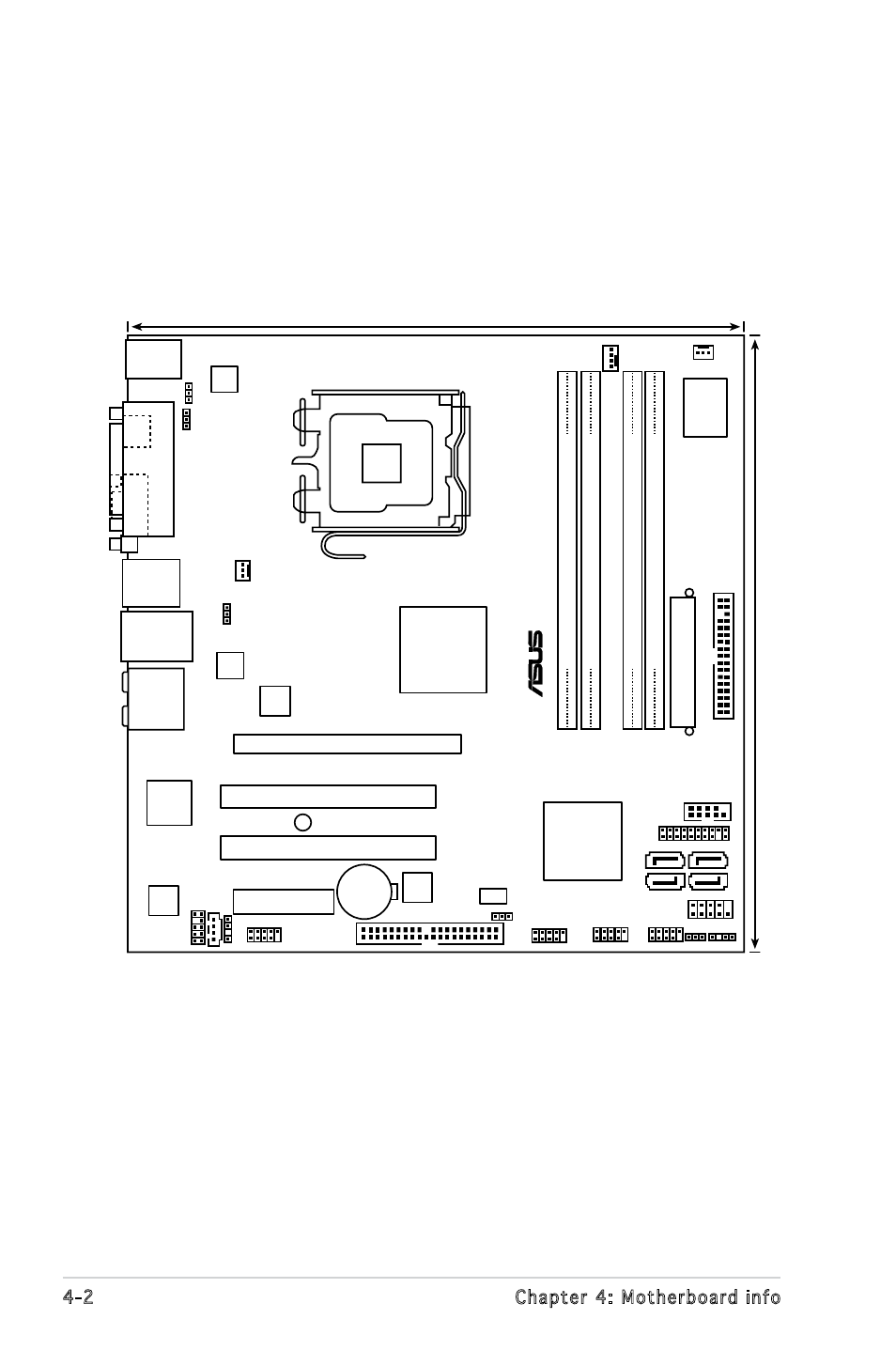

4.2 Motherboard layout
VGA
P5K-VM
®
AAFP
CHASSIS
24.4cm (9.6in)
24.4cm (9.6in
)
CPU_FAN
DDR2 DIMM_B1 (64 bit,240-pin module) DDR2 DIMM_A1 (64 bit,240-pin module) DDR2 DIMM_A2 (64 bit,240-pin module) DDR2 DIMM_B2 (64 bit,240-pin module
)
Super I/O
CD
PCIEX4_1
CLRTC
Intel ®
ICH9
EA
TXPWR
CR2032 3V
Lithium Cell
CMOS Power
Intel
®
MCH
G33
PCI1
PCIEX16_1
CHA_FAN1
SPDIF_OUT
LGA775
IE1394_2
BIOS
SATA1
ATX12V
ALC883
PWR_FAN
PCI2
F_USB34
KB_USB56
LAN1_USB12
VIA
VT6308S
PRI_EIDE
KBPWR
USB78
SB_PWR
COM1
USBPW1-4
USBPW9-12
AUDIO
USB910 USB1112
ASM4131
88E8056
USBPW5-8
SATA2
SATA4 SA
TA
3
FLOPPY
PA
RALLEL
POR
T
SPDI
F
JMicron
JMB368
F_PANEL
