ASUS TX97-XV User’s Manual 17
III. INSTALLATION
(System Memory)
III. INST
ALLA
TION

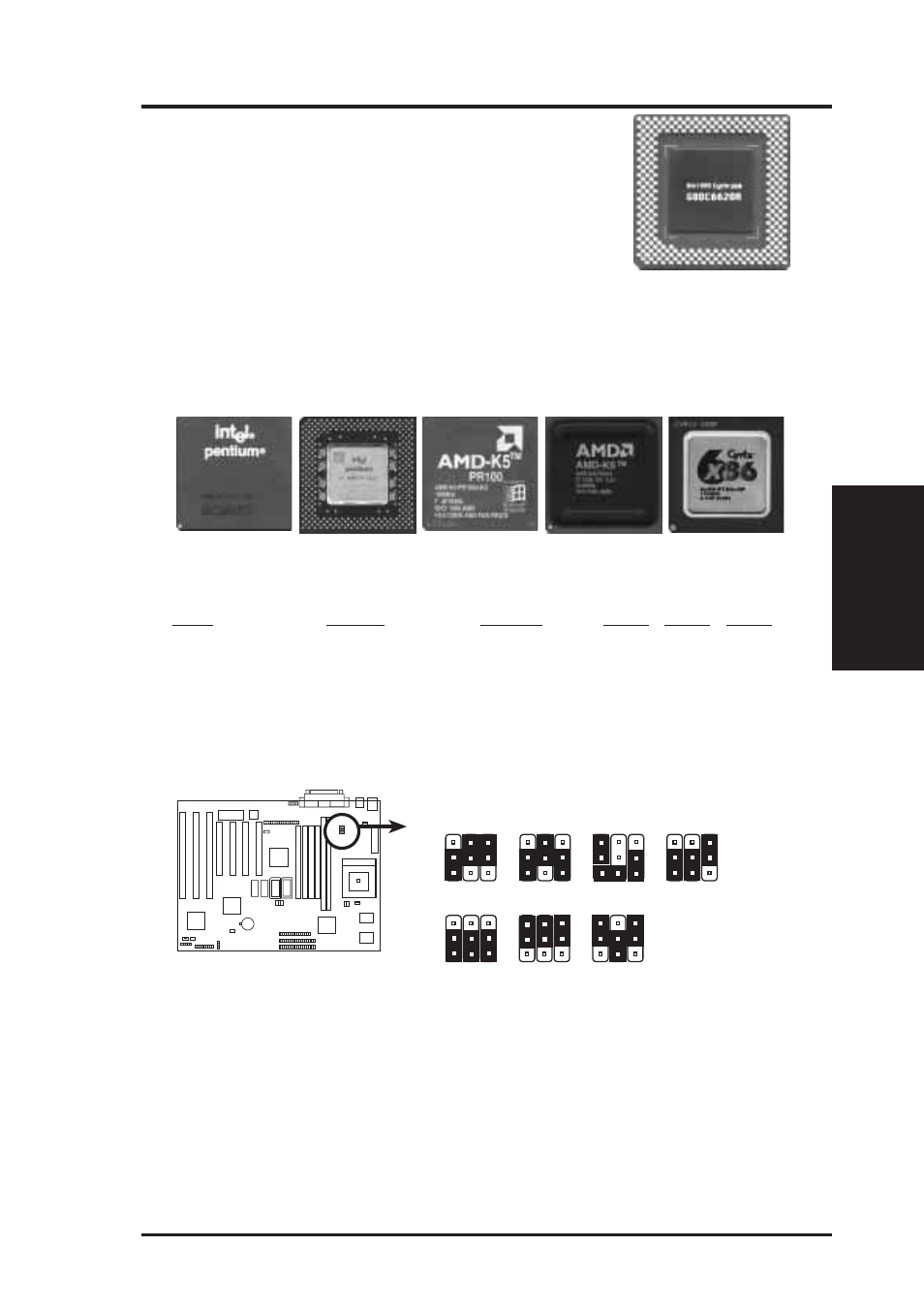

4. Voltage Regulator Output Selection (VID0, 1, 2)
These jumpers set the voltage supplied to the CPU. The voltage regulators will
automatically detect and switch between Single Power Plane (STD & VRE) and
Dual Power Planes.
Intel P54C Pentium
(75-233MHz) Intel P55C Pentium
MMX (150-200MHz) AMD-K5
(PR75-133MHz) Cyrix 6x86 166+
Rev2.7 (133MHz) AMD-K6
(PR166-233MHz)
Type Setting Voltage VID0 VID1 VID2
Intel/AMD/Cryix P54C/CS/K5/M1 3.5V(VRE) [2-3] [1-2] [1-2]
Intel/AMD P54C/CS/K5 3.4V(STD) [2-3] [1-2] [2-3]
AMD K6/PR233 3.2V [1-2] [ ] [2-3]
AMD K6/PR166, PR200 2.9V [2-3] [2-3] [1-2]
Intel/Cyrix P55C MMX/M2 2.8V [2-3] [2-3] [2-3]
Voltage Regulator Output Selection 2.5Volts
1
2
3
2.7Volts
1
2
3
3.5Volts
(VRE)
1
2
3
VID1 VID2 VID0
1
2
3
3.4Volts
(STD)
VID1 VID2 VID0
1
2
3
2.8Volts
1
2
3
1
2
3
2.9Volts
VID1 VID2 VID0
3.2Volts
VID1 VID2 VID0
Compatible Cyrix CPU Identification
The only Cyrix CPU that is supported on this motherboard is
labeled Cyrix 6x86 P166+ but must be Revision 2.7 and later.
Look on the underside of the CPU for the serial number. The
number should read G8DC6620A or larger.
(VID0-3)
(VID1-3)
