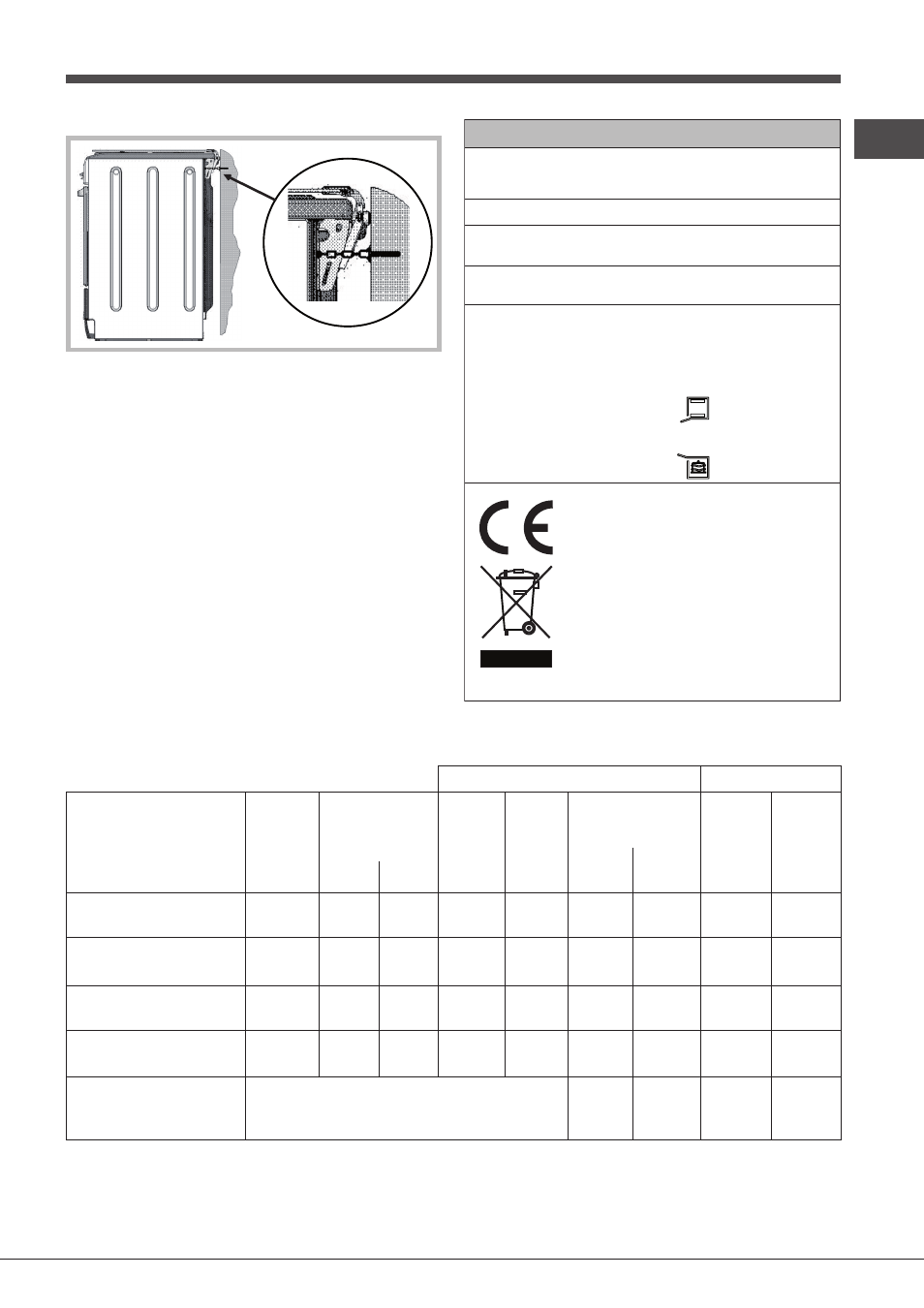

Safety Chain
! In order to prevent accidental tipping of the appliance,
for example by a child climbing onto the oven door, the
supplied safety chain MUST be installed!
The cooker is fitted with a safety chain to be fixed by means
of a screw (not supplied with the cooker) to the wall behind
the appliance, at the same height as the chain is attached
to the appliance.
Choose the screw and the screw anchor according to the
type of material of the wall behind the appliance. If the head
of the screw has a diameter smaller than 9mm, a washer
should be used. Concrete wall requires the screw of at least
8mm of diameter, and 60mm of length.
TABLE OF CHARACTERISTICS
Oven
dimensions
HxLxP
32,4 x 43,5 x 40,6 cm
Volume lt. 58
Voltage and
frequency
see data plate
Burners
may be adapted for use with any type
of gas shown on the data plate.
This appliance conforms to the following
European Economic Community
directives:
- 2006/95/EEC dated 12/12/06 (Low
Voltage) and subsequent amendments
- 2004/108/EEC dated 15/12/04
(Electromagnetic Compatibility) and
subsequent amendments
- 93/68/EEC dated 22/07/93 and
subsequent amendments.
- 2009/142/EEC dated 30/11/09 (Gas)
and subsequent amendments.
- 2002/96/EC and subsequent
amendments.
ENERGY
LABEL
Directive 2002/40/EC on the label of
electric ovens.
Standard EN 50304-60350
Energy consumption for Natural
convection – heating mode:
Traditional mode
Declared energy consumption for
Forced convection Class – heating
mode: Baking.
Table of burner and nozzle specifications
Table 1 Liquid gas Natural gas
BURNER
Diameter
(mm)
Heating
power
kW (H.s.*)
By-pass
1/100
(mm)
Nozzle
1/100
Nozzle
1/100
(mm)
Flow *
g/h
Flow *
l/h
(mm) Nomin. Red. G30 G31 G20
. 3 Rapid 0 100 3.00 0.7 40 86 218 214 116 286
. 2 Semi-rapid 5 75 1.65 0.4 30 64 120 118 96 157
. 1 Auxiliary 55 1.00 0.4 30 50 73 71 71 95
. 4 Triple Ring 130 3.25 1.3 57 91 236 232 124 309
Supply pressure
Nominal (mbar)
Minimal (mbar)
Maximised (mbar)
28-30
20
35
37
25
45
20
17
25
* At 15°C and 1013 mbar - dry gas
Propane G31 P.C.S. = 50.37 MJ/Kg
Butane G30 P.C.S. = 49.47 MJ/Kg
Methane G20 P.C.S. = 37.78 MJ/m 3
