Chapter 1: Product introduction

1.5.3

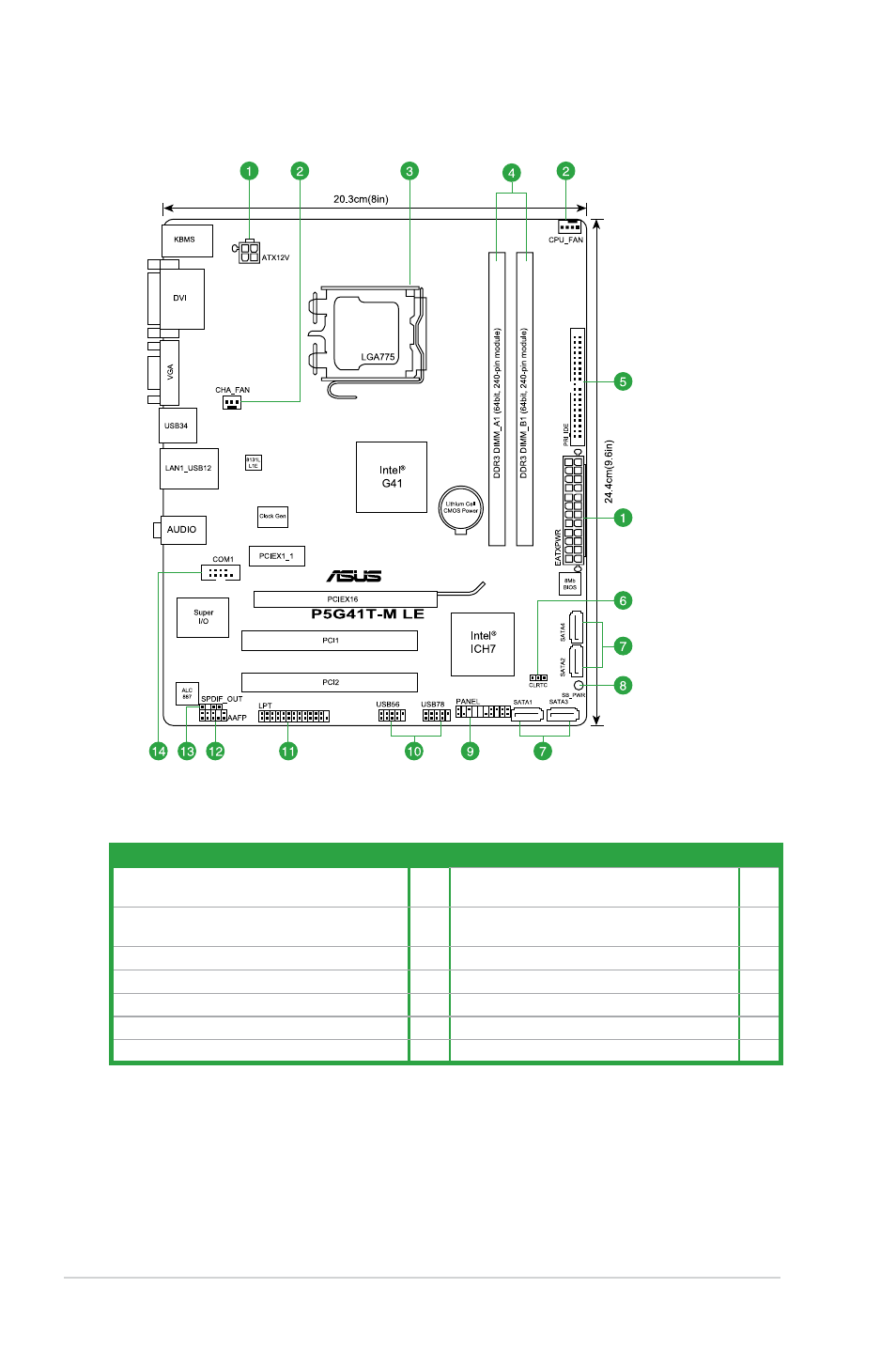

Motherboard layout

1.5.4

Layout contents

Connectors/Jumpers/Slots/LED

Page

Connectors/Jumpers/Slots/LED

Page

1. ATX power connectors (24-pin EATXPWR,

4-pin ATX12V)

1-21 8.

Onboard LED (SB_PWR)

1-4

2. CPU and chassis fan connectors

(4-pin CPU_FAN, 3-pin CHA_FAN)

1-20 9.

System panel connector (20-8 pin PANEL)

1-24

3. Intel LGA775 CPU socket

1-7

10. USB connectors (10-1 pin USB56, USB78)

1-25

4. DDR3 DIMM slots

1-12 11. LPT connector (26-1 pin LPT)

1-25

5. IDE connector (40-1 pin PRI_IDE)

1-23 12. Front panel audio connector (10-1 pin AAFP) 1-19

6. Clear RTC RAM (3-pin CLRTC)

1-17 13. Digital audio connector (4-1 pin SPDIF_OUT) 1-20

7. Serial ATA connectors (7-pin SATA1-4)

1-22 14. Serial port connector (10-1 pin COM1)

1-22
