Hardware

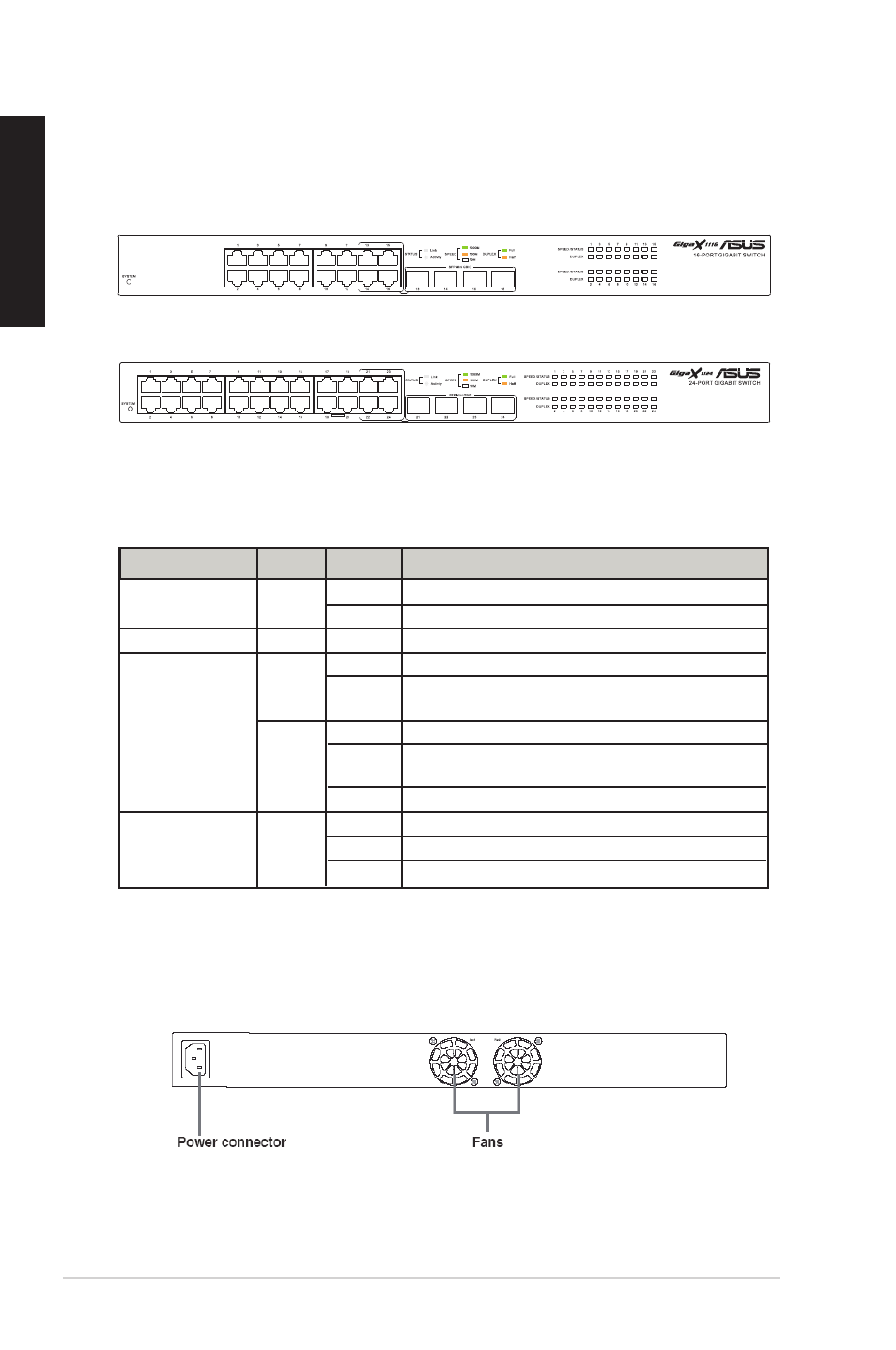

Front.panel
The front panels of GigaX1116B and GigaX1124B include LED indicators that
show the working condition of the switch.
Table.1...LED.indicators
Figure.2..Front.panel.(GigaX1124B)
Label.
Color.
Status.
Description
SYSTEM
Green
On
Unit is powered on and in normal operation.
Off
Unit is powered off.
1 – 16/24
This number identifies the port number.
STATUS/SPEED Green
On
Port is enabled for1000Mbps
Blinking
Receiving or transmitting packets on this port for
1000Mbps
Amber On
Port is enabled for10/100 Mbps
Blinking
Receiving or transmitting packets on this port for
10/100Mbps
Off
Link down
DUPLEX
Green
On
Switch is operating in full-duplex mode.
Blinking
Collision happens
Off
Switch is operating in half-duplex mode
Figure.1..Front.panel.(GigaX1116B)
Rear.panel
The rear panel of GigaX1116B/GigaX1124B contains two fans and a power
connector.
Figure.3..Rear.panel.(GigaX1116B/.GigaX.1124B).
