ASUS AT3IONT-I Series 1-12

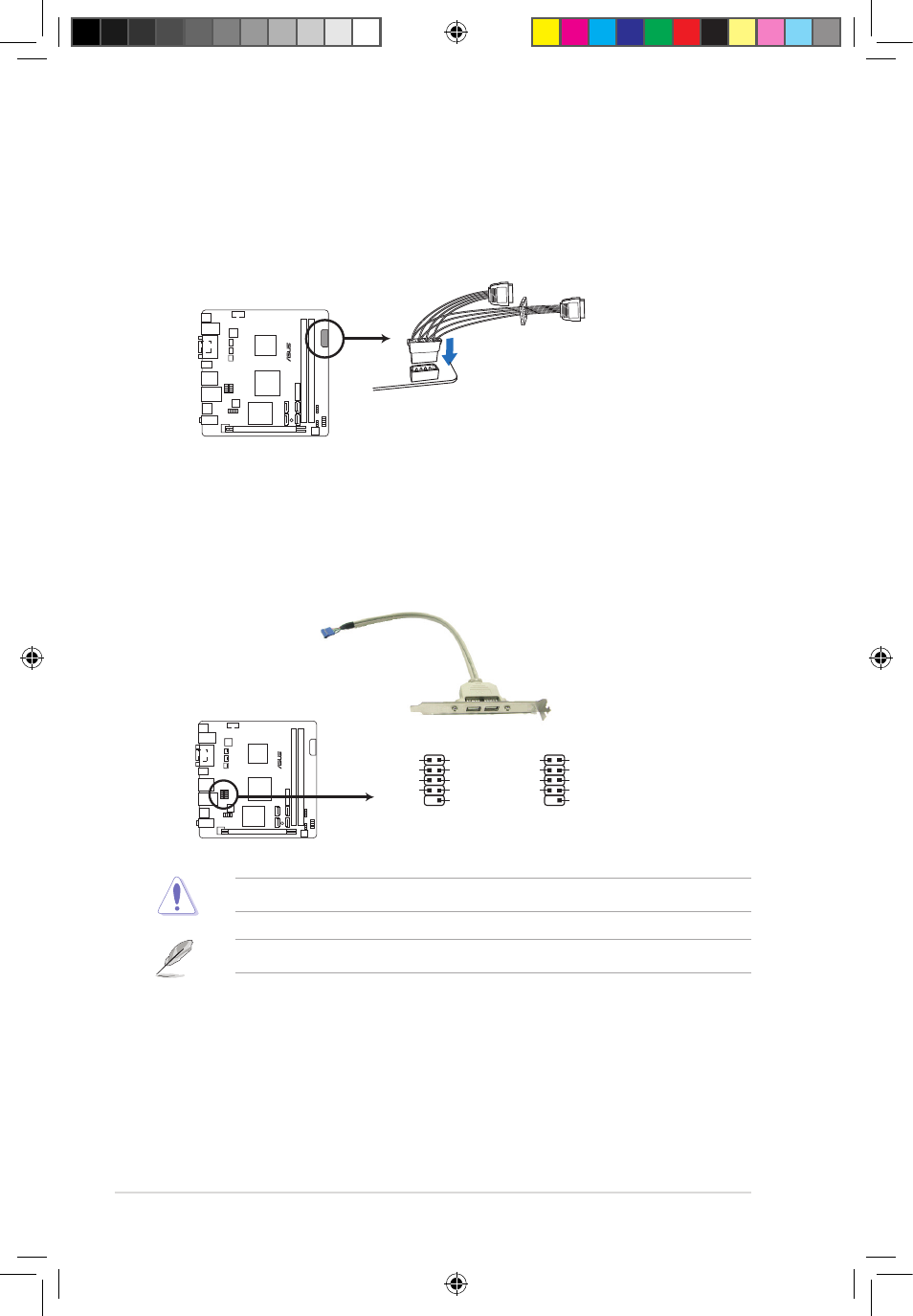

3. USB connector (10-1 pin USB78, USB910)
This connector is for a USB 2.0 port. Connect the USB module cable to this connector,
then install the module to a slot opening at the back of the system chassis. This USB
connector complys with USB 2.0 specification that supports up to 480 Mbps connection
speed.
AT3IONT-I DELUX
E
AT3IONT-I SERIES USB2.0 connectors
PIN 1
USB+5V
USB_P8-
USB_P8+
GND
NC USB+5V
USB_P7-
USB_P7+
GND
USB78
PIN 1
USB+5V
USB_P10-
USB_P10+
GND
NC USB+5V
USB_P9-
USB_P9+
GND
USB910
Never connect a 1394 cable to the USB connector. Doing so will damage the motherboard!
The USB module cable is purchased separately.
2. SATA power connectors (4-pin SATA_PWR1)
This connectors is for SATA power cable. The power cable plug is designed to fit this
connector in only one orientation. Find the proper orientation and push down firmly until
the connector completely fit.
AT3IONT-I DELUX
E
AT3IONT-I SERIES SATA power connector
