3-5 ASUS V-series M4A3000E
3.4 Connectors

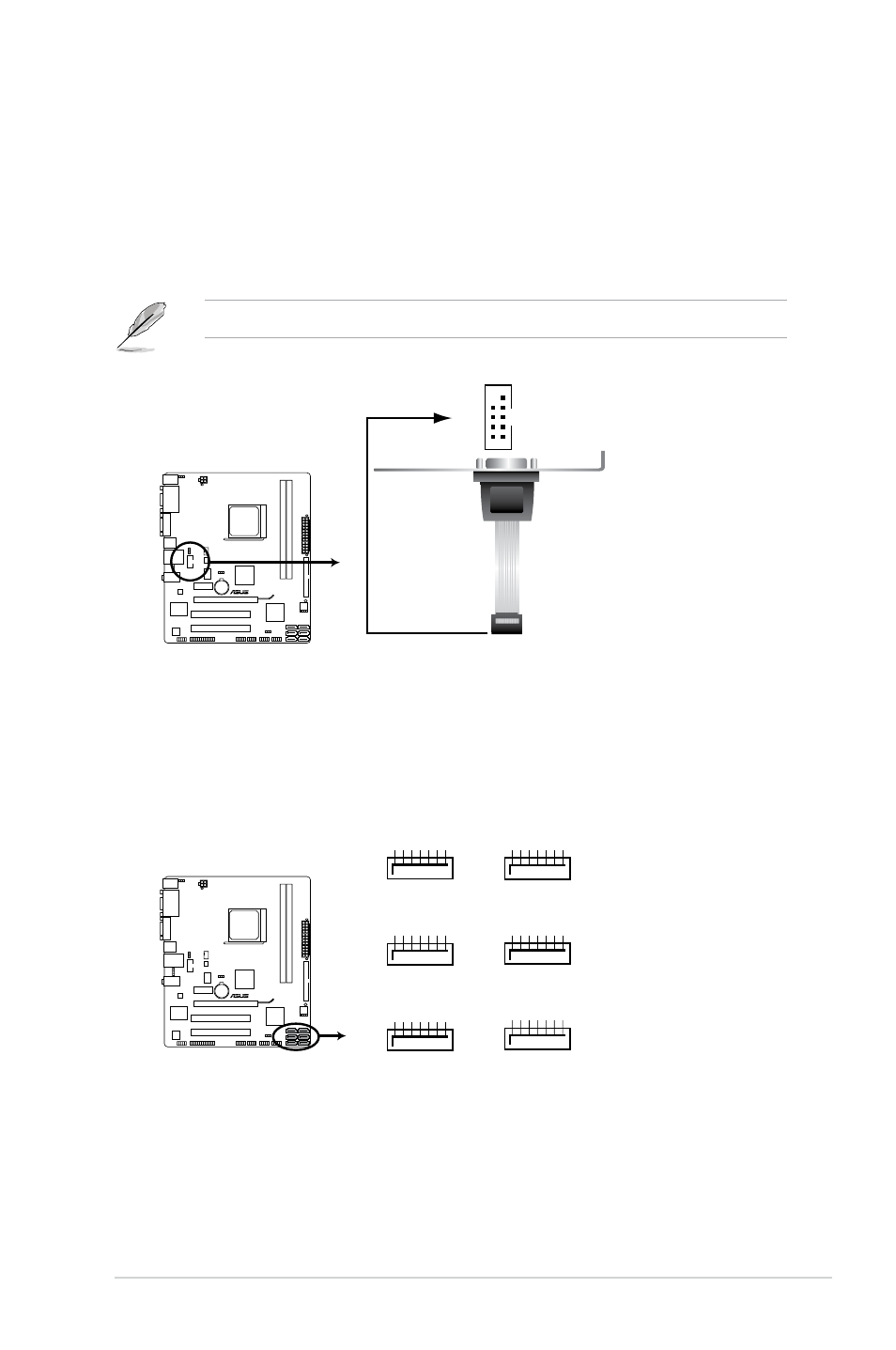

1. Serial port connectors (10-1 pin COM1)
The connector is for a serial (COM) port. Connect the serial port module
cable to the connector, then install the module to a slot opening at the back of
the system chassis.
The serial port bracket (COM1) is purchased separately.
2.. Serial ATA connectors (7-pin SATA1~6)
These connectors are for the Serial ATA signal cables for Serial ATA hard disk
drives.
PIN 1
COM1
M4A78LT-M LE
M4A78LT-M LE Serial port (COM1) connector
SATA4
GN
D
RSATA_RXN4 RSATA_RXP4 GN
D
RSATA_TXN4 RSATA_TXP4 GN
D
SATA6
GN
D
RSATA_RXN6 RSATA_RXP6 GN
D
RSATA_TXN6 RSATA_TXP6 GN
D
SATA1
GN
D
RSATA_RXN1 RSATA_RXP1 GN
D
RSATA_TXN1 RSATA_TXP1 GN
D
SATA3
GN
D
RSATA_RXN3 RSATA_RXP3 GN
D
RSATA_TXN3 RSATA_TXP3 GN
D
SATA5
GN
D
RSATA_RXN5 RSATA_RXP5 GN
D
RSATA_TXN5 RSATA_TXP5 GN
D
SATA2
GN
D
RSATA_RXN2 RSATA_RXP2 GN
D
RSATA_TXN2 RSATA_TXP2 GN
D
M4A78LT-M LE
M4A78LT-M LE SATA connectors
