1-7 ASUS V-series M4A3000E
Refer to the audio configuration table below for the function of the audio ports in
2, 4, or 6-channel configuration.

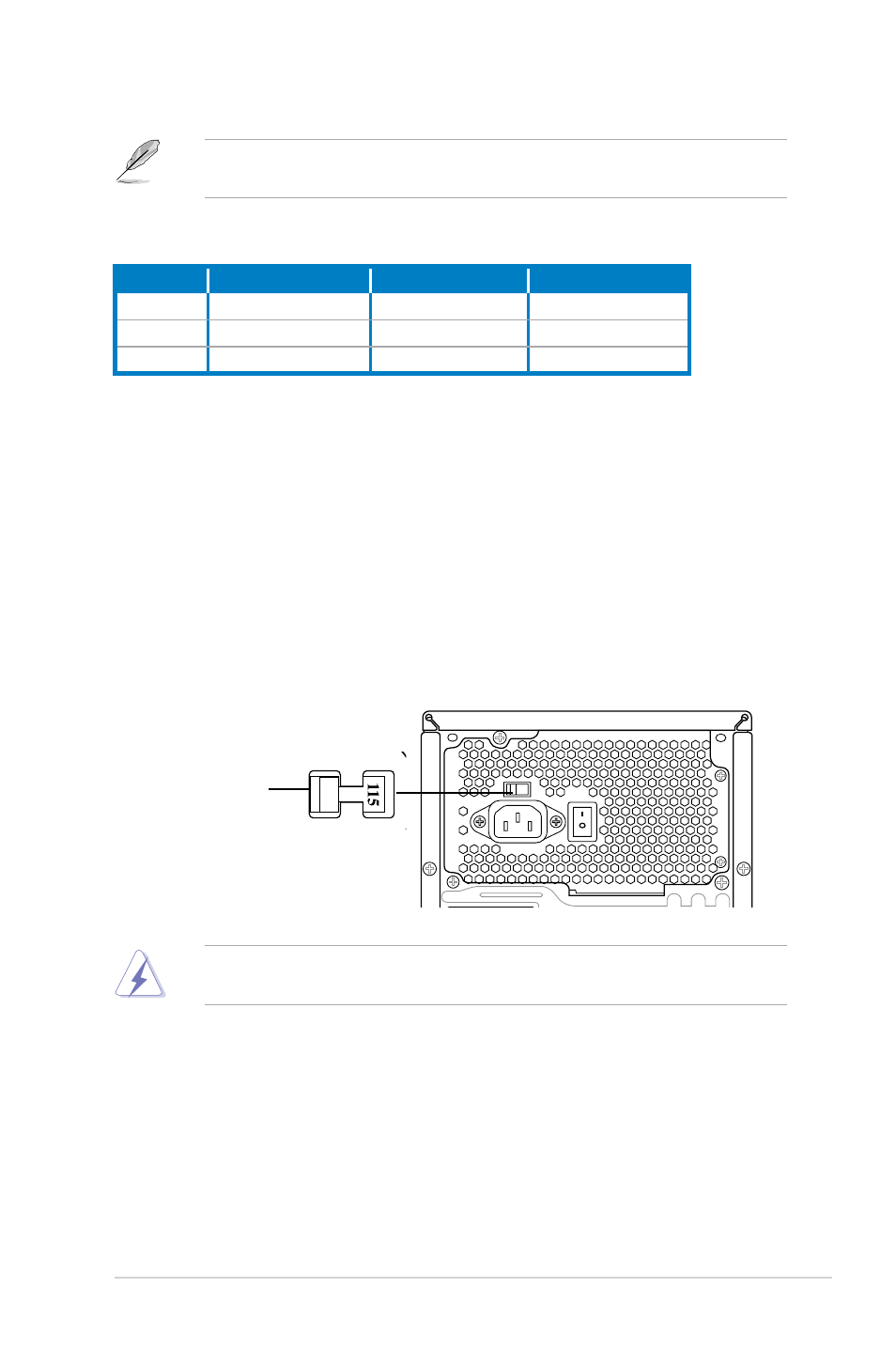

Voltage selector
The PSU has a 115 V/230 V voltage selector switch located beside the power
connector. Use this switch to select the appropriate system input voltage according
to the voltage supply in your area.
If the voltage supply in your area is 100-127 V, set this switch to 115 V.
If the voltage supply in your area is 200-240 V, set this switch to 230 V.
Setting the switch to 115V in a 230V environment or 230V in a 115V
environment will seriously damage the system!
115V/230V
Voltage selector
Audio 2, 4, or 6-channel configuration
Port Headset.2-channel 4-channel 6-channel
Light Blue Line In Rear Speaker Out Rear Speaker Out
Lime Line Out Front Speaker Out Front Speaker Out
Pink Mic In Mic In Bass/Center
15.. Expansion.slot.covers. Remove these covers when installing expansion
cards.
