1-21 Chapter 1: Product introduction

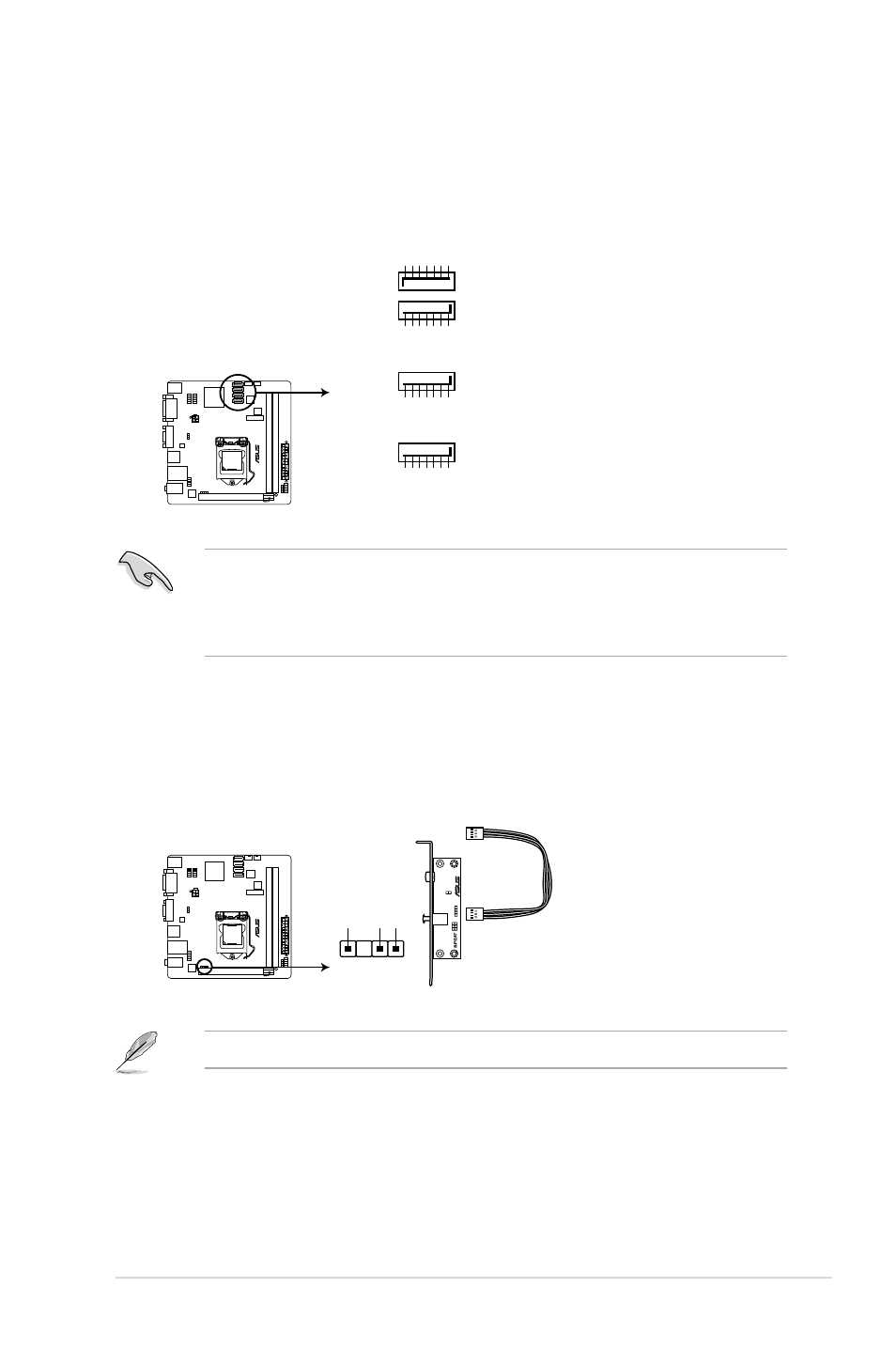

6. Intel ® H61 Serial ATA 3.0Gb/s connectors (7-pin SATA3G_1~4)
These connectors connect to Serial ATA 3.0 Gb/s hard disk drives and optical drives via
Serial ATA 3.0 Gb/s signal cables.
• You must install Windows ® XP Service Pack 3 or later version before using Serial ATA
hard disk drives.
• When using hot-plug and NCQ, set the SATA Mode item in the BIOS to [AHCI Mode].
See section 2.5.3 SATA Configuration for details.
SATA3G_1
SATA3G_2
GND
RSATA_TXP2 RSATA_TXN2
GND
RSATA_RXN2 RSATA_RXP2
GND
SATA3G_3
GND
RSATA_TXP3 RSATA_TXN3
GND
RSATA_RXN3 RSATA_RXP3
GND
SATA3G_4
GND
RSATA_TXP4 RSATA_TXN4
GND
RSATA_RXN4 RSATA_RXP4
GND P8H61-I LX R2.0
P8H61-I LX R2.0 SATA 3.0Gb/s connectors
GND RSATA_RXP1 RSATA_RXN1 GND RSATA_TXN1 RSATA_TXP1 GND
7. Digital audio connector (4-1 pin SPDIF_OUT)
This connector is for an additional Sony/Philips Digital Interface (S/PDIF) port. Connect
the S/PDIF Out module cable to this connector, then install the module to a slot
opening at the back of the system chassis.
The S/PDIF module is purchased separately.
P8H61-I LX R2.0 Digital audio connector
SPDIF_OUT
+5V SPDIFOUT GND
P8H61-I LX R2.0
