7 Quick Installation Guide Quick Installation Guide
English

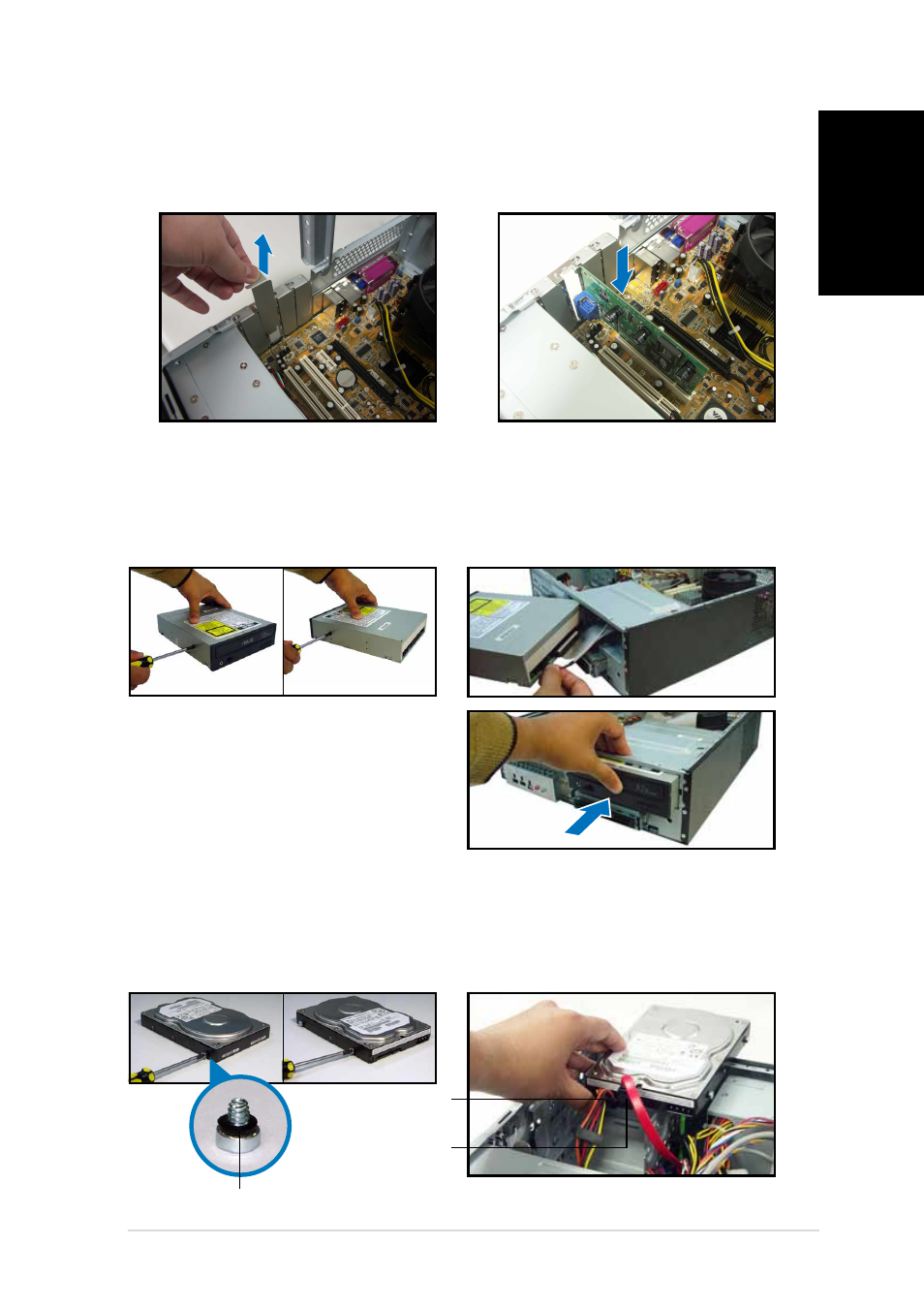

1. Remove the metal cover
opposite the slot that you
intend to use.
2. Insert the card connector to
the slot, then press the card
fi rmly until it fi ts in place.
Installing an expansion card
Installing an optical drive
1. Drive a screw on the top right
screw hole on both sides of
the drive.
2. Connect the IDE and audio
cable at the back of the drive.
3. Push the drive all the way into
the bay until the drive lock clicks.
4. Connect a 4-pin power plug
from the power supply unit to
the power connector at the
back of the drive.
Installing a SATA hard disk drive
1. Drive two screws with rubber
washers on both sides of the
drive.
2. Connect the SATA signal and
power plug at the back of the
drive.
Power cable and
plug
Signal cable and
plug
Rubber washer
