1-3 Chapter 1: Product introduction

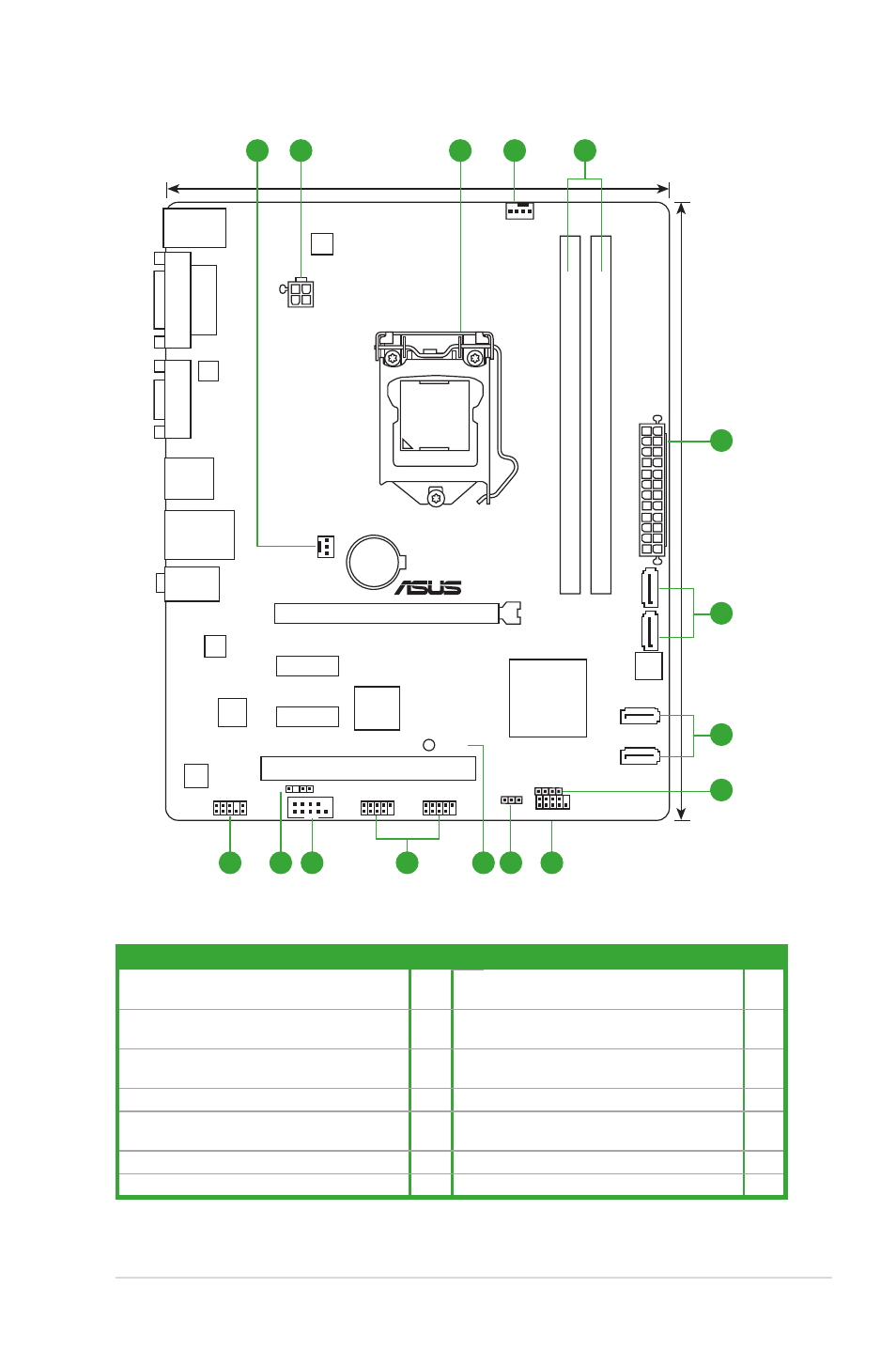

1.2.3 Motherboard layout
1.2.4 Layout contents
Connectors/Jumpers/Slots/LED Page Connectors/Jumpers/Slots/LED Page
1. CPU and chassis fan connectors
(4-pin CPU_FAN, 3-pin CHA_FAN)
1-19 8. Clear RTC RAM (3-pin CLRTC) 1-15
2. ATX power connectors (24-pin EATXPWR,
4-pin ATX12V)
1-18 9. Standby power LED (SB_PWR) 1-1
3. Intel ® LGA1155 CPU socket 1-4 10. USB connectors (10-1 pin USB78, USB910) 1-19
4. DDR3 DIMM slots 1-9 11. Serial port connector (10-1 pin COM1) 1-18
5. Intel ® H61 Serial ATA 3.0Gb/s connectors
(7-pin SATA3G_1/2/3/4)
1-20 12. Digital audio connector (4-1 pin SPDIF_OUT) 1-20
6. Speaker connector (4-pin SPEAKER) 1-21 13. Front panel audio connector (10-1 pin AAFP) 1-17
7. System panel connector (10-1 pin PANEL) 1-21
P8H61-M LX2
PCIEX16_1
PCI1
PCIEX1_1
PCIEX1_2
COM1
USB910
F_PANEL
SPEAKER
USB78 CLRTC
AAFP
ATX12V
EATXPW
R
CPU_FAN
CHA_FAN
Lithium Cell
CMOS Power
Super
I/O
VIA
VT1708S
RTL
8111E
EPU
ASM
1442
32Mb
BIOS
asmedia
ASM1083
SB_PWR
SPDIF_OUT
24.4cm(9.6in)
LGA1155
Intel ®
H61
DDR3 DIMM_A1 (64bit, 240-pin module
)
DDR3 DIMM_B1 (64bit, 240-pin module
)
SATA3G_3
SATA3G_4
SATA3G_2
SATA3G_1
AUDIO
KB_USB56
LAN1_USB12
USB34
19.8cm(7.8in)
VG
A
DVI
3 2 1 4 1
5
2
7 8 10 11 12 13 9
5
6
