4 - 8
4 - 8
4 - 8
4 - 8
4 - 8
C h a p t e r 4 : M o t h e r b o a r d i n f o
C h a p t e r 4 : M o t h e r b o a r d i n f o
C h a p t e r 4 : M o t h e r b o a r d i n f o
C h a p t e r 4 : M o t h e r b o a r d i n f o
C h a p t e r 4 : M o t h e r b o a r d i n f o
4 .
4 .
4 .
4 .
4 .

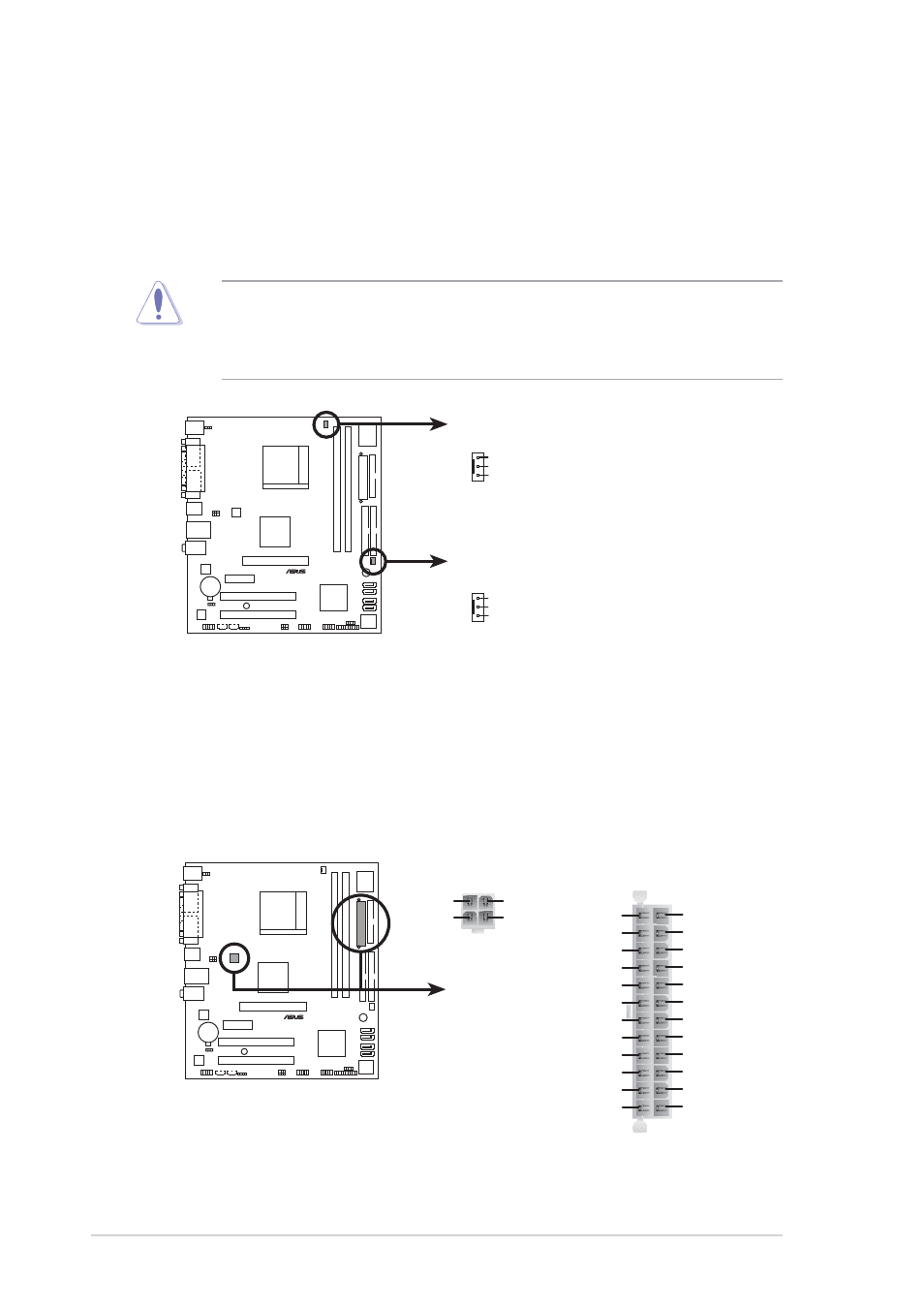

CPU and chassis fan connectors (3-pin CPU_FAN, CHA_FAN)
CPU and chassis fan connectors (3-pin CPU_FAN, CHA_FAN)
CPU and chassis fan connectors (3-pin CPU_FAN, CHA_FAN)
CPU and chassis fan connectors (3-pin CPU_FAN, CHA_FAN)
CPU and chassis fan connectors (3-pin CPU_FAN, CHA_FAN)
The fan connectors support cooling fans of 350 mA~740 mA (8.88 W
max.) or a total of 1 A~2.22 A (26.64 W max.) at +12V. Connect the
fan cables to the fan connectors on the motherboard, making sure that
the black wire of each cable matches the ground pin of the connector.
Do not forget to connect the fan cables to the fan connectors.
Insufficient air flow inside the system may damage the motherboard
components. These are not jumpers! Do not place jumper caps on the
fan connectors!
®
Fan connectors
CPU_FAN
CHA_FAN
GND
Rotation
+12V
GND
Rotation
+12V
5 .
5 .
5 .
5 .
5 .
A T X p o w e r c o n n e c t o r s ( 2 4 - p i n A T X P W R , 4 - p i n A T X 1 2 V )
A T X p o w e r c o n n e c t o r s ( 2 4 - p i n A T X P W R , 4 - p i n A T X 1 2 V )
A T X p o w e r c o n n e c t o r s ( 2 4 - p i n A T X P W R , 4 - p i n A T X 1 2 V )
A T X p o w e r c o n n e c t o r s ( 2 4 - p i n A T X P W R , 4 - p i n A T X 1 2 V )
A T X p o w e r c o n n e c t o r s ( 2 4 - p i n A T X P W R , 4 - p i n A T X 1 2 V )
These connectors are for ATX power supply plugs. The plugs from the
power supply are designed to fit these connectors in only one
orientation. Find the proper orientation and push down firmly until the
connectors completely fit.
®
ATX power connectors
EATXPWR
ATX12V
+12V DC
GND
+12V DC
GND
+3 Volts
+3 Volts
Ground
+5 Volts
+5 Volts
Ground
Ground
Power OK
+5V Standby
+12 Volts
-5 Volts
+5 Volts
+3 Volts
-12 Volts
Ground
Ground
Ground
PSON#
Ground
+5 Volts
+12 Volts
+3 Volts
+5 Volts
Ground
