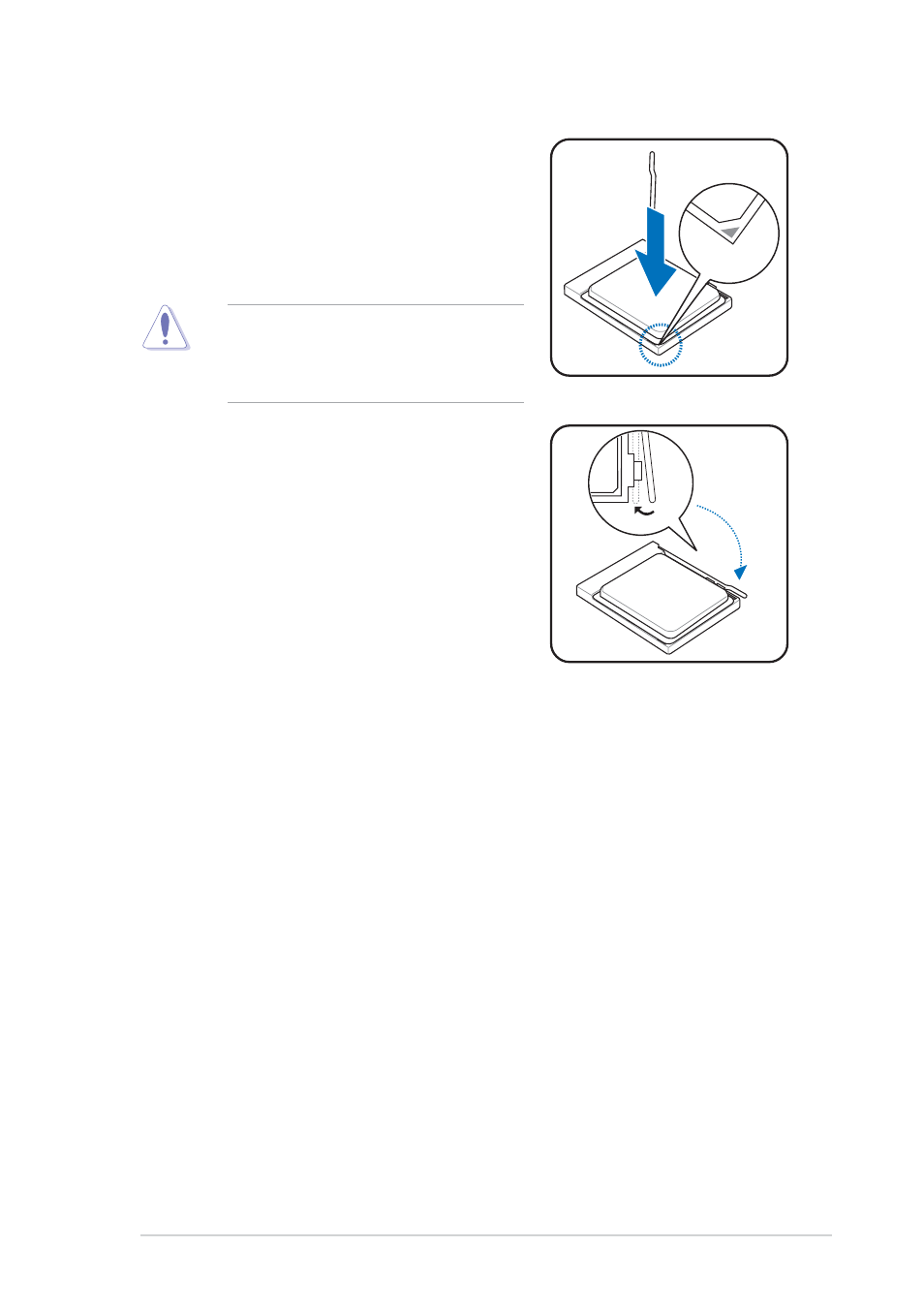

3. Position the CPU above the socket such
that the CPU corner with the gold
triangle matches the socket corner
with a small triangle.
4. Carefully insert the CPU into the socket
until it fits in place.
The CPU fits only in one correct
orientation. DO NOT force the CPU
into the socket to prevent bending
the pins and damaging the CPU!
5. When the CPU is in place, push down
the socket lever to secure the CPU.
The lever clicks on the side tab to
indicate that it is locked.
