Knowing the Parts

Front Side

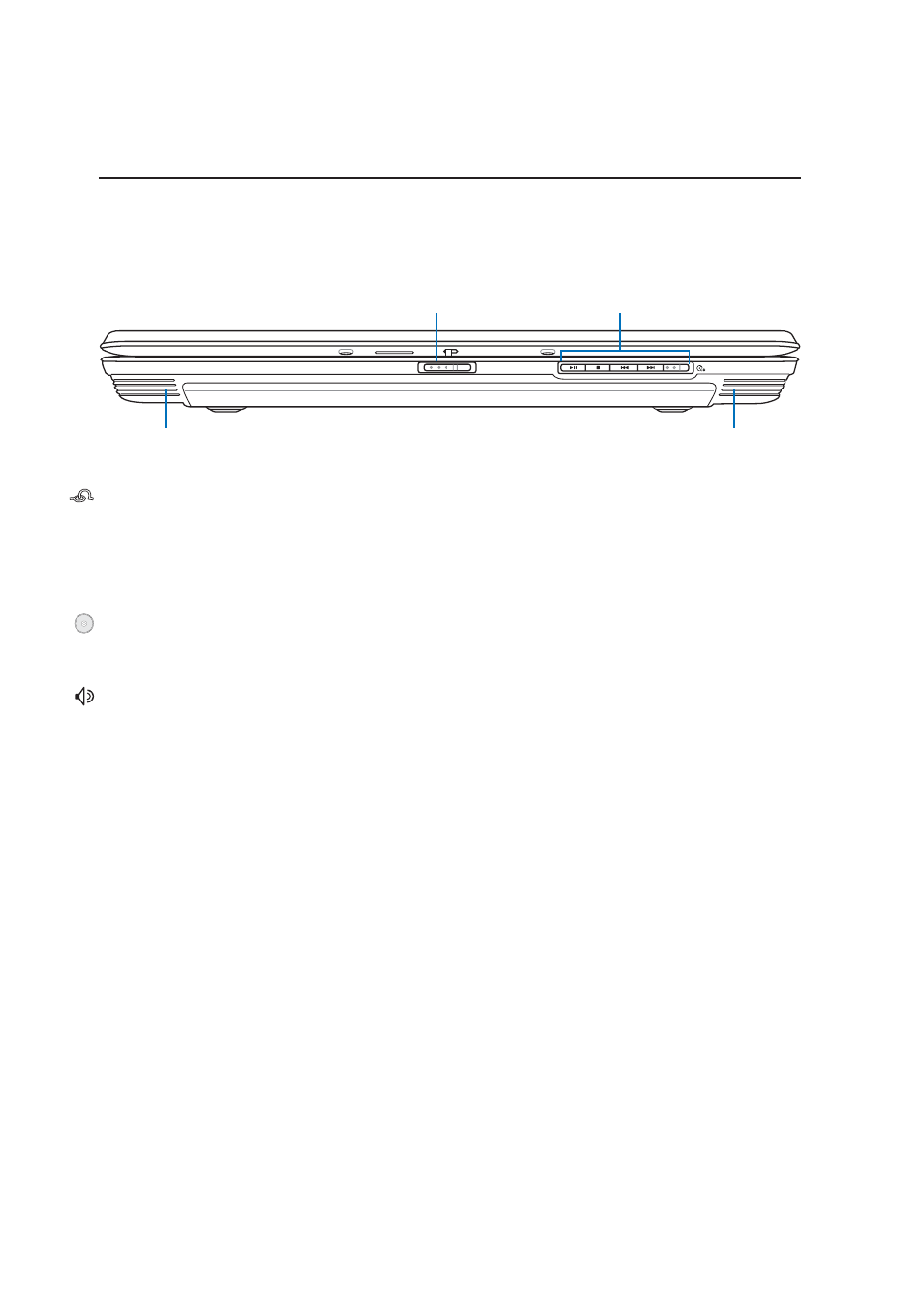

Refer to the diagram below to identify the components on the front side of the Notebook PC.

CD Control Buttons

See Section 3 for details.

Display Panel Latch

A spring-loaded latch on the front of the Notebook PC locks the display panel in the closed position
when the Notebook PC is not in use. To open the display panel, slide the latch to the right with your
thumb and lift up the display panel with the same thumb. Slowly tilt the display panel forward or
backward to a comfortable viewing angle.

Stereo Speakers

The built-in stereo speaker system allows you to hear audio without additional attachments. The multi-
media sound system features an integrated digital audio controller that produces rich, vibrant sound
(results improved with external stereo headphones or speakers). Audio features are software controlled.

Display Panel Latch

CD Control Buttons

(see section 3)

Stereo

Speaker

Stereo

Speaker
