Knowing the Parts
Top Side

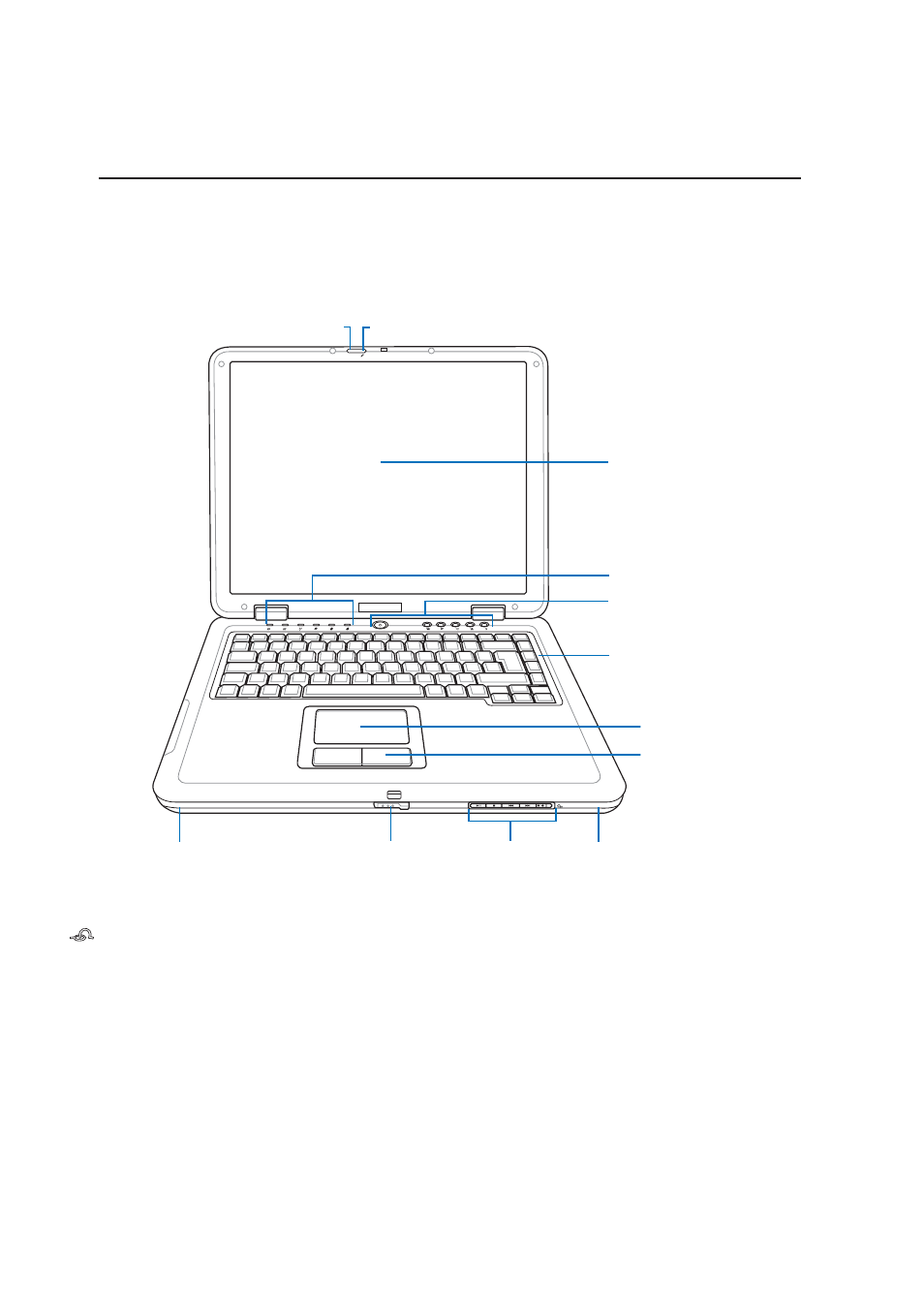

Refer to the diagram below to identify the components on this side of the Notebook PC. Details are
given starting from the top and going clockwise.
Display Panel Latch
A spring-loaded latch on the front of the Notebook PC locks the display panel in the closed position
when the Notebook PC is not in use. To open the display panel, slide the latch to the right with your
thumb and lift up the display panel with the same thumb. Slowly tilt the display panel forward or
backward to a comfortable viewing angle.
Display Panel
Keyboard
Touchpad
CD Control Buttons
(see section 3)
Touchpad Buttons
Status Indicators (see section 3)
Microphone
Power Switch / Instant Keys
Display Panel
Latch
Stereo
Speaker
Stereo
Speaker
Light Sensor
