26. Serial Port COM 2 (COM2, 10-1 pins)
The optional serial port bracket can be used to add an additional serial port for
additional serial devices. You may also purchase the optional TV-Out bracket
which has both TV-Out connectors and a second serial port connector.

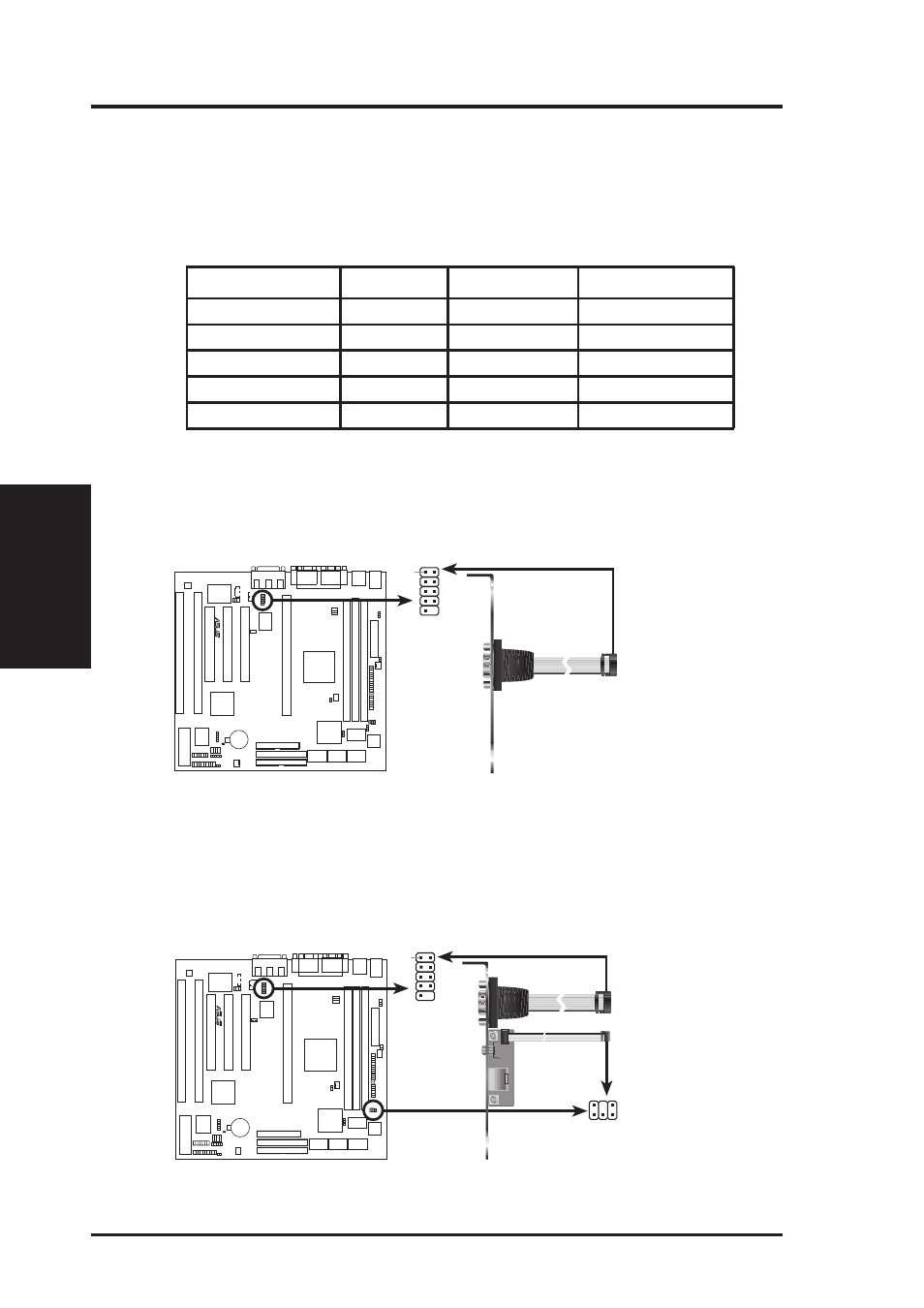

P2L-VM/P2E-VM Serial COM 2 Bracket
R
Pin 1
27. TV-Out (TV-CON, 6-1 pins)
The optional TV-Out bracket allows a standard television to be used to display
images normally displayed on a computer VGA monitor. You must have the
optional ImpacTV2 chip onboard at the time of purchase. A second serial port
connector is also included on the same bracket.
R
P2L-VM/P2E-VM Serial COM 2 + TV-Out Bracket
Pin 1
Power Requirement
It is important that your power supply exceeds the power consumption of all devices
connected to your power supply especially when upgrading your processor. The
following table shows the approximate power consumption of this motherboard with
64MB SDRAM using different processors running a Winstone98 demo, playing an
audio CD, and playing a MIDI file simultaneously.
Processor +5V +12V Total Power
Celeron 4.5A 0.36A 26.82W
Klamath233 7.8A 0.36A 43.32W
Klamath266 8.7A 0.36A 47.82W
Klamath300 8.7A 0.36A 47.82W
Deschutes333 5.1A 0.36A 29.82W
