ASUS P2L-VM/P2E-VM User’s Manual 31
III. INSTALLATION
Connectors
III. INST
ALLA
TION

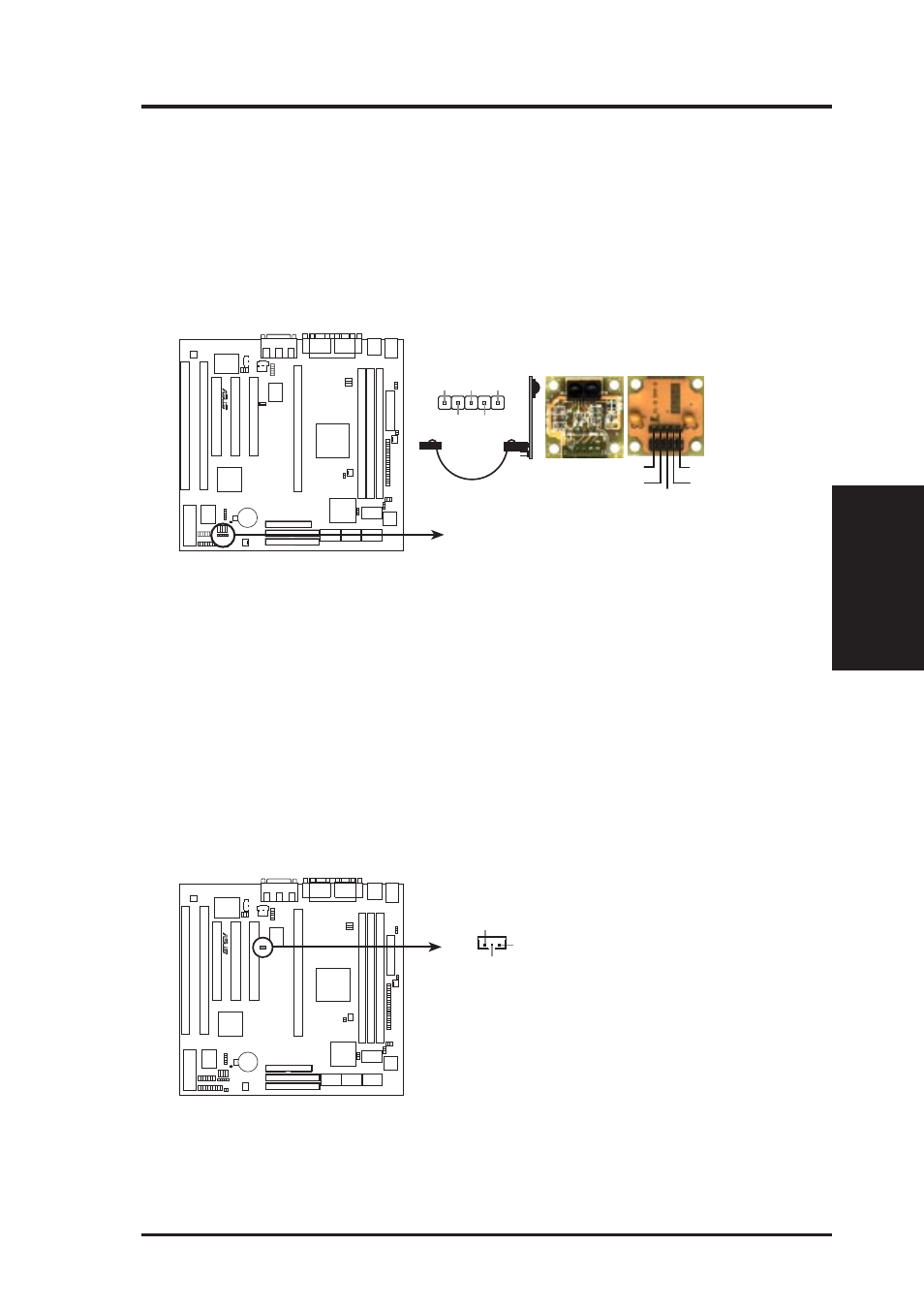

14. IrDA / Fast IR-Compliant infrared module connector (5-pin IR)
This connector supports the optional wireless transmitting and receiving infrared
module. This module mounts to a small opening on system cases that support this
feature. You must also configure the setting through “UART2 Use Infrared” in
Chipset Features Setup to select whether UART2 is directed for use with COM2
or IrDA. Use the five pins as shown on the Back View and connect a ribbon cable
from the module to the motherboard according to the pin definitions.
R
P2L-VM/P2E-VM Infrared Module Connector
Front View
+5V IRTX
IRRX
(NC) GND
Back View
+5V IRRX IRTX
(NC) GND
15. Wake On LAN Connector (3-pin WOL_CON)
These connector connects to LAN cards with a Wake On LAN output, such as
the ASUS PCI-L101 (see ASUS LAN Card section). The connector powers up
the system when a wakeup packet or signal is received through the LAN card.
IMPORTANT: This feature requires that the WAKE On LAN Power Up Con-
trol is set to Enabled (see “Power Management Setup” under BIOS SOFT-
WARE section) and that your system has an ATX power supply with at least
720mA +5V standby power.
R
P2L-VM/P2E-VM Wake on LAN Connector
IMPORTANT: Requires an ATX power
supply with at least 720mA +5-volt
standby power
+5 Volt Standby
PME
Ground
