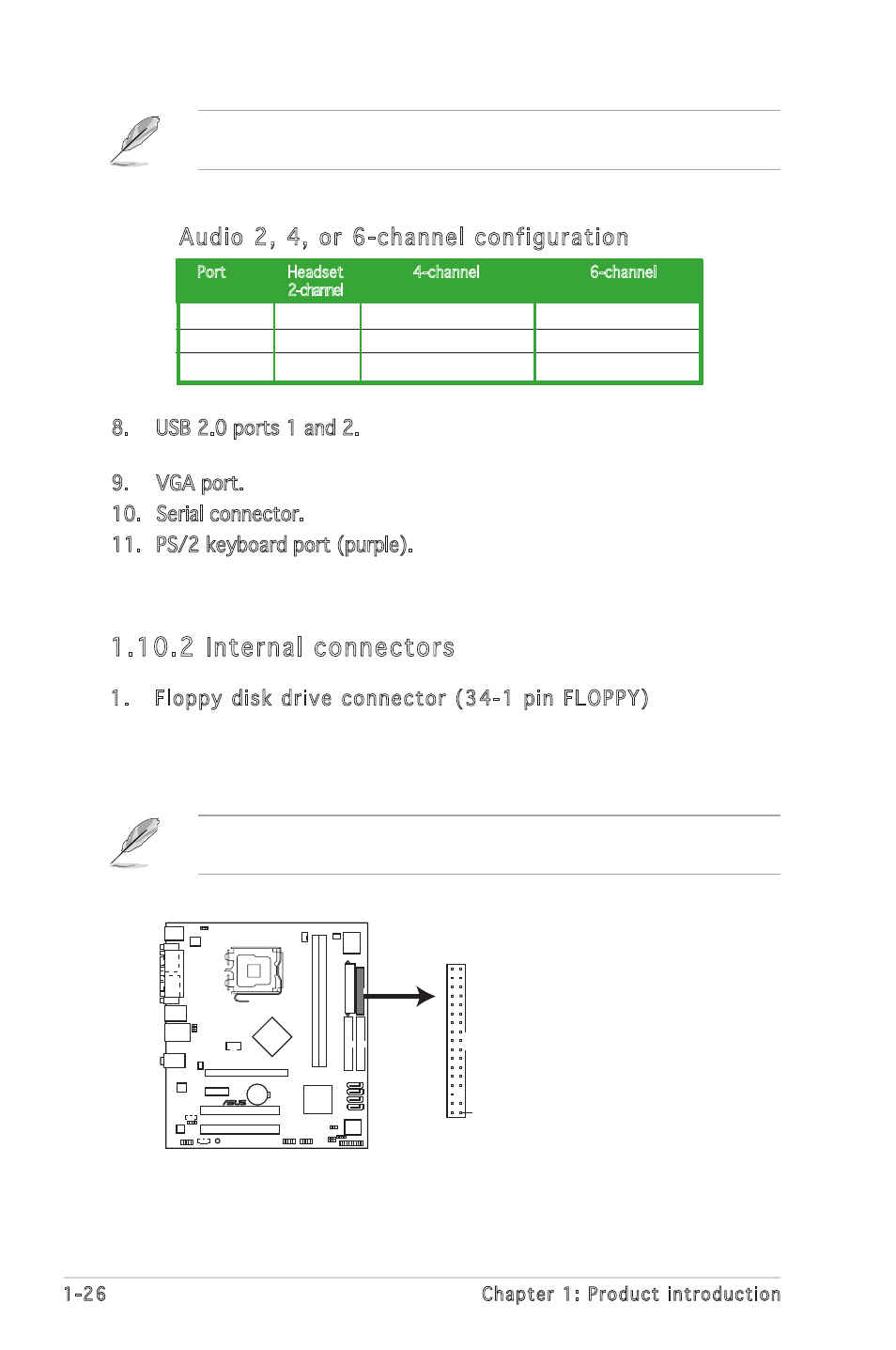

1-26 Chapter 1: Product introduction
8. USB 2.0 ports 1 and 2. These two 4-pin Universal Serial Bus (USB)
ports are available for connecting USB 2.0 devices.
9. VGA port. This 15-pin VGA port connects to a VGA monitor.
10. Serial connector. This 9-pin COM1 port is for serial devices.
11. PS/2 keyboard port (purple). This port is for a PS/2 keyboard.
Audio 2, 4, or 6-channel configuration
Light Blue Line In Surround Speaker Out Surround Speaker Out
Lime Line Out Front Speaker Out Front Speaker Out
Pink Mic In Mic In Center/Sub-woofer
Port Headset 4-channel 6-channel
2-channel
1.10.2 Internal connectors
1. Floppy disk drive connector (34-1 pin FLOPPY)
This connector is for the provided floppy disk drive (FDD) signal cable.
Insert one end of the cable to this connector, then connect the other
end to the signal connector at the back of the floppy disk drive.
Pin 5 on the connector is removed to prevent incorrect cable connection
when using an FDD cable with a covered Pin 5.
NOTE: Orient the red markings on
the floppy ribbon cable to PIN 1.
P5RD2-VM Floppy Disk Drive Connector
PIN 1
FLOPPY
®
P5RD2-VM
Refer to the audio configuration table below for the function of the audio
ports in 2, 4, or 6-channel configuration.
