Asus Xonar D1 User Manual
Page 23
ASUS Xonar D1
No Item
Description
1
Front Out
Connects to the Front input port of the 6.1/7.1 speakers with
the mini-jack cable.
2
Side Surround Out
Connects to the Surround input port of the 6.1/7.1 speakers
with the mini-jack cable.
3
Center/Subwoofer
Connects to the Center/Subwoofer input port of the 6.1/7.1
speakers with the mini-jack cable.
4
Back Surround Out
Connects to the Back Surround input port of the 6.1/7.1
speakers with the mini-jack cable.

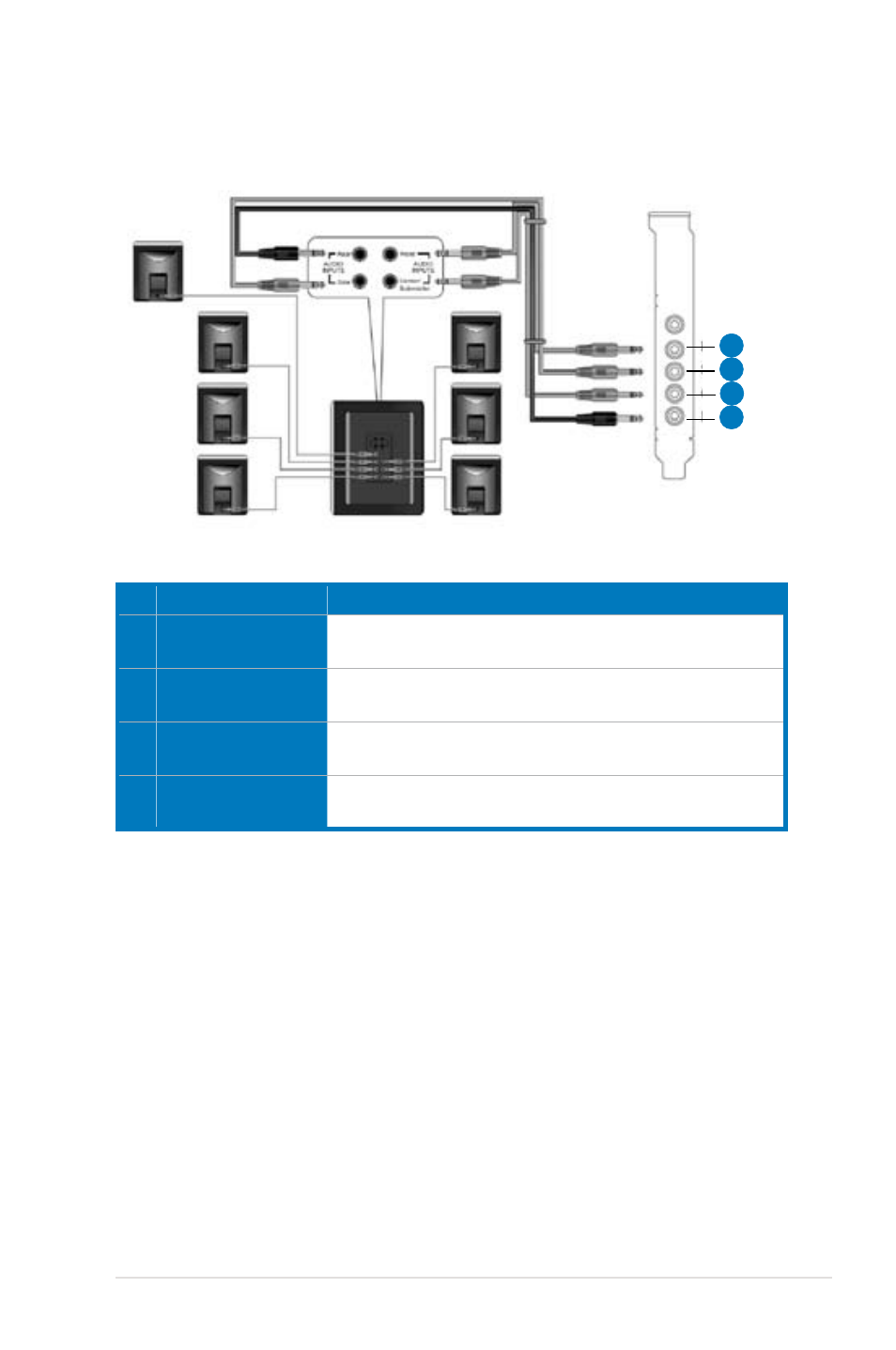

7.1 Speakers
1
2
3
4
