Connecting to a graphics card with HDMI support
1. Install a graphics card with HDMI output support.
. Using the bundled S/PDIF cable, connect one end to the -pin S/PDIF Out
header on the Xonar D1 audio card, and connect the other end to the -pin
S/PDIF In header on the graphics card.

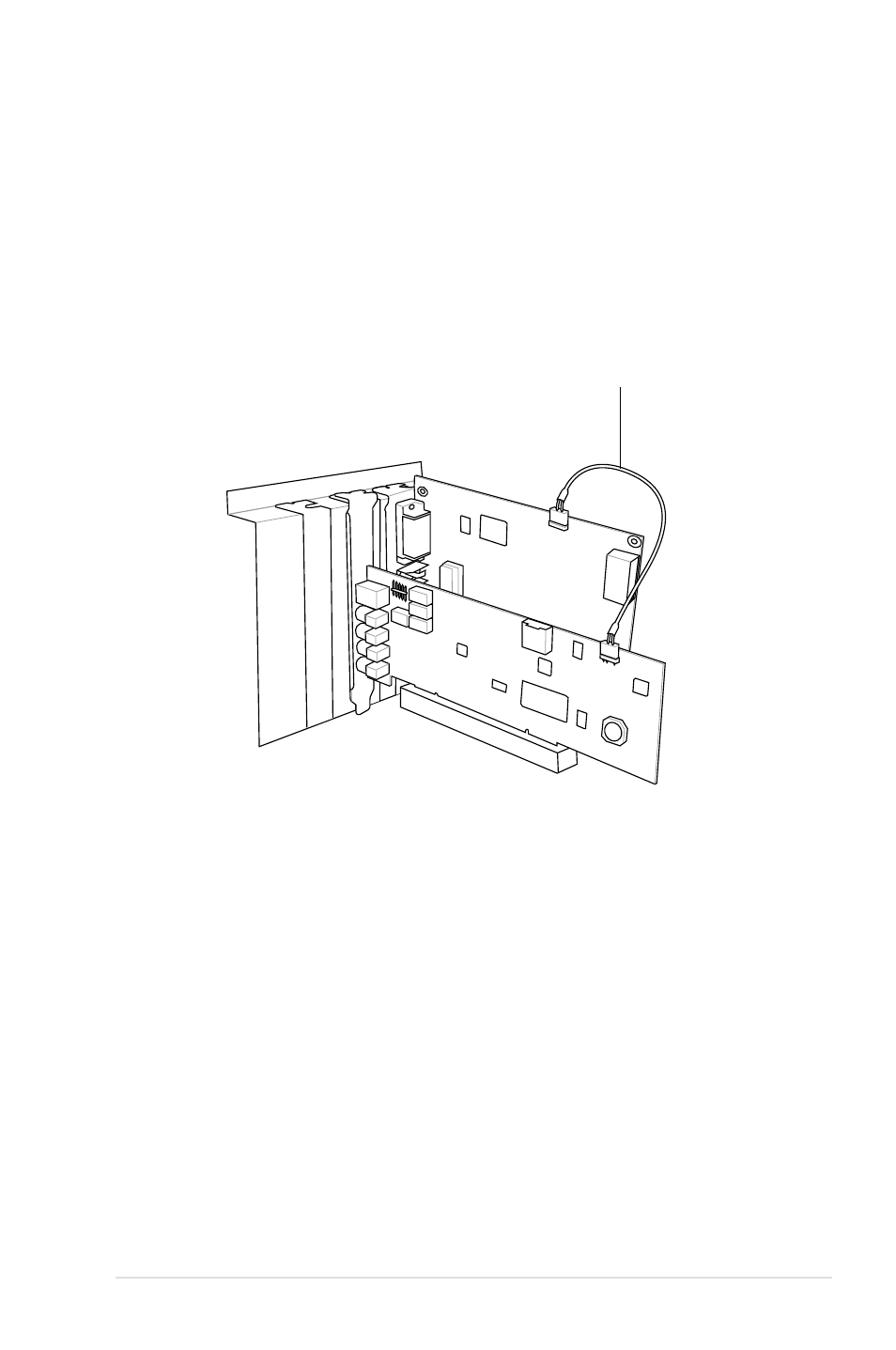

S/PDIF cable
Graphics card
Xonar D1
