2.5.4 2.5.4 2.5.4 2.5.4 2.5.4 PCI/PCI-X slots PCI/PCI-X slots PCI/PCI-X slots PCI/PCI-X slots PCI/PCI-X slots

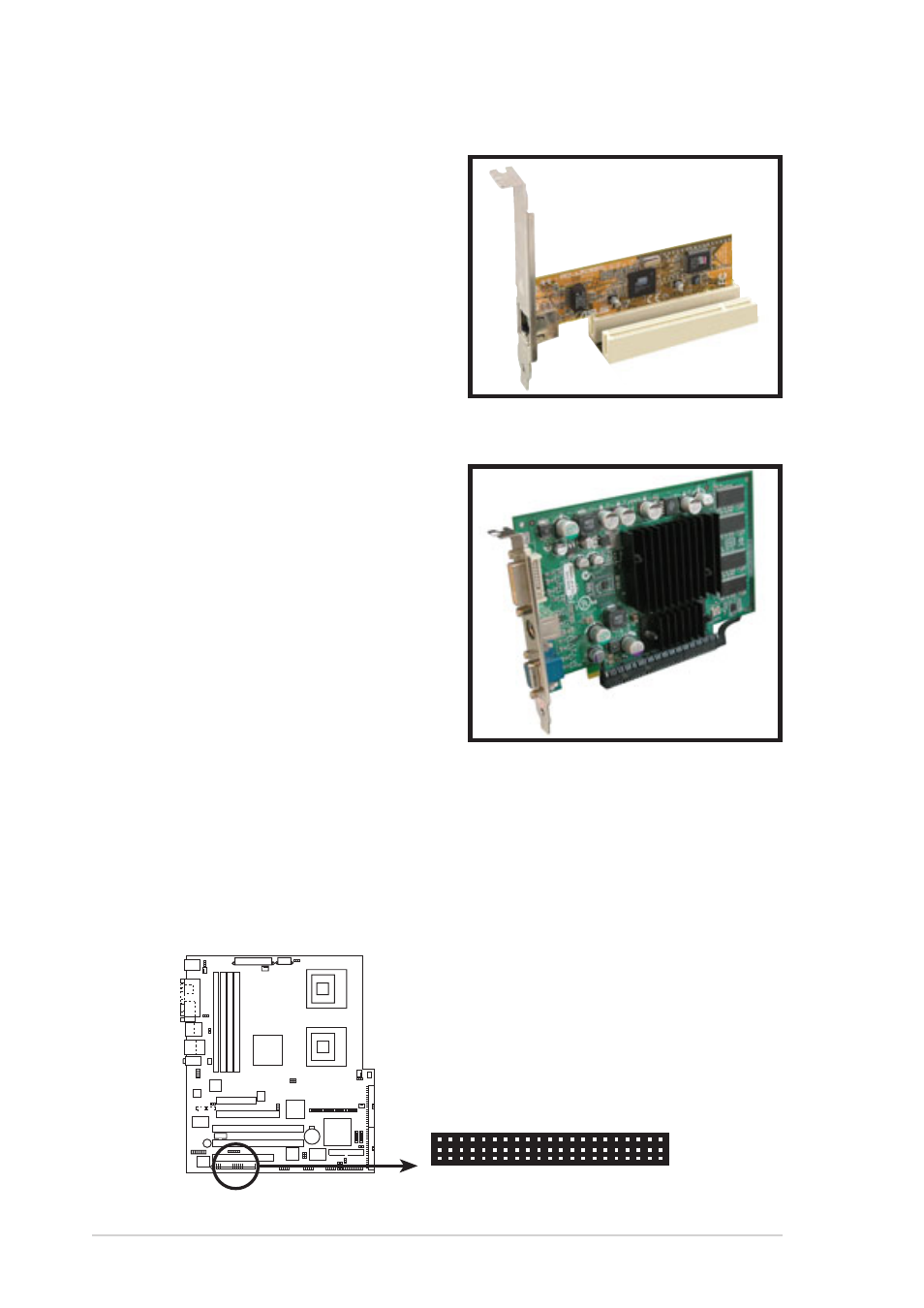

The PCI/PCI-X slots support cards
such as a LAN card, SCSI card, USB
card, and other cards that comply
with PCI 2.3 and PCI-X 1.0a
specifications. The figure shows a
LAN card installed on a PCI slot.
2.5.5 2.5.5 2.5.5 2.5.5 2.5.5 PCI Express™ x8/x16 slots PCI Express™ x8/x16 slots PCI Express™ x8/x16 slots PCI Express™ x8/x16 slots PCI Express™ x8/x16 slots
This motherboard supports PCI
Express™ x16 graphic cards that
comply with the PCI Express™
specifications. The following figure
shows a graphics card installed on
the PCI Express™ x16 slot.
The onboard PCI Express™ x8 slot
provides x4 link to the MCH. This slot
is designed for various server class
high performance add-on cards like
SCSI RAID card, fiber-channel card,
etc.
2.5.6 2.5.6 2.5.6 2.5.6 2.5.6 Wi-Fi slot Wi-Fi slot Wi-Fi slot Wi-Fi slot Wi-Fi slot
The Wi-Fi (Wireless Fidelity) slot supports the ASUS WiFi-b module. Visit
the ASUS website (www.asus.com) for product details.
The Wi-Fi slot conforms to the Institute of Electrical and Electronics
Engineers (IEEE) 802.11b standard for wireless devices operating in the
2.4 GHz frequency band.
NCT-D
NCT-D Wireless module connector
WIFI1
