Chapter 4: Motherboard information 4-2

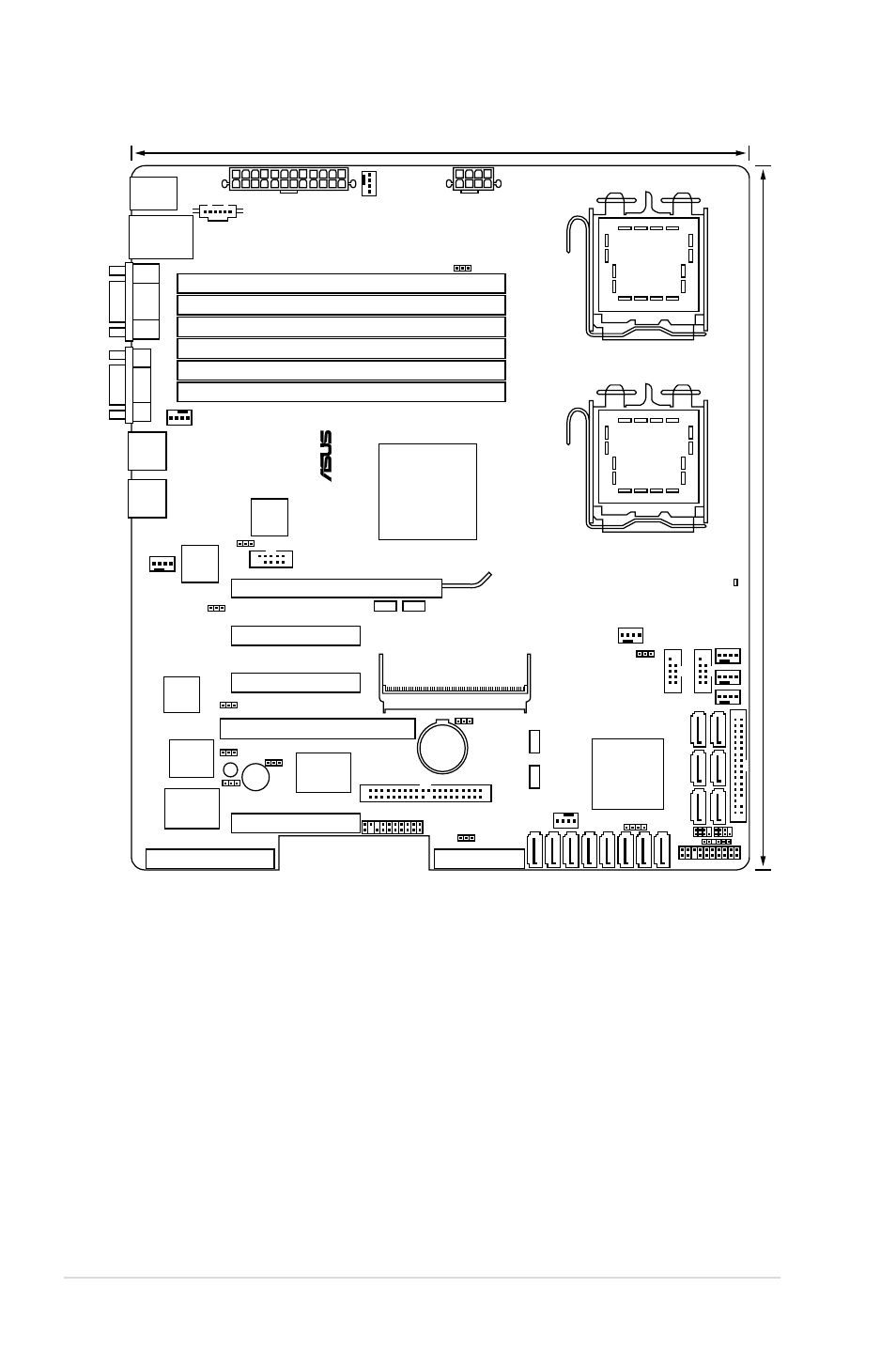

4.1 Motherboard layout
DSAN-DX/RS160-E
5
®
24.5cm (9.6in)
24.5cm (9.6in
)
DDR DIMM_A3 (64bit, 240-pin module)
DDR DIMM_B3 (64bit, 240-pin module)
DDR DIMM_A2 (64bit, 240-pin module)
DDR DIMM_B2 (64bit, 240-pin module)
DDR DIMM_A1 (64bit, 240-pin module)
DDR DIMM_B1 (64bit, 240-pin module)
PCIE1
HDLED
Super
I/O
IT8213F
AMI
8Mb
EATX12V1
USB12_L3
KBMS1
USB56 USB34
FLOPPY1
PRI_EIDE1
PANEL1
SGPIO1
SGPIO2 SGPIO3
SAS8 SAS7 SAS6 SAS5 SAS4 SAS3 SAS2 SAS1
AUX_PANEL1
BCM5721
Intel
5100P MCH
Intel
82801IR
(ICH9R)
BCM5721
LAN1
LAN2
Z9s
VGA_SW1
LAN_SW2
ASMB3
LAN_SW1
REAR_FAN1
REAR_FAN2
VGA
1
COM1
CPU_FAN2
FRNT_FAN1
FRNT_FAN2
FRNT_FAN3
FRNT_FAN4
RAID_SEL1
CPU_WARN1
CPUFAN_SEL1
IBTN_SEL1
COM2
IDE_SW1
CLRTC1
CHAFAN_SEL1
SB_PWR1
BUZZER1
RECOVERY1
PCIE3
PCIE6
PCI4
PCIE2
PIKE1 PIKE2
EATXPWR1
CPU_FAN1
PSUSMB
Lithium Cell
CMOS Power
SATA
5
SATA
6
SATA
3
SATA
4
SATA
1
SATA
2
CPU1
CPU2
