ASUS RS160-E5 1-5

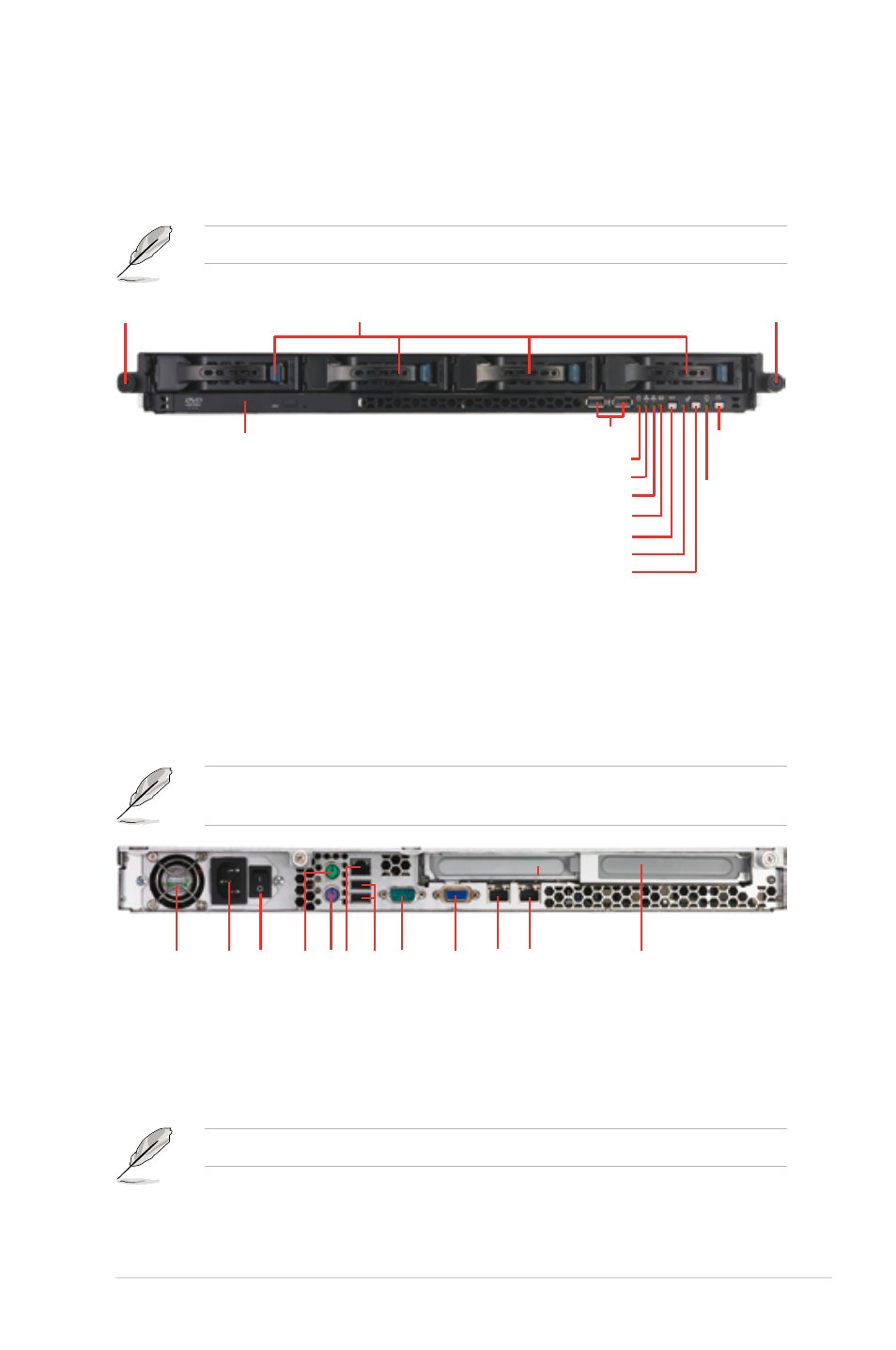

1.4 Front panel features
The barebone server displays a simple yet stylish front panel with easily accessible
features. The power and reset buttons, LED indicators, optical drive, and two USB
ports are located on the front panel.
Refer to section 1.7.1 Front panel LEDs for the LED descriptions.
1.5 Rear panel features
The rear panel includes the expansion slots, system power socket, and rear fans.
The middle part includes the I/O shield with openings for the rear panel connectors
on the motherboard.
The ports for the PS/2 keyboard, PS/2 mouse, USB, VGA, serial port, and
Gigabit LAN do not appear on the rear panel if motherboard is not present.
* This port is for incoming ASUS ASMB3-iKVM controller card only.
Hot-swap HDD bays
Optical drive
Rack screw Rack screw
USB ports
LAN2 LED
HDD Access LED
LAN1 LED
Message LED
Power
button
Power
LED
Location switch
Reset button
Location LED
PS/2 keyboard port USB ports LAN port1 Serial port VGA
port Expansion slots LAN port2 Power supply switch Power cord connector Power supply fan PS/2 mouse port LAN port*
