Chapter 2: Hardware setup

2-2

2.1

Chassis cover

2.1.1

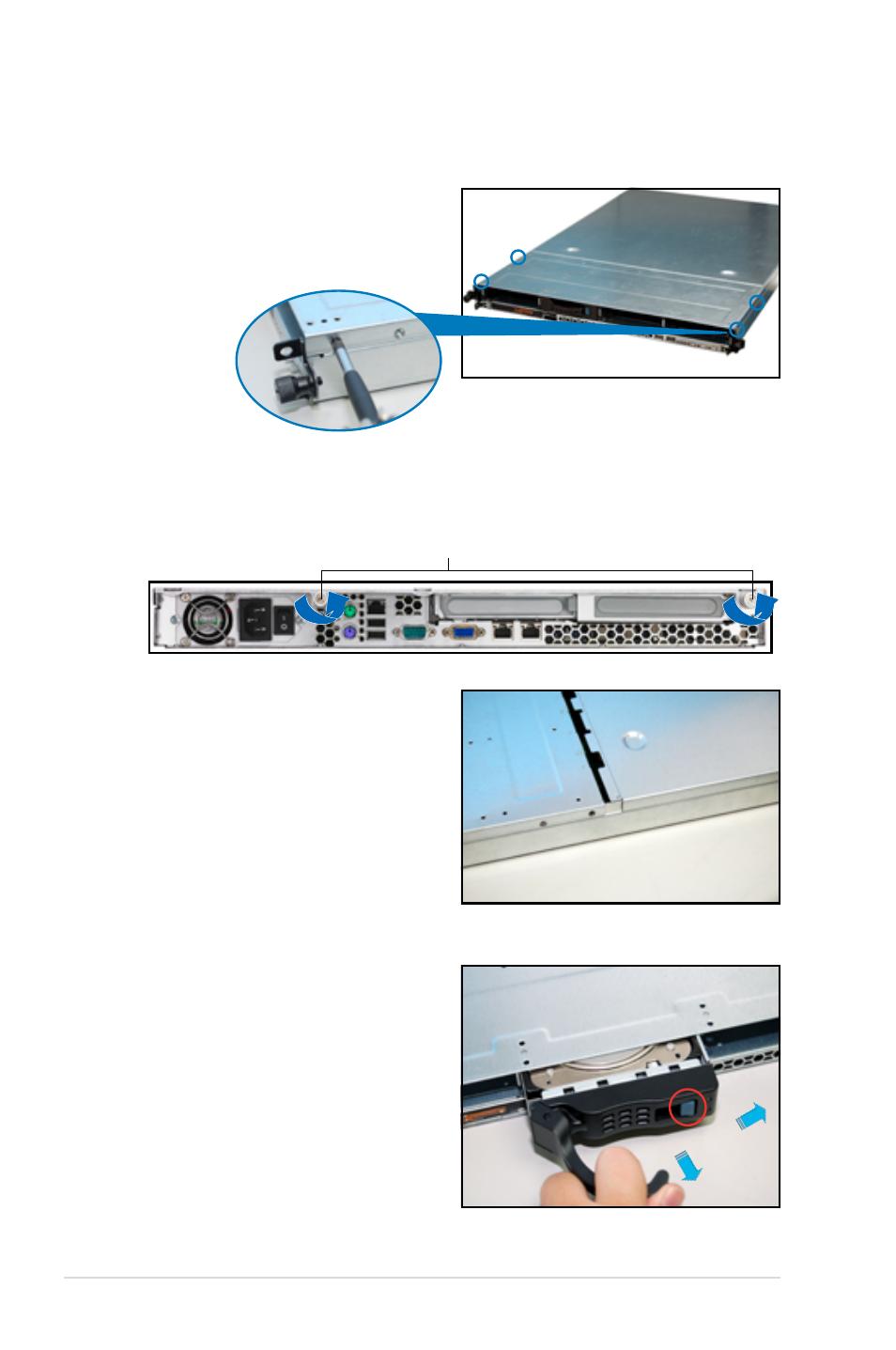

Removing the front cover

1. Use a Phillips screwdriver to remove

the screw on each front end of the

front cover.

3. Firmly hold the front cover and slide

it toward the front panel for about

half an inch until it is disengaged

from the chassis.

2. Loosen the two thumbscrews on the rear panel to release the rear cover from

the chassis.

4. Released a drive tray by pushing

the spring lock to the right. Then ,

firmly hold the tray level and pull all

the drive trays out of the bay.

Thumbscrews
