1.5.3

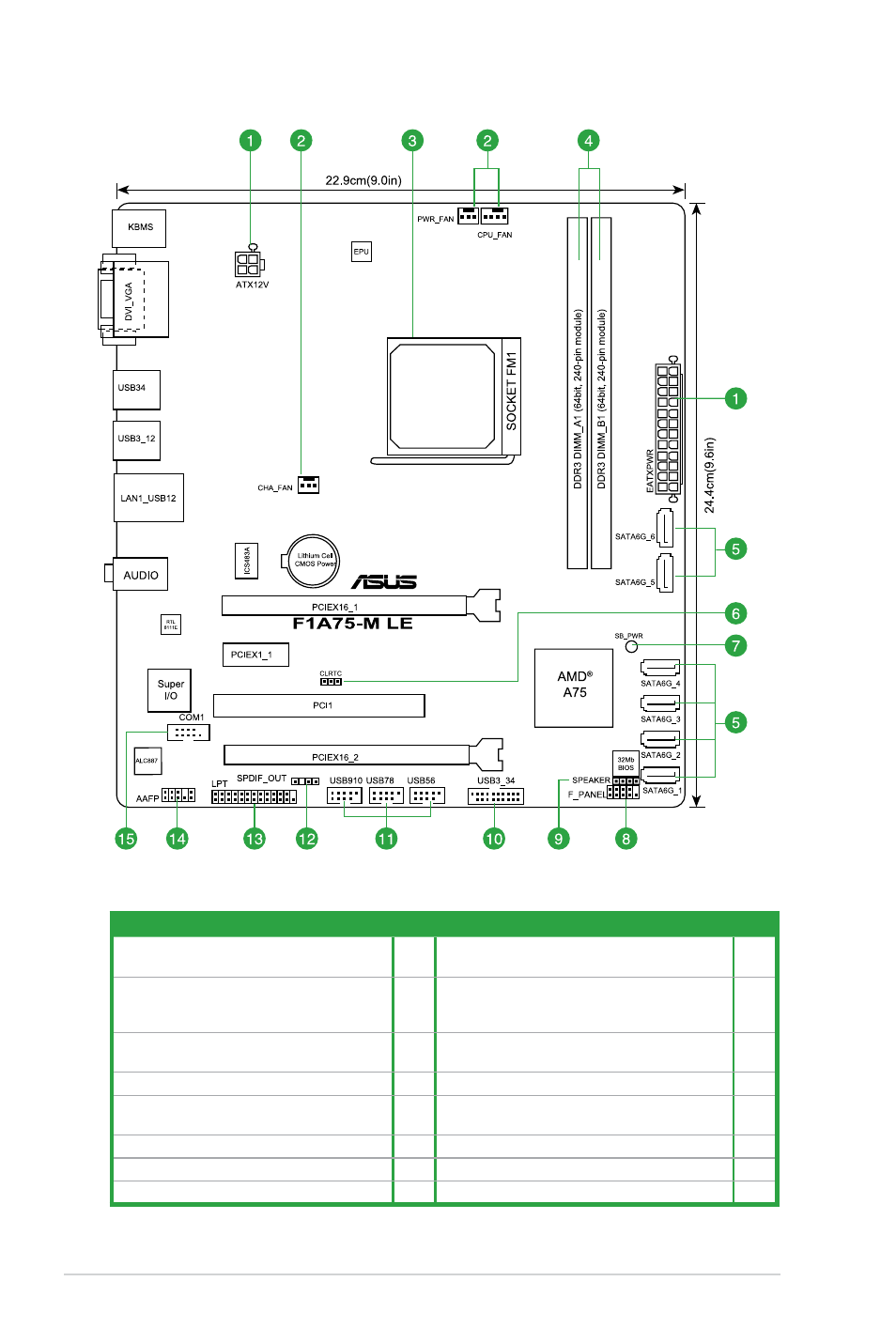

Motherboard layout

1.5.4

Layout contents

Connectors/Jumpers/Slots/LED

Page Connectors/Jumpers/Slots/LED

Page

1. ATX power connectors (24-pin EATXPWR,

4-pin ATX12V)

1-18 9. Speaker connector (4-pin SPEAKER)

1-17

2. Power, CPU and chassis fan connectors

(3-pin PWR_FAN, 4-pin CPU_FAN, and

4-pin CHA_FAN)

1-17 10. USB 3.0 connector (20-1 pin USB3_34)

1-22

3. AMD FM1 socket

1-7

11. USB connectors (10-1 pin USB56, USB78,

USB910)

1-22

4. DDR3 DIMM slots

1-10 12. Digital audio connector (4-1 pin SPDIF_OUT)

1-21

5. SATA 6.0Gb/s connectors (7-pin SATA6G_

1~6)

1-19 13. LPT connector (26-1 pin LPT)

1-20

6. Clear RTC RAM (3-pin CLRTC)

1-14 14. Front panel audio connector (10-1 pin AAFP)

1-21

7. Standby power LED (SB_PWR)

1-4

15. Serial port connector (10-1 pin COM1)

1-19

8. System panel connector (10-1 pin F_PANEL) 1-20

Chapter 1: Product introduction

1-6
