ASUS P8H67-I DELUXE 1-14

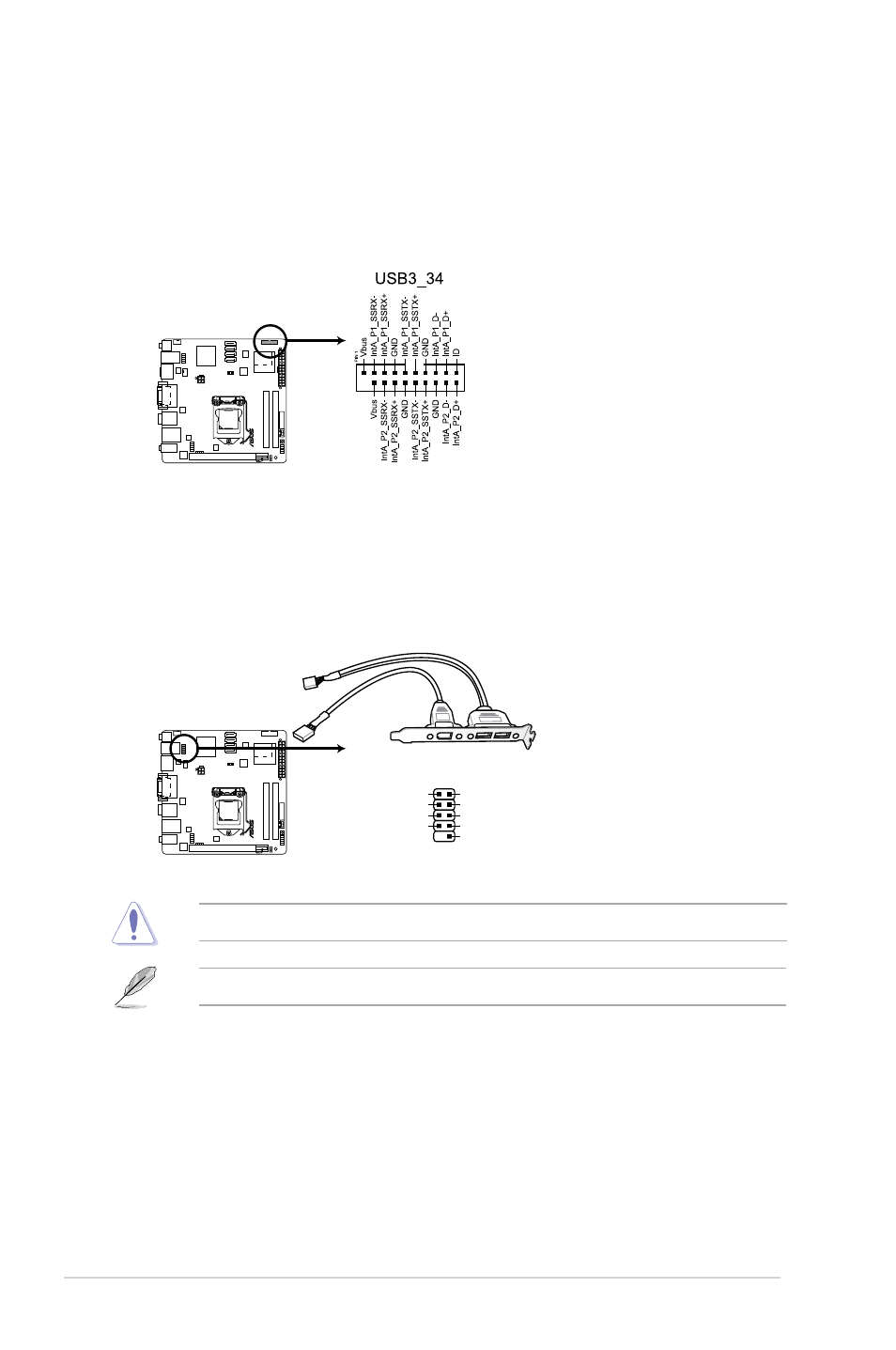

8. USB 2.0 connector (10-1 pin USB56)
This connector is for a USB 2.0 port. Connect the USB module cable to this connector,
then install the module to a slot opening at the back of the system chassis. This USB
connector complys with USB 2.0 specification that supports up to 480 Mbps connection
speed.
Never connect a 1394 cable to the USB connector. Doing so will damage the motherboard!
The USB module cable is purchased separately.
P8H67-I DELUXE
P8H67-I DELUXE USB2.0 connector
PIN 1
USB+5V
USB_P6-
USB_P6+
GND
NC USB+5V
USB_P5-
USB_P5+
GND
USB56
7. USB 3.0 connector (20-1 pin USB3_34)
This connector is for the additional USB 3.0 ports. Connect the USB 3.0 bracket cable
to this connector, then install the USB 3.0 bracket to the rear side of the chassis. If your
chassis support customized front panel installation, with ASUS USB 3.0 header, you
can have a front panel USB 3.0 solution.
P8H67-I DELUX
E
P8H67-I DELUXE USB3.0 front panel connector
