ASUS P8Z68-V LE 1-31

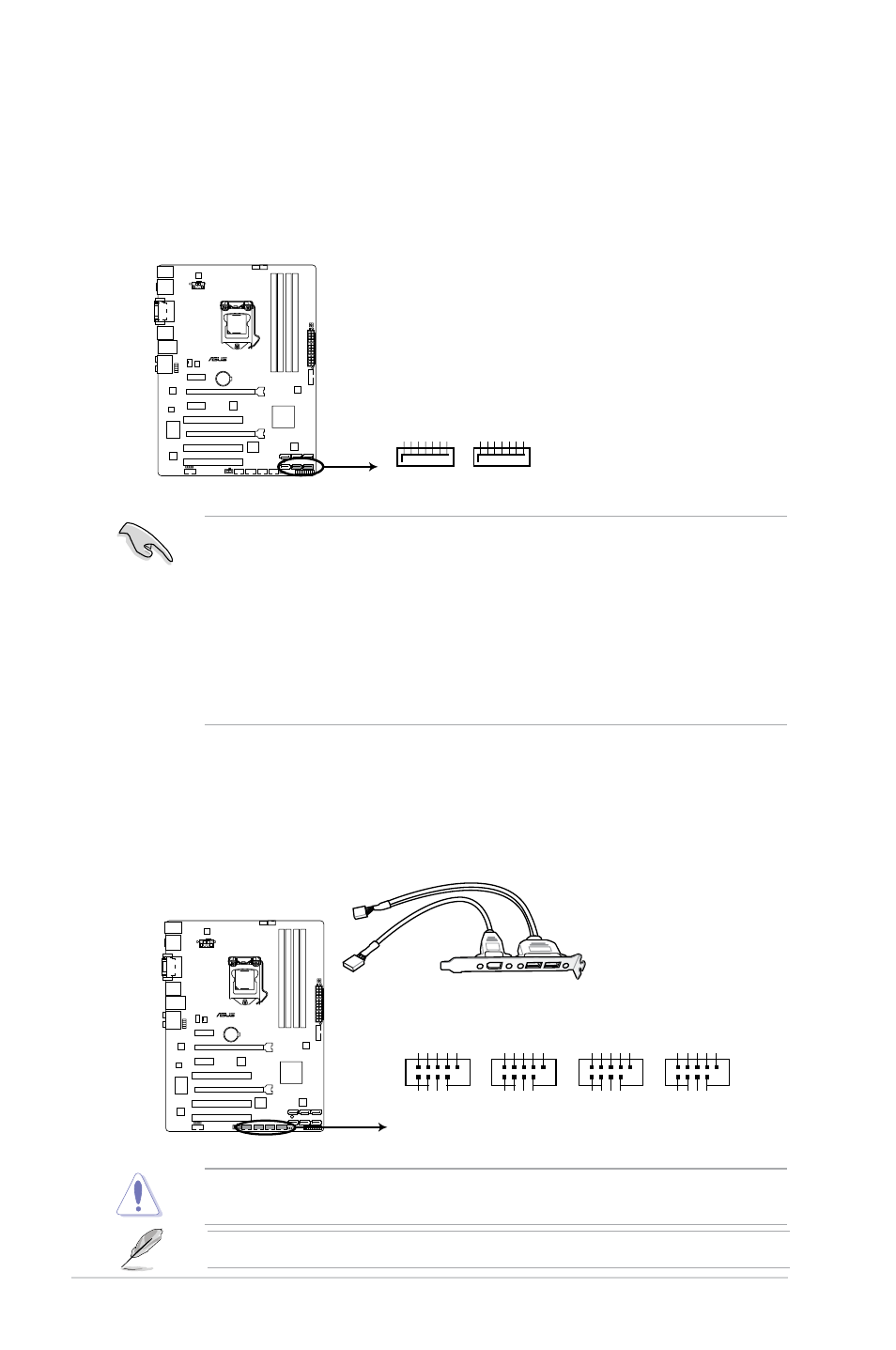

5. Intel ® Z68 Serial ATA 6.0 Gb/s connectors (7-pin SATA6G_1/2 [gray])
These connectors connect to Serial ATA 6.0 Gb/s hard disk drives via Serial ATA 6.0
Gb/s signal cables.
If you installed Serial ATA hard disk drives, you can create a RAID 0, 1, 5, and 10
configuration with the Intel ® Rapid Storage Technology through the onboard Intel ® Z68
chipset.
• These connectors are set to [AHCI Mode] by default. If you intend to create a
Serial ATA RAID set using these connectors, set the SATA Mode item in the
BIOS to [RAID Mode]. Refer to section SATA Configuration for details.
• When using NCQ, set the SATA Mode in the BIOS to [AHCI Mode]. Refer to
section SATA Configuration for details.
• You must install Windows ® XP Service Pack 3 or later versions before using
Serial ATA hard disk drives. The Serial ATA RAID feature is available only if
you are using Windows ® XP SP3 or later versions.
SATA6G_1 SATA6G_2
GN
D
RSATA_RXN1 RSATA_RXP1 GN
D
RSATA_TXN1 RSATA_TXP1 GN
D
GN
D
RSATA_RXN2 RSATA_RXP2 GN
D
RSATA_TXN2 RSATA_TXP2 GN
D
P8Z68-V LE
P8Z68-V LE SATA 6.0Gb/s connectors
6. USB 2.0 connectors (10-1 pin USB5~12)
These connectors are for USB 2.0 ports. Connect the USB module cable to any of
these connectors, then install the module to a slot opening at the back of the system
chassis. These USB connectors comply with the USB 2.0 specification that supports up
to 480Mbps connection speed.
Never connect a 1394 cable to the USB connectors. Doing so will damage the
motherboard!
The USB 2.0 module is purchased separately.
P8Z68-V LE
P8Z68-V LE USB2.0 connectors
USB+5V USB_P10- USB_P10+ GND NC
USB+5V USB_P9- USB_P9+
GND
USB910
PIN 1
USB+5V USB_P12- USB_P12+ GND NC
USB+5V
USB_P11- USB_P11+
GND
USB1112
PIN 1
USB+5V USB_P8- USB_P8+ GND NC
USB+5V USB_P7- USB_P7+
GND
USB78
PIN 1
USB+5V USB_P6- USB_P6+ GND NC
USB+5V USB_P5- USB_P5+
GND
USB56
PIN 1
