4. Serial ATA 3.0 Gb/s connectors (7-pin SATA3G_1~4)
These connectors are for the Serial ATA 3.0 Gb/s signal cables for Serial ATA hard
disk drives and optical disc drives. If you installed Serial ATA hard disk drives, you can
create a RAID 0, RAID 1, or RAID 10 configuration through the onboard controller.
• These connectors are set to IDE mode by default. In IDE mode, you can connect Serial
ATA boot/data hard disk drives to these connectors. If you intend to create a Serial ATA
RAID set using these connectors, set the type of the SATA connectors in the BIOS to
[RAID]. See section 2.5.2 SATA Configuration for details.
• You must install Windows ® XP Service Pack 3 or later version before using Serial
ATA hard disk drives. The Serial ATA RAID feature is available only if you are using
Windows ® XP SP3 or later version.
• When using hot-plug and NCQ, set the type of the SATA connectors in the BIOS to
[AHCI]. See section 2.5.2 SATA Configuration for details.
SATA3G_1
GND RSATA_RXP1 RSATA_RXN1 GND RSATA_TXN1 RSATA_TXP1 GND
SATA3G_2
GND
RSATA_TXP2 RSATA_TXN2
GND
RSATA_RXN2 RSATA_RXP2
GND
SATA3G_4
GND
RSATA_TXP4
RSATA_TXN4
GND
RSATA_RXN4
RSATA_RXP4
GND
SATA3G_3
GND
RSATA_TXP3
RSATA_TXN3
GND
RSATA_RXN3
RSATA_RXP3
GND
F1A55-M LK R2.0

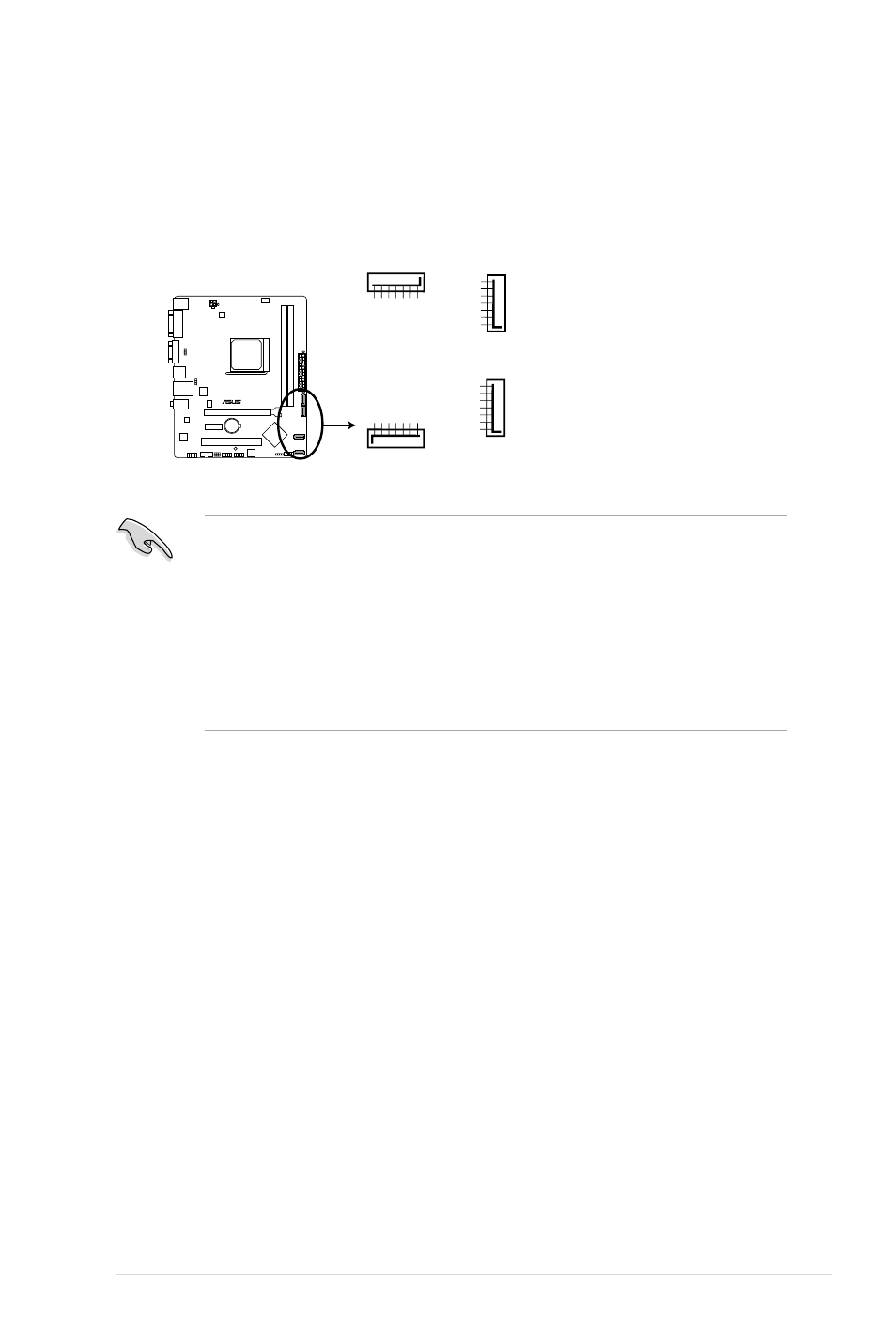

F1A55-M LK R2.0 SATA 3.0Gb/s connectors
ASUS F1A55-M LK R2.0 1-23
