ASUS P5Q SE/R 2-27

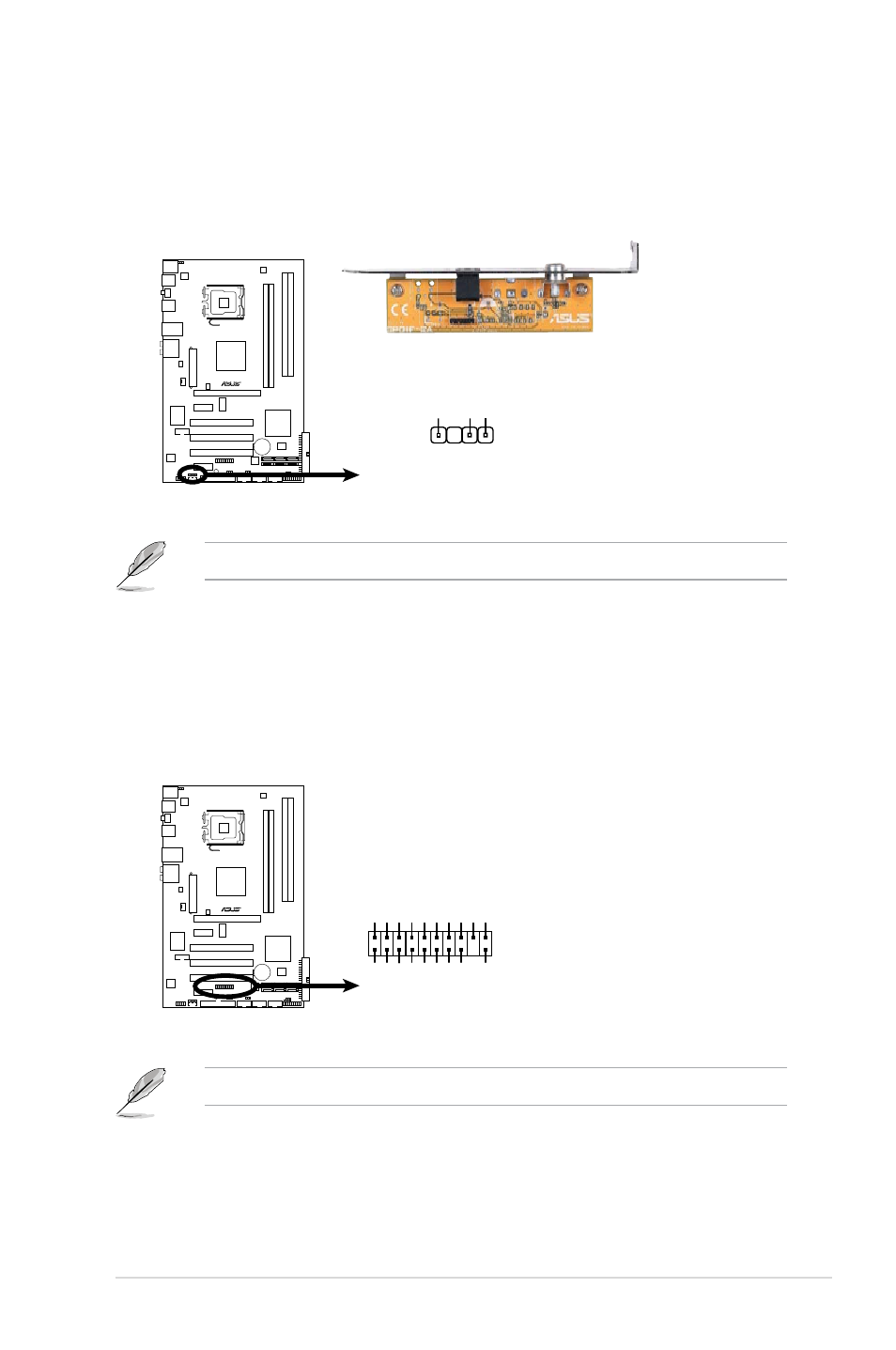

4. Digital audio connector (4-1 pin SPDIF_OUT)
This connector is for an additional Sony/Philips Digital Interface (S/PDIF)
port(s). Connect the S/PDIF Out module cable to this connector, then install
the module to a slot opening at the back of the system chassis.
The S/PDIF module is purchased separately.
P5Q SE/R
P5Q SE/R Digital Audio Connector
+5
V
SPDIFOU
T
GN
D
SPDIF_OUT
5. TPM connector (20-1 pin TPM)
This connector supports a Trusted Platform Module (TPM) system, which
can securely store keys, digital certificates, passwords, and data. A TPM
system also helps enhance network security, protects digital identities, and
ensures platform integrity.
The TPM model is purchased separately!
P5Q SE/R
P5Q SE/R TPM Connector
TPM
3.3V AD
0
PWRDW#
AD
1
AD
2
SERIRQ# CLKRUN#
NC
GN
D
PCICLK FRAME#
NC
PCIRST
#
AD
3
GN
D
3.3VSB
GN
D
NC NC
