2. IDE connectors (40-1 pin PRI_IDE, SEC_IDE)
The onboard IDE connectors are for Ultra DMA 133/100/66 signal cables.
There are three connectors on each Ultra DMA 133/100/66 signal cable:
blue, black, and gray. Connect the blue connector to the motherboard’s
IDE connector, then select one of the following modes to configure your
device(s).
• Pin 20 on the IDE connector is removed to match the covered hole on
the Ultra DMA cable connector. This prevents incorrect insertion when
you connect the IDE cable.
• Use the 80-conductor IDE cable for Ultra DMA 133/100/66 IDE devices.
Black or gray
Drive jumper Mode Cable
setting of device(s) connector
Single device Cable-Select or Master - Black
Two devices Cable-Select Master Black
Slave Gray
Master Master
Slave Slave
If any device jumper is set as “Cable-Select,” make sure all other device
jumpers have the same setting.
R
KFN4-DRE

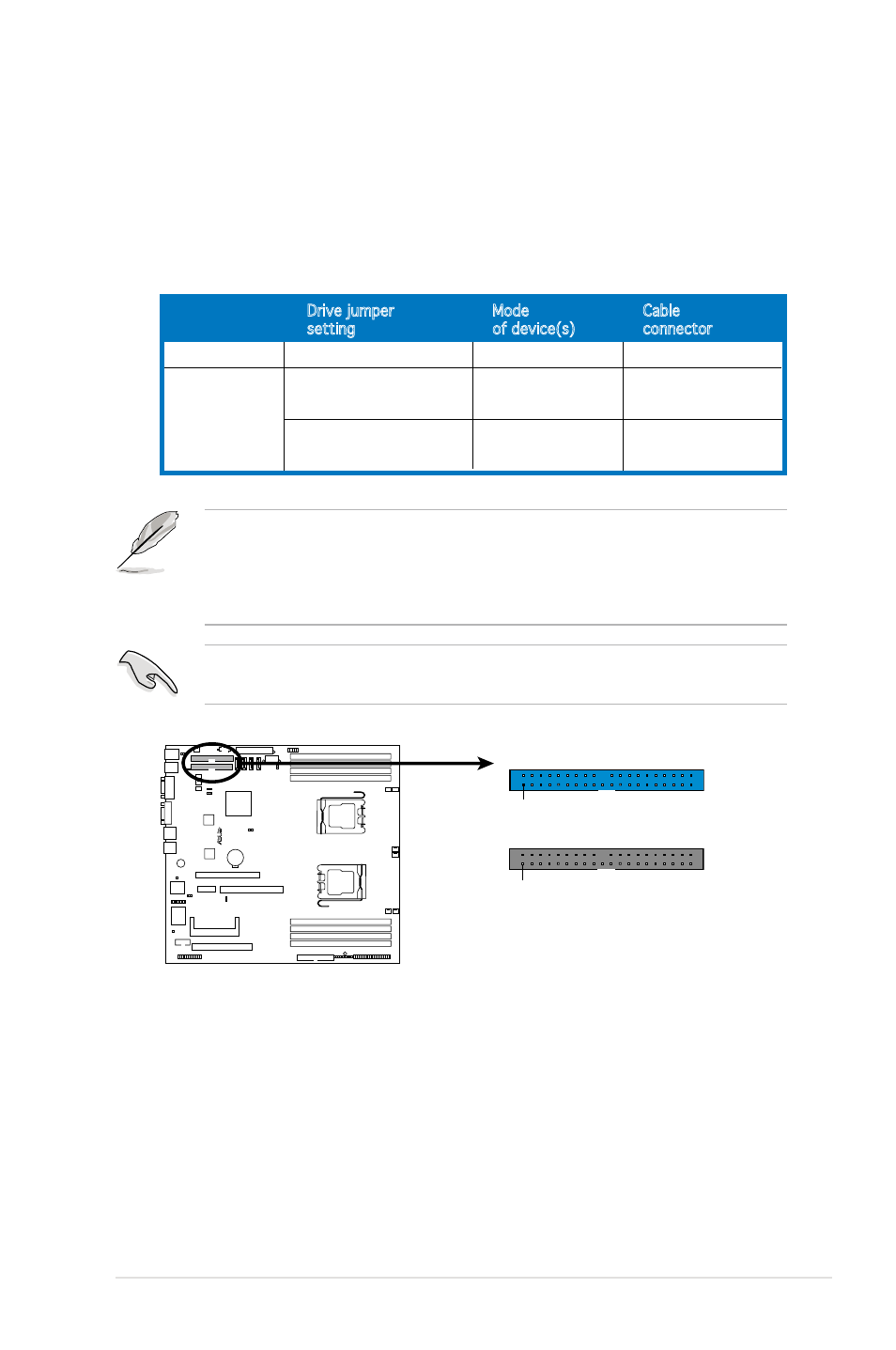

KFN4-DRE IDE Connectors
PRI_IDE1
SEC_IDE1
NOTE: Orient the red markings
(usually zigzag) on the ID
ribbon cable to PIN 1.
PIN1
PIN1
