Chapter 1: Product introduction 1-16

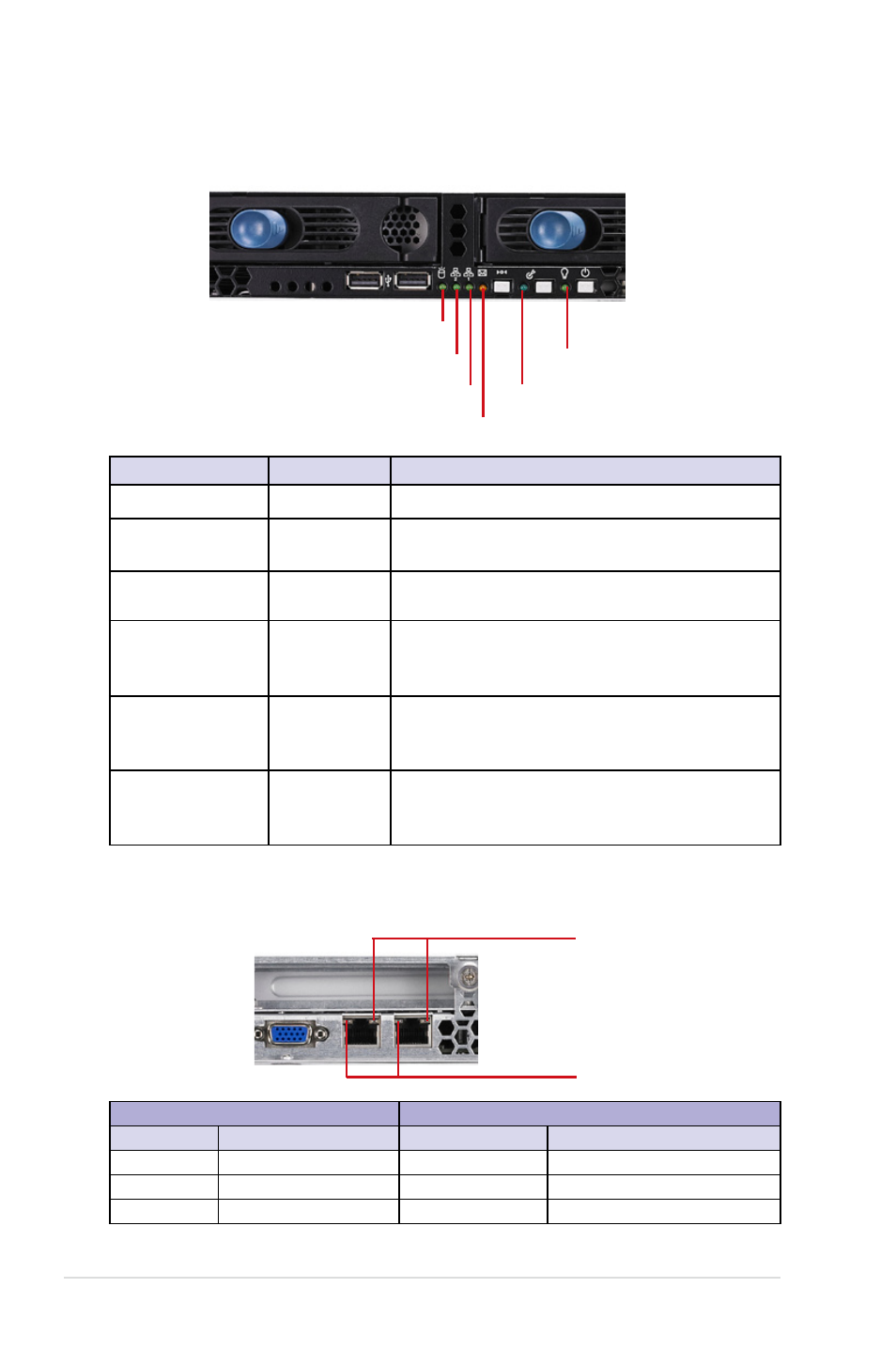

1.6 LED information
HDD Access LED
LAN2 LED
LAN1 LED
Message LED
Location LED
Power LED
LED Display status Description
Power LED ON System power ON
HDD Access LED OFF
Blinking
No activity
Read/write data into the HDD
HDD Status access ON
OFF
HDD is present
No HDD present
Message LED OFF
ON
System is in normal condition; no incoming event
ASWM detects a system problem;
(Log in to ASWM to identify and resolve)
Location LED OFF
ON
Normal status
Location switch is pressed
(Press the location switch again to turn off)
LAN LEDs OFF
Blinking
ON
No LAN connection
LAN is transmitting or receiving data
LAN connection is present
1.6.1 Front panel LEDs
1.6.2 Rear panel LEDs
ACT/LINK LED SPEED LED
Status Description Status Description
OFF No link OFF 10Mbps connection
Green Linked Orange 100Mbps connection
Blinking Linking Green 1000Mbps connection
SPEED LED
ACT/LINK LED
