C h a p t e r 2 : H a r d w a r e s e t u p
C h a p t e r 2 : H a r d w a r e s e t u p
C h a p t e r 2 : H a r d w a r e s e t u p
C h a p t e r 2 : H a r d w a r e s e t u p
C h a p t e r 2 : H a r d w a r e s e t u p
2 - 2 4
2 - 2 4
2 - 2 4
2 - 2 4
2 - 2 4

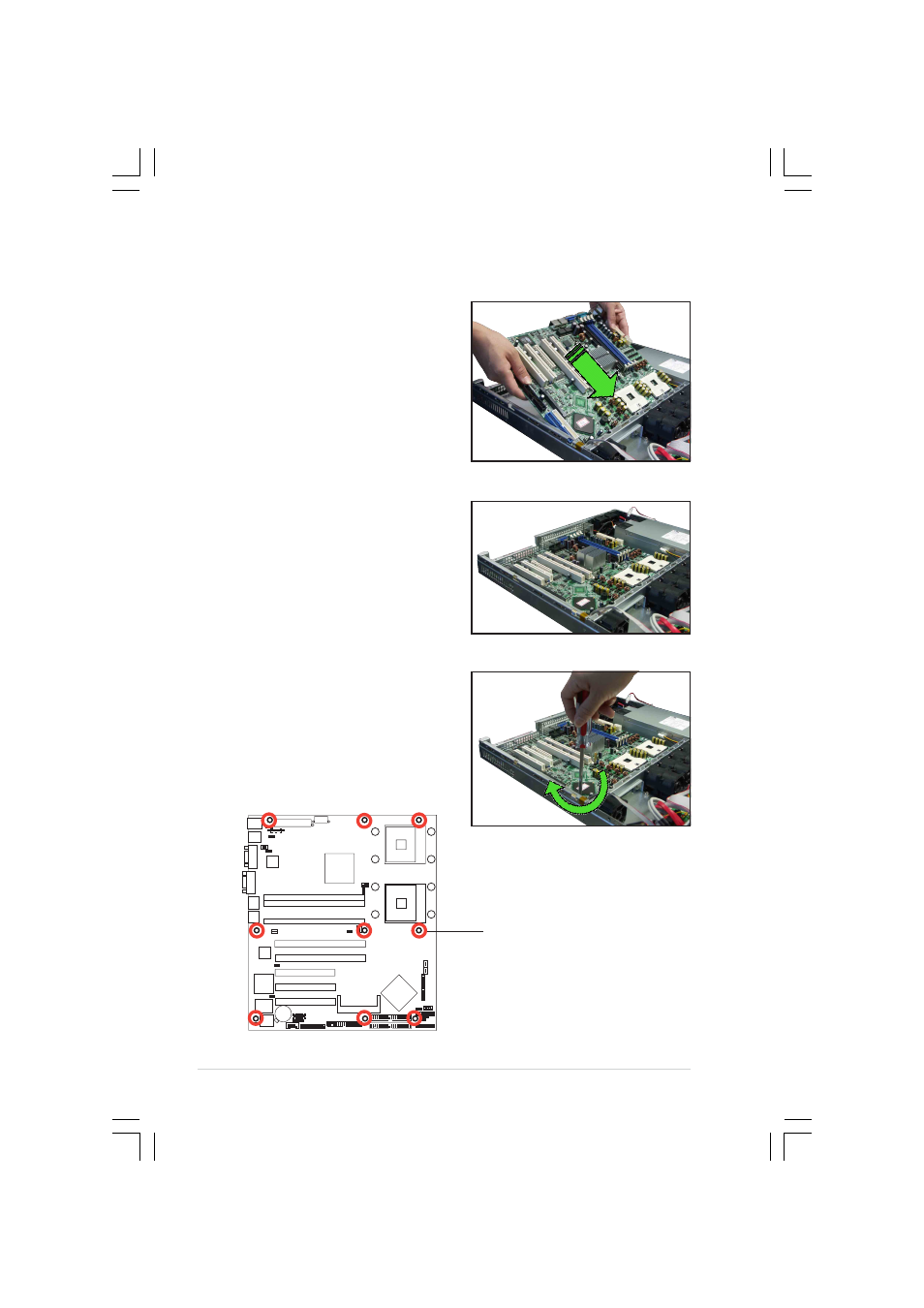

To reinstall the motherboard:
1.
Firmly hold the motherboard by
the sides and insert it into the
chassis as shown.
3.
Use a Phillips (cross) screwdriver
to secure the motherboard with
nine (9) screws in the holes as
shown.
2.
Carefully adjust the motherboard
until the rear panel ports fit in
place.
NCCH-DR
S c r e w h o l e
S c r e w h o l e
S c r e w h o l e
S c r e w h o l e
S c r e w h o l e
