C h a p t e r 2 : H a r d w a r e s e t u p C h a p t e r 2 : H a r d w a r e s e t u p C h a p t e r 2 : H a r d w a r e s e t u p C h a p t e r 2 : H a r d w a r e s e t u p C h a p t e r 2 : H a r d w a r e s e t u p 2 - 2 0 2 - 2 0 2 - 2 0 2 - 2 0 2 - 2 0
2.7.3 2.7.3 2.7.3 2.7.3 2.7.3 Power supply module Power supply module Power supply module Power supply module Power supply module

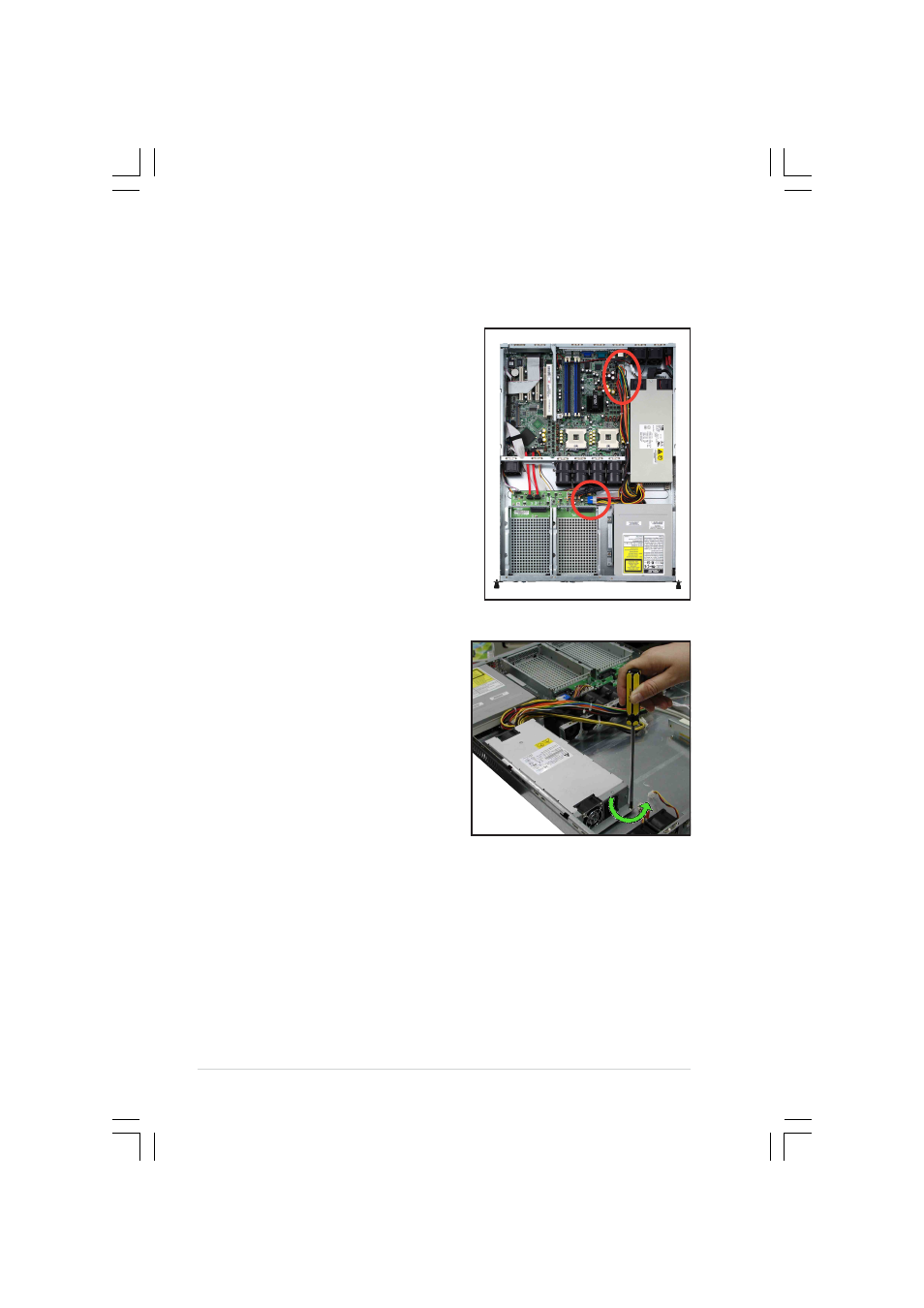

To uninstall the power supply module:
1. Disconnect all the power cables
connected to the motherboard and
other system devices.
3. Slide the power supply backward for about half an inch, then carefully
lift it out from the chassis.
2. Use a Phillips (cross) screwdriver
to remove the screw the secures
the front end of the power
supply.
