The Technical Stuff
_____________________________________________________________
30
Input Section

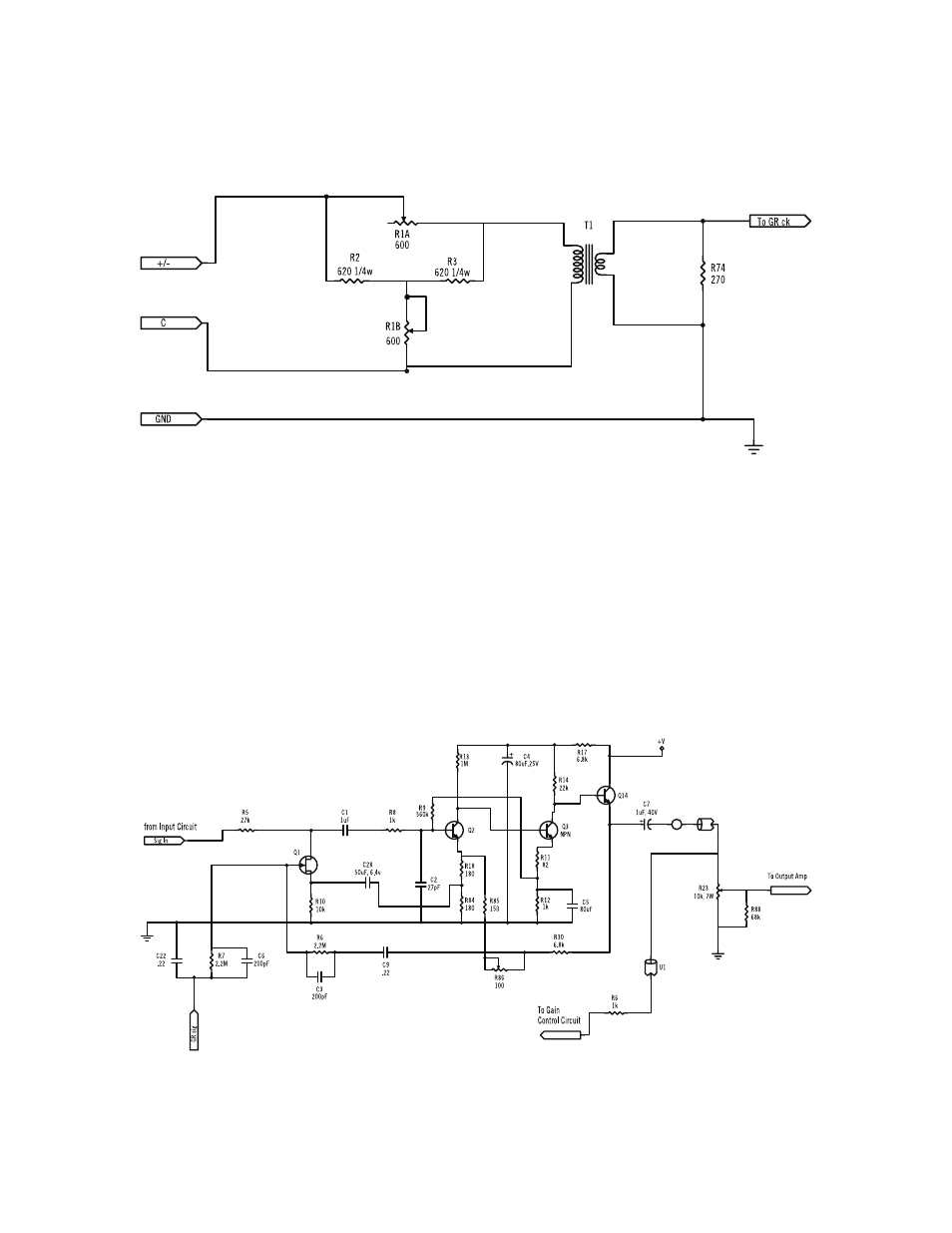

Figure 2 - Input Section
As shown in Figure 2, the 1176LN input section is comprised of an adjustable passive attenuator
followed by a transformer. The purpose of this section is to reduce the signal level so as not to
overdrive the FET based gain reduction stage. Additionally, the adjustable input level is used to control
the amount of compression. This input circuit was used in Revisions A-F. With Revision G, a
differential op-amp input instead of the attenuator / transformer input stage was used.
Gain Reduction Stage
Figure 3 - Gain Reduction Stage
