WARNING!
• Disconnect battery before installation
• Do not allow charging lug to come in contact with the chassis or body at
any time - Electrical Damage Will Occur.
BRACKET MOUNTING
• Cut out the template provided and tape to chassis in desired position.
• Center punch hole centers & drill mount holes with a #7 or 13/64” drill bit.
• De-burr all edges and paint exposed bare metal for corrosion protection.
• Apply Loc-Tite to threads on the 1/4-20 socket head cap screw & thread
cap screw thru bracket and chassis.
• Finish by installing 1/4” washer and nut and tighten firmly.
MALE LUG ASSEMBLY (From Charger)
• Slide plastic handle over cable then strip approximately 3/4” of cable
insulation (Note: works with 1 or 2 gauge cable).
• Insert the exposed wire completely into the charging lug and secure with
the 3/8-16 socket set screw.
• Next slide the plastic handle over male charging lug and secure with
#8-32 socket head cap screw.

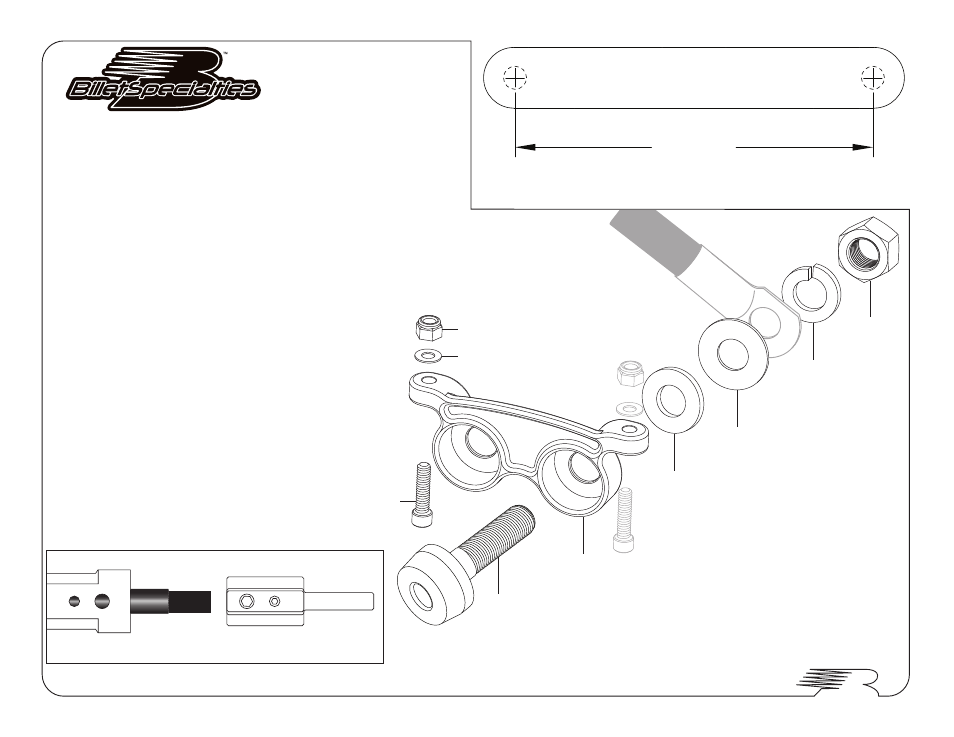

FEMALE CHARGING RECEPTACLE
See Illustration at right.
#248850 / #248855 - Battery Lug Bracket Chassis Mount
4.125”
DRILL TEMPLATE - USE #7 or 13/64” Drill Bit
1/4-20 Lock Nut
1/4” Flat Washer
1/4-20 x 1”
Socket Head Cap Screw
Nylon Bung with Female Charging Lug
Chassis Mount Battery Lug Bracket
Nylon Lug Washer
Flat Washer
Lock Washer
1/2-20 Hex Nut
1/2” Battery Terminal (Not Supplied)
1 or 2 Gauge Wire - Strip Approx 3/4 in.
MALE LUG ASSEMBLY
Install between flat washer & lock washer
