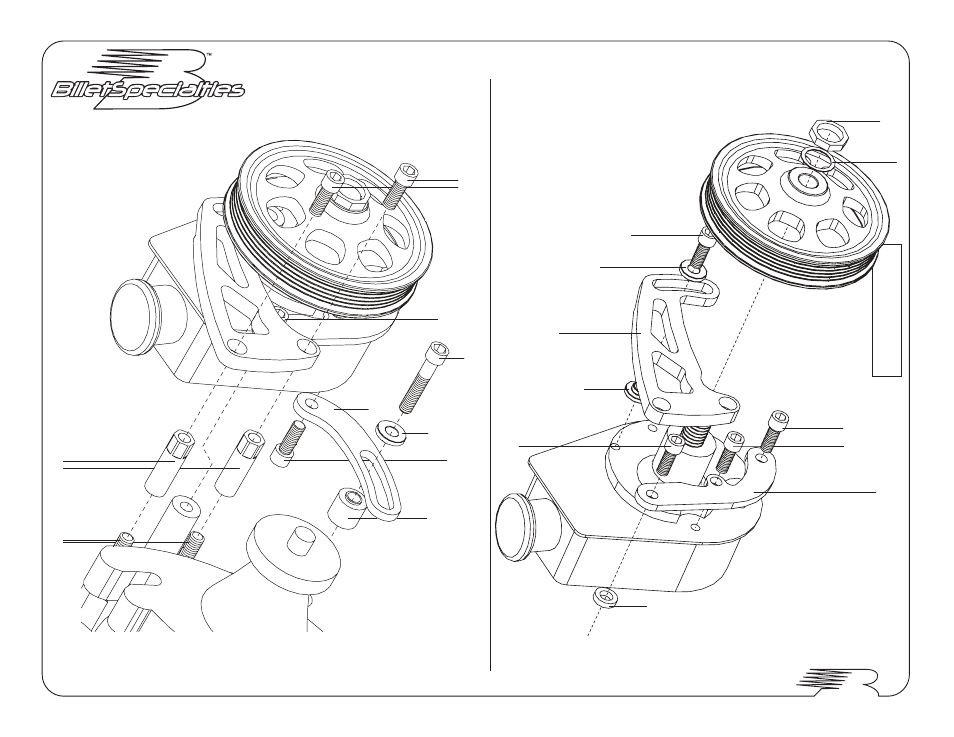

FM0130PC SBC Power Steering Bracket
3/8-16 x 2-1/2" Threaded Stud
1-1/2" Spacer Nut
Hex End Out
3/8-16 x 3/4" S.H.C.S.
Thru Rear Bracket
To Pump
*3/8-16 x 1"" S.H.C.S. Thru Steel Bracket
To W
ater Pump
(see below)
3/8-16 x 1-1/4" S.H.C.S.
Thru Bracket & Spacers
To Block
3/8-16 x 3/4" S.H.C.S.
Thru Bracket
To Spacer Nut
Do not install top bolt if installing kit with
A/C
Rear Steel Bracket
3/8 " Slide Spacer
3/8" Rear Spacer
Length 21/32"
3/8-16 x 3/4" S.H.C.S. To Power Steering Pump
3/16" Load W
asher
Thrust W
asher
Power Steering Pulley Nut
3/8-16 x 1" S.H.C.S. To Power Steering Pump
Billet
Aluminum
Power Steering Bracket
3/8" Slide Spacer
3/8" Slide Spacer
*3/8-16 x 1" S.H.C.S. To W
ater Pump
Three-Hole Steel Bracket
To W
ater Pump
Keyway power steering pulley shown. Press-on pulley does not require thrust washer or nut.
