#10120 - Alternator / Air Compressor Bracket Mounting Instructions
Billet Specialties • 500 Shawmut Avenue • La Grange, Illinois 60526• Tech 708-588-0505 • Fax 708-588-7181
K
V
B
V
K
R
U
I
O
I
U
R
U
D
V
N
S
F
V
J
C
E
U
M
G
H
Q
Q
V
L
J
T
P
P
V
J
A

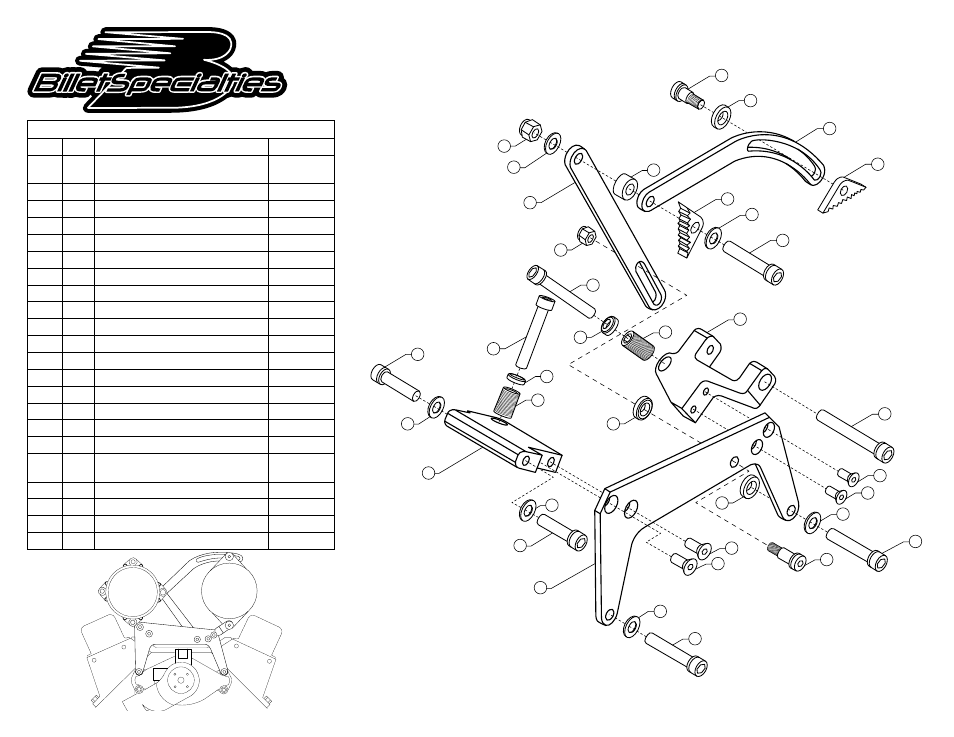

BILL OF MATERIALS
ITEM QTY. DESCRIPTION SIZE
A 1
Air Compressor / Alternator
Main Bracket
B 1 Air Compressor Mounting Bracket
C 1 Alternator Mounting Bracket
D 1 Air Compressor Adjustment Arm
E 1 Alternator Adjustment Arm
F 1 Air Compressor
G 1 Alternator
H 1 3/8”-16 Socket Head Cap Screw 2-3/4”
I 2 3/8”-16 Socket Head Cap Screw 2-1/2”
J 3 3/8”-16 Socket Head Cap Screw 2”
K 2 3/8”-16 Socket Head Cap Screw 1-1/2”
L 1 3/8” Shoulder Bolt 5/8”
M 1 3/8” Shoulder Bolt 3/8”
N 1 3/8”-16 Nylon Lock Nut
O 1 5/16”-18 Nylon Lock Nut
P 2 5/16”-18 Flat Head Cap Screw 3/4”
Q 2 1/4”-20 Flat Head Cap Screw 5/8”
R 2
Threaded Spacer Bushing
(5/8”-18 Thread)
5/8” x 1”
S 1 Aluminum Spacer 3/4” x .400”
T 1 Aluminum Spacer 3/4” x .203”
U 4 Stainless Load Washer 3/4” x 3/16”
V 6 Stainless Load Washer 3/4” x .060”
AC
COMPESSOR
ALTERNATOR
