Billet Specialties Brake Pedal 199460 - Manual

1967 - 1969 Camaro
Brake Pedal Pad - Automatic
#199460 / #199465
1. Remove rubber pedal pad.

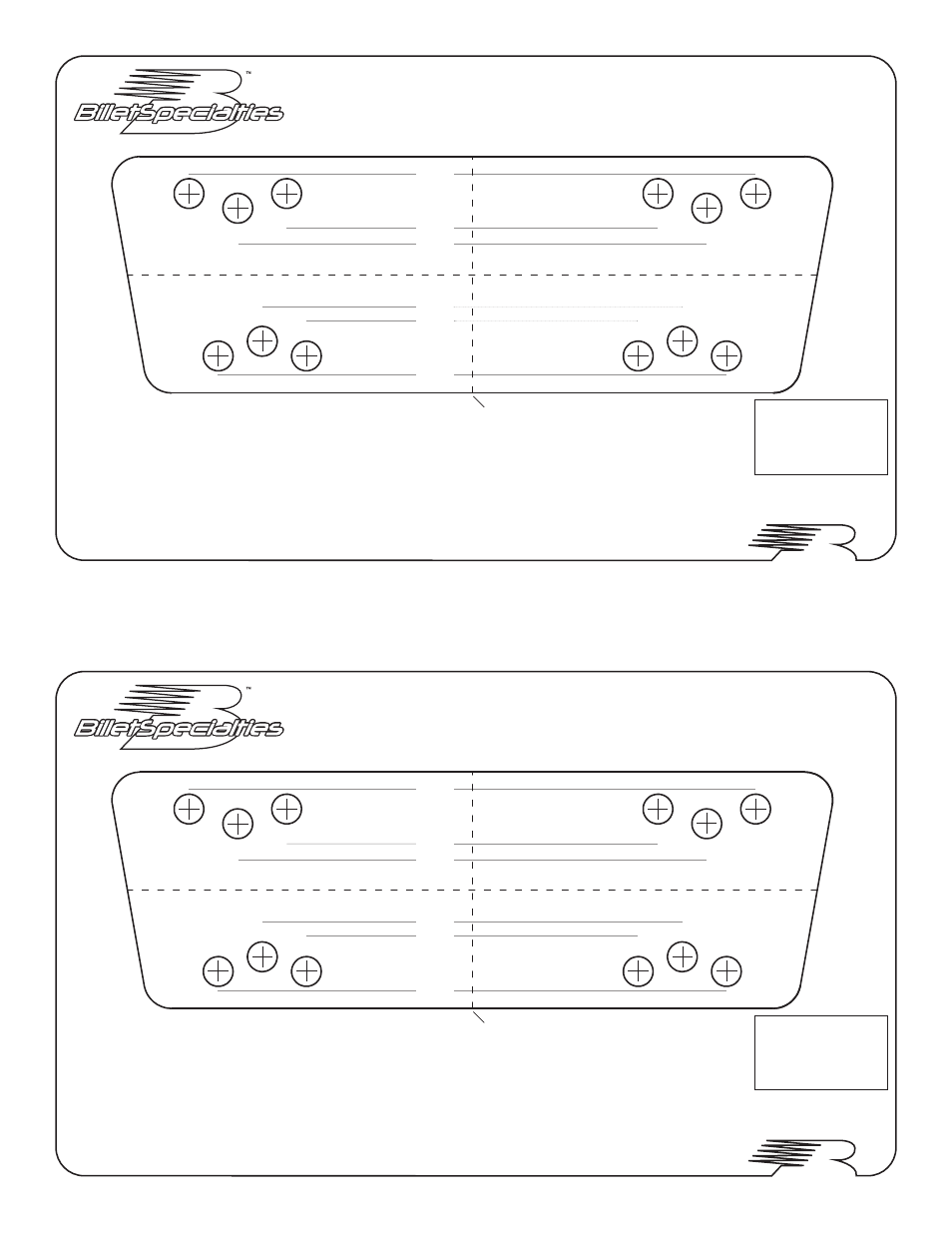

2. Cut out template and apply spray adhesive to the back, align template with brake pedal and attach.
3. Center punch the pedal in the center of the appropriate holes as marked on the template.
4. Drill 3/32” pilot holes in each center punch, follow by drilling with 5/16” drill bit.
5. Install 1/4-20 socket set screw in appropriate holes in billet pedal cover, install billet pedal cover on
pedal then attach washer and lock nut. Tighten firmly by alternating turns at each nut with 7/16” wrench.
Tools Needed:
• 3/32” drill bit
• 5/16” drill bit
• 7/16” wrench
• Center punch
• Spray adhesive
Applications:
A: Camaro
B : Firebird
C: Chevelle
A A
A A
B B
B B
C C
C C
5.060”
4.538”
2.962”
3.750”
3.315”
4.188”
Align center lines with center
of factory pedal mounting surface
1967 - 1969 Camaro
Brake Pedal Pad - Automatic
#199460 / #199465
1. Remove rubber pedal pad.
2. Cut out template and apply spray adhesive to the back, align template with brake pedal and attach.
3. Center punch the pedal in the center of the appropriate holes as marked on the template.
4. Drill 3/32” pilot holes in each center punch, follow by drilling with 5/16” drill bit.
5. Install 1/4-20 socket set screw in appropriate holes in billet pedal cover, install billet pedal cover on
pedal then attach washer and lock nut. Tighten firmly by alternating turns at each nut with 7/16” wrench.
Tools Needed:
• 3/32” drill bit
• 5/16” drill bit
• 7/16” wrench
• Center punch
• Spray adhesive
Applications:
A: Camaro
B : Firebird
C: Chevelle
A A
A A
B B
B B
C C
C C
5.060”
4.538”
2.962”
3.750”
3.315”
4.188”
Align center lines with center
of factory pedal mounting surface
Due to multiple sources used by
the auto manufacturer, some
pedals may have to be trimmed
for the pedal cover to fit properly.
Due to multiple sources used by
the auto manufacturer, some
pedals may have to be trimmed
for the pedal cover to fit properly.
