Starter Kit and User Manual for the HelloDevice 1300
15
Take the following steps to set up the IP address, using the HelloDevice Utility Software.
Setting an IP address with the HelloDevice Utility Software:
(1) Run the HelloDevice Utility shortcut icon on the desktop of your PC and select [IP Set-up] menu click
on the [IP Set-up] window. This window provides the BOOTP server function for IP address setup (([BootP
Start], [BootP Stop]), trace function ([IP Find]) and IP address initialize functions ([IP Clear]).
(2) Press the [Add] button and enter the BOOTP database record as shown below.

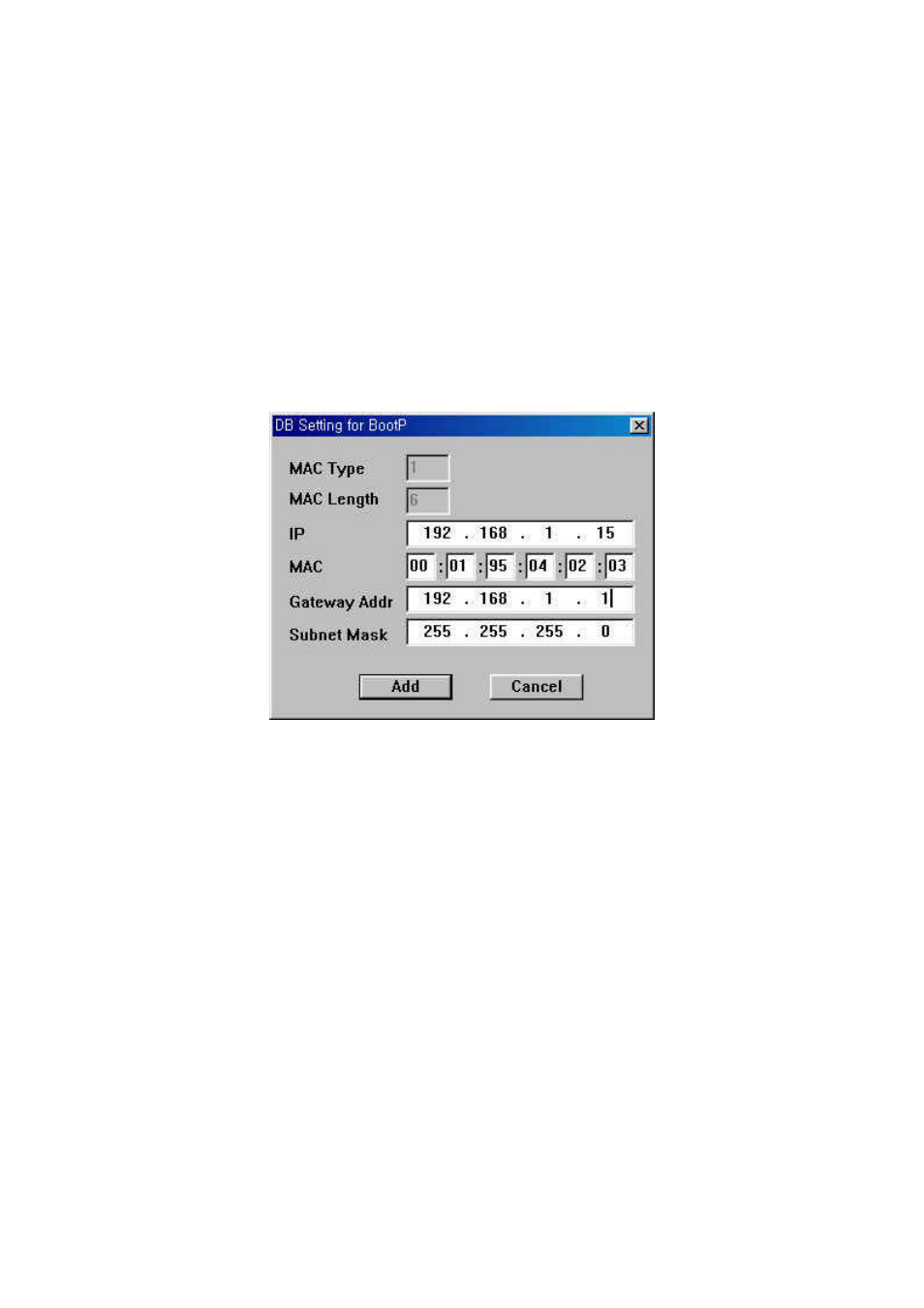

Figure 4.7 BOOTP Database Record Input Window
Enter MAC address, IP address of HelloDevice. 1 and 6 should be always entered for H/W address type and
H/W address length items for Ethernet. MAC address is printed on the sticker on the Ethernet controller chip of
HelloDevice main board. Figure 4.7 shows an example setting of 00:01:95:04:02:03 MAC address and
192.168.1.15 IP address. Since the BOOTP function of HelloDevice is working by using broadcast message, you
don’t have to enter gateway address and sub net mask.
(3) Click [Add] button to finish database editing.
The records entered in step (2) are added to the IP database.
(4) Launch the functions of BOOTP by pressing the [BootP start] button.
The HelloDevice Utility will then operate as a BOOTP server. Note that the message on the [Status] bar will
change from “Monitoring” to “Listening BOOTP request”.
If HelloDevice Utility gets BOOTP request from a certain HelloDevice which does not exist in BOOTP DB
