Ocean Optics FL-400 User Manual
Fl-400 flame-resistant fiber probe, Installation and operation instructions, Description
F400-20CM-HT-01-201106
1
FL-400 Flame-resistant
Fiber Probe
Installation and Operation Instructions
Description

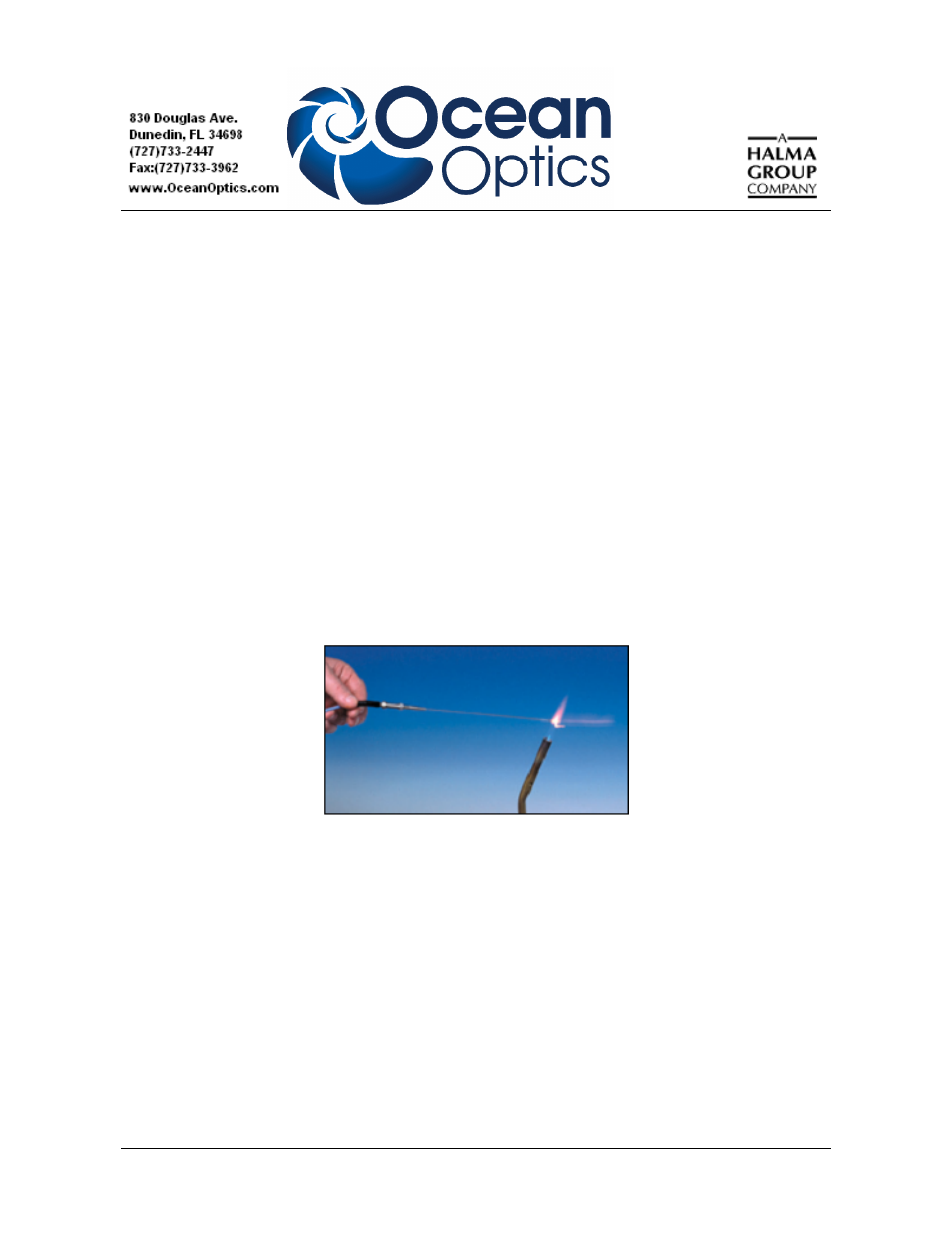

The FL-400 Flame-resistant Fiber Probe is a heat-resistant fiber optic probe that couples to Ocean
Optics miniature fiber optic spectrometers to measure in situ emission spectra of samples such as
dissolved metals and high-temperature plasmas.
The FL-400 is a high-temperature 400-
m gold-jacketed UV-VIS optical fiber in an 8” nickel sleeve.
The tip of the FL-400 probe functions in environments up to 700
C.
Parts Included
FL-400 probe
Wire loop for emission measurements of dissolved materials
SMA Splice bushing (21-02)
An optical fiber is not included but is required for operation. We recommend the P400-2-UV-VIS
Optical fiber.
