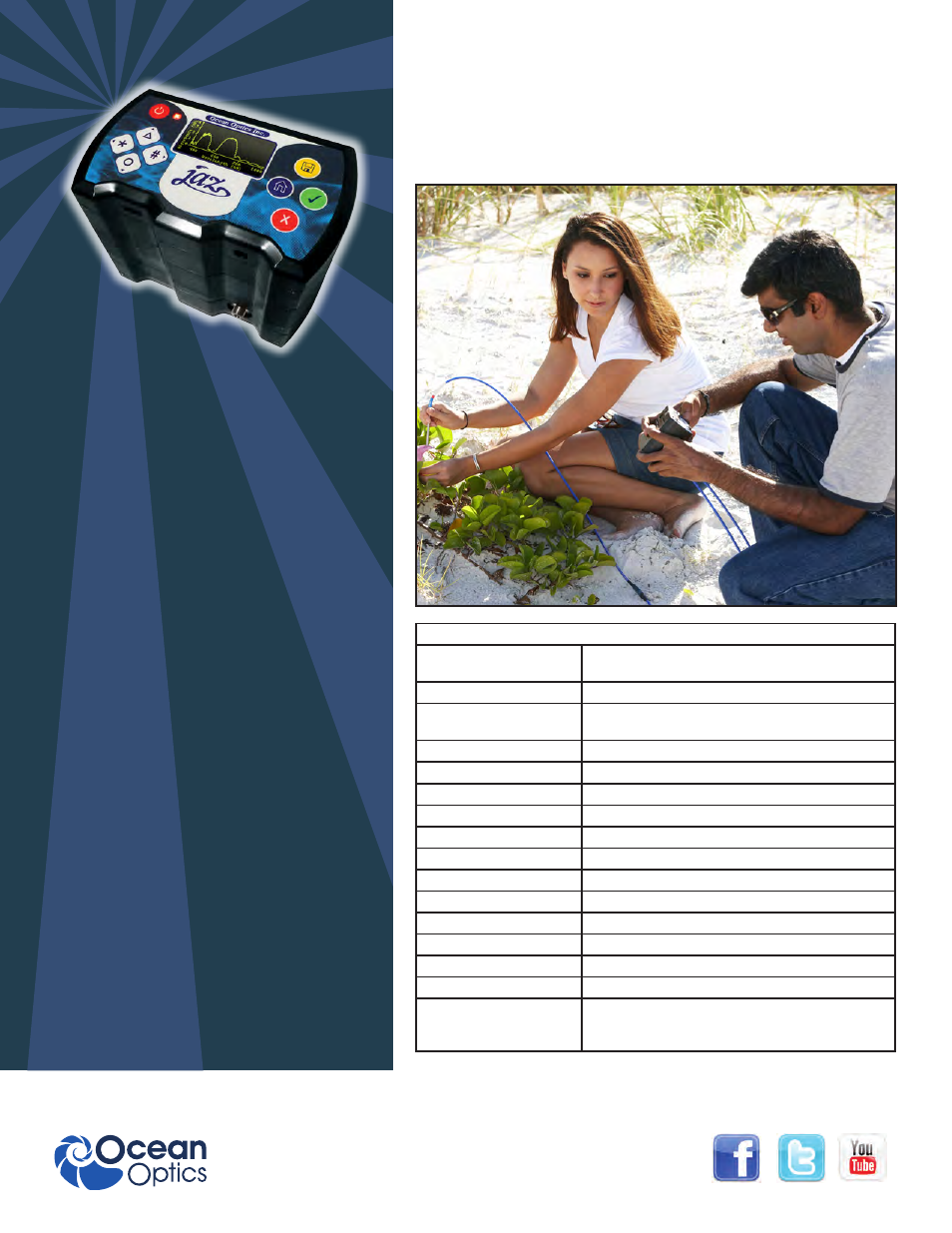

Ocean Optics Jaz User Manual
Now, you’re going places
Get Out There!
Get real-time data in a variety of settings with
Jaz—the handheld, field-portable analytical
instrument from Ocean Optics. With it, the world is
your laboratory!
This modular, stackable community of smart-
sensing instruments offers you unparalleled
versatility and breaks down barriers by enabling
you to work more easily in virtually any
environment.
It’s Changing the World
- Powerful microprocessor and onboard display
allow you to measure without a PC
- Powerful spectral analysis in a convenient,
handheld unit
- Stackable and autonomous instrument modules
allow you to customize Jaz to your changing
application needs
- Ethernet connectivity plus SD card data storage
capability make remote operation a snap
- Expansion up to 8 channels allows
simultaneous, multi-point measurement
- Changeable display orientation makes
operation convenient in both lab and field
- Up to 8 hours of battery life — ideal for field
work
Jaz
Now, You’re Going Places
www.oceanoptics.com | [email protected]
+1 727-733-2447
SPECTROMETERS | SAMPLING ACCESSORIES | WORLD CLASS SERVICE
Specifications
Physical:
109.2 mm x 63.5 mm x 57 mm LWH; 352 g (JAZ-
COMBO only)
Detector:
Sony ILX511B linear silicon CCD array (200-1100 nm)
Wavelength range:
Grating dependent (extended-range grating available
for 200-1025 nm coverage)
Optical resolution:
~0.3-10.0 nm FWHM
Signal-to-noise ratio:
250:1 (at full signal)
A/D resolution:
16 bit
Dark noise:
50 RMS counts
Dynamic range:
8.5 x 10
7
(system); 1300:1 for a single acquisition
Integration time:
870 µs to 65 seconds (20 s typical maximum)
Stray light:
<0.05% at 600 nm; <0.10% at 435 nm
Sensitivity:
75 photons/count at 400 nm; 41 photons/count at 600 nm
Fiber optic connector:
SMA 905 to 0.22 numerical aperture optical fiber
Electronics connector:
19-pin MHDMI connector
Channels supported:
Up to 8 spectrometers
OEM integration supported:
Yes
Power options:
Wall transformer (+5VDC); Power over Ethernet
(Class III PoE provides 12 Watts); USB; integrated
battery module (JAZ-B); Solar charger
