Ocean Optics MHDMI to RS-232 Kit User Manual
Page 3
MHDMI to RS-232 Kit Instructions
030-40000-000-01-201109
3

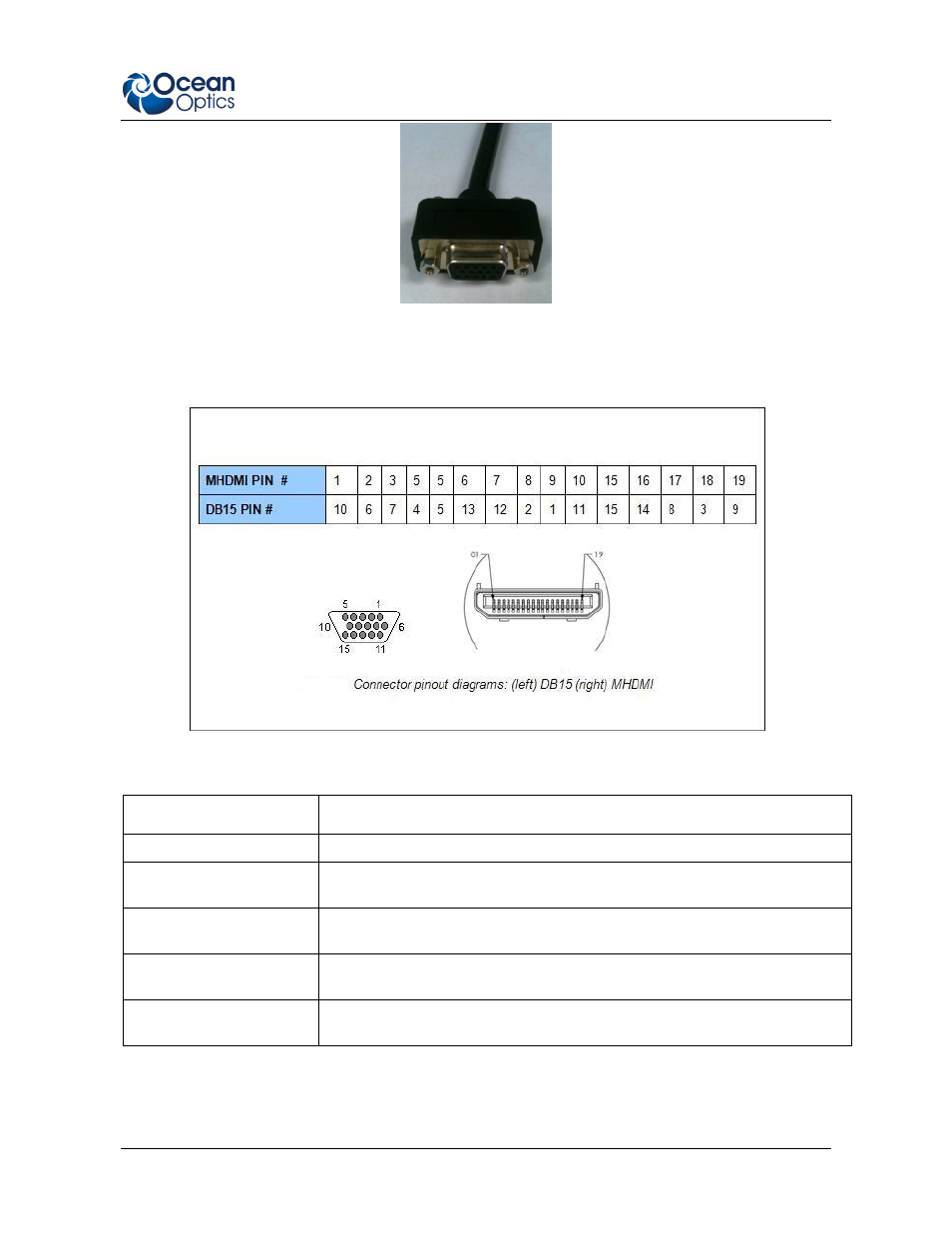

DB-15F Connector
JAZ-CBL-DB15 Cable Pinouts
JAZ-CBL-DB15 Cable Specifications
Specification
Value
Cable length
305 mm (12 inches)
Internal conductors
15 x 26 AWG stranded copper
Rating: 30 Volts
Jacketing
PVC, black
Rating: 300 Volts, VW-1
Connectors
Molded, latching 19-pin MHDMI
Molded, superthin SVGA HD15, female
DB15 Mounting
2 x 4-40 thumbscrews
2 x 4-40 hex standoffs
