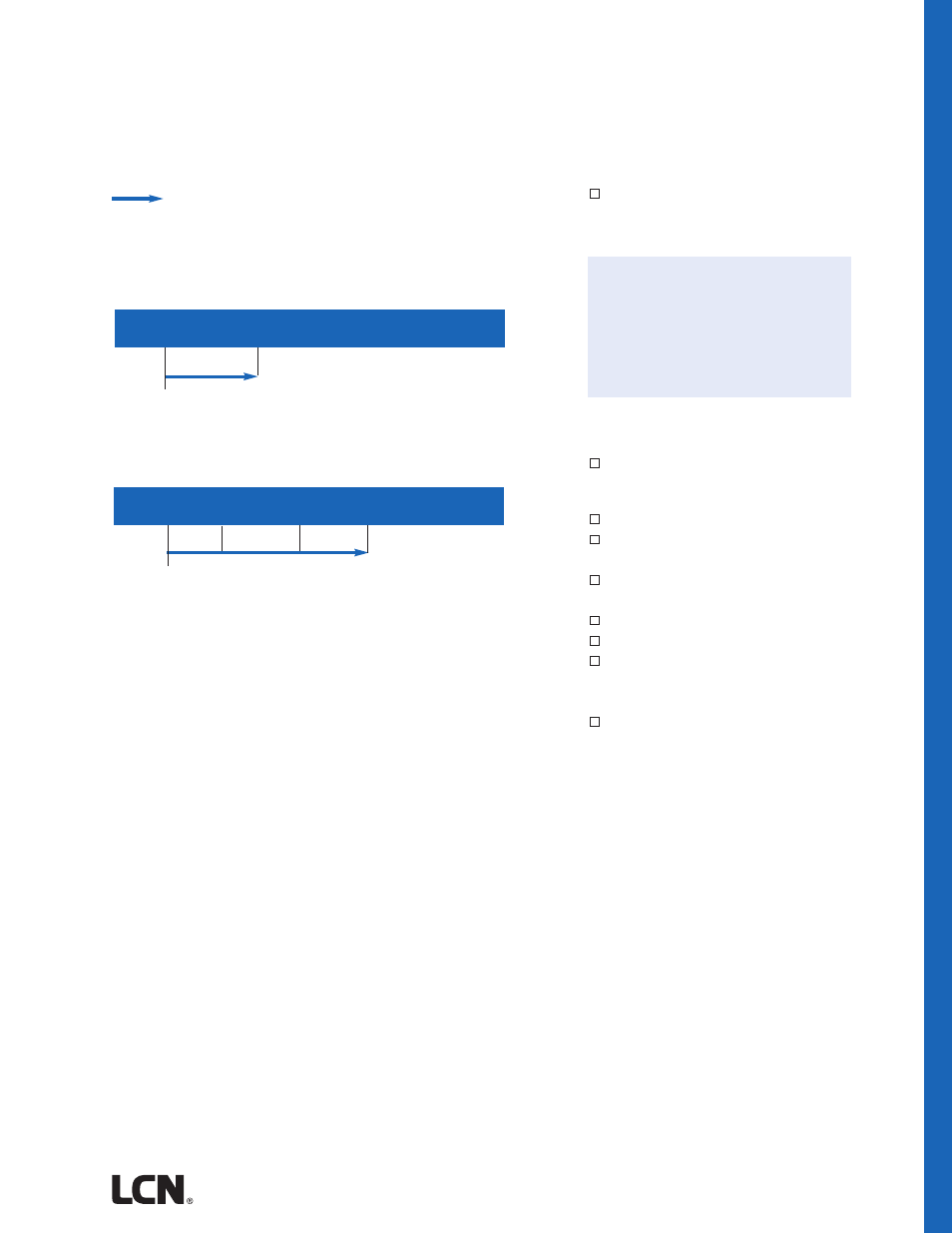

TABLE OF SIZES
Non-sized 4640 series cylinder is adjustable from size 2 through size 5 and is
shipped set to size 3. Closing power of 4640 Series closers may be increased
50%.
Indicates recommended range of door width for closer size.
size 5
size 3 size 4 size 5
4642(CS)
INTERIOR DOOR WIDTH
LCN 4640 SERIES
OR
DE
RI
NG
IN
FO
RM
AT
IO
N
HOW-TO-ORDER
4640 SERIES CLOSERS
1. SPECIFY FINISH.
Standard Powder Coat ____________
Aluminum, Dark Bronze, Tan, Statuary,
Light Bronze, Black, Brass.
Closer will be shipped with:
- STANDARD CYLINDER,
- STANDARD METAL COVER,
- REGULAR ARM, and
- WOOD and MACHINE SCREW PACK,
unless options listed below are selected.
CLOSER OPTIONS
CYLINDER ASSEMBLY
4640CS (concealed on/off switch)
(separate key switches suggested)
FINISH
Custom Powder Coat (RAL) _________
Plated Finish, US ________________
ARM
Long (LONG)
SCREW PACK
TB*, Wood & Machine Screw (TBWMS)
TORX Machine Screw (TORX)
TB* & TORX Machine Screw (TBTRX)
*Specify door thickness if other than 1 3/4”.
SPECIAL TEMPLATE
ST-_________
4642(CS)
EXTERIOR (and VESTIBULE) DOOR WIDTH
36"
914mm
42"
1067mm
36"
914mm
38"
965mm
48"
1219mm
54"
1372mm
Minimum
Door
Width
Minimum
Door
Width
NOTE: Minimum door width 36” (914 mm)
